HF leakdown test is a Piece of Big Steenkeeng SHTUFF but here is

Shop, Garage and Tools

  1. 67Dart273

    67Dart273 FABO Gold Member FABO Gold Member

    Messages:
    45,095
    Likes Received:
    12694
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    1:05 PM
    ..........how I hope to fix it

    Bought one of these awhile back thought "how bad can it be.?" Paid what, 40 bucks?

    Cylinder Leak-Down Tester


    Looks GREAT, right?

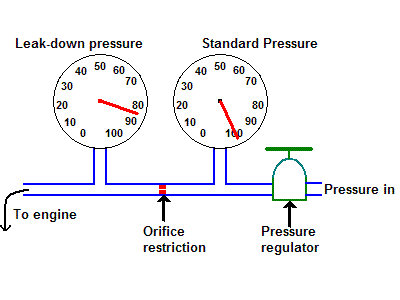

    HERE IS the problem. If you look up the developmental history of leakdown testers, they are pretty much based on a regulated (80psi or) 100psi supply and a 40 thousands orifice. A regulator and 100psi gauge, along with a few fittings is all you need

    TURNS OUT the HF thing DOES NOT operate at (80 or)100psi. It operates somewhere around >????15 or so psi and the BIG PROBLEM is that the regulator is unstable at that setting IE it "pressure creeps." This means your readings vary, and it's also a PITA to reset

    As an added Chineseoated bonus, the instructions are just plain incorrect. Whoever wrote them has "no idea."

    Wiki:

    Leak-down tester - Wikipedia

    So "whut be" de plan? Well easy, I think. The basics are all there.....a gauge(s), fittings, regulator, nice box, etc

    You don't REALLY need two gauges, you really only need one on the cylinder side of the orifice. So the plan IS to attempt to duplicate the .040" orifice "somewhat" remove and plug the port for the 100psi gauge and then move THAT gauge to the cylinder side, leaving the "calibrated" gauge on the shelf "somewhere."

    Then the 100psi gauge will read "reciprical" IE you set it unconnected for 100, then 80psi would be 20%, 40 psi would be 60% leakeage, etc. Of course it's relative

    I actually built one years ago, but the fittings, gauge, and regulator have been used for "other stuff."

    I think I'll search around and see if I can BUY an actual orifice, Wiki says:

    "In the United States, FAA specifications[1] state that engines up to 1,000 cu in (16 L) engine displacement require an 0.040 in (1.0 mm) orifice diameter, 0.250 in (6.4 mm) long, 60-degree approach angle. The input pressure is set for 80 psi (550 kPa), and 60 psi (410 kPa) minimum cylinder pressure is the accepted standard."

    Got that? Neither do I LMAO

    From the Wiki page, even tho they mention 80psi, this seems to be set for 100


  2. jimjimjimmy

    jimjimjimmy lobsterman FABO Gold Member

    Messages:
    4,464
    Likes Received:
    1255
    Joined:
    Nov 2, 2010
    Location:
    p. e. i.
    Local Time:
    5:05 PM
    got the same one it is damn near useless . princess auto stopped selling them because they were junk and nearly everyone sold came back says my friend that works there .

  3. 67Dart273

    67Dart273 FABO Gold Member FABO Gold Member

    Messages:
    45,095
    Likes Received:
    12694
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    1:05 PM
    I think I can fix this, "we will see" LOL

    • Like Like x 1
    • SLOPAR72

      SLOPAR72 Well-Known Member

      Messages:
      2,225
      Likes Received:
      1614
      Joined:
      Jan 5, 2016
      Location:
      Richmond, VA.
      Local Time:
      4:05 PM
      Youtube is my friend before just about any purchase at HF. Sometimes it's good. Other times it's bad and ain't no third direction past that....

      JW

    • 67Dart273

      67Dart273 FABO Gold Member FABO Gold Member

      Messages:
      45,095
      Likes Received:
      12694
      Joined:
      Oct 14, 2010
      Location:
      Idaho
      Local Time:
      1:05 PM
      I just ordered two of these .040 carb jets. I realize fully they are not "FAA spec" but they are more accurate than a twist drill. If I cannot tap threads for them, I'll ream out the housing and JB one in place. "One for a spare" LOL

      NEW OLD STOCK EVINRUDE JOHNSON BRP OMC 327745 .040 DIA. ORIFICE IDLE JET 0327745 | eBay

      Just tore it apart. I didn't fuss with it too much but the "orifice" which is part of the main housing, is around .1--.125" Again, this thing does not operate at the recommended 80-100 psi, but rather somewhere around 15

      Last edited: May 21, 2017
    • RustyRatRod

      RustyRatRod Bla de blizhibliz de blatde blizi bla bla FABO Gold Member

      Messages:
      64,629
      Likes Received:
      37580
      Joined:
      Jun 7, 2010
      Location:
      Georgia
      Local Time:
      4:05 PM
      If anybody can make chicken salad outta chicken shit, you can do it.

      Last edited: May 21, 2017
      • Thanks! Thanks! x 1
      • 67Dart273

        67Dart273 FABO Gold Member FABO Gold Member

        Messages:
        45,095
        Likes Received:
        12694
        Joined:
        Oct 14, 2010
        Location:
        Idaho
        Local Time:
        1:05 PM

        LOL I don't know if that's a cut or a compliment

        Last edited by a moderator: May 21, 2017
      • Johnny Dart

        Johnny Dart Well-Known Member

        Messages:
        7,953
        Likes Received:
        2498
        Joined:
        Nov 30, 2006
        Location:
        So Cal
        Local Time:
        1:05 PM
        So you are going to spend money on a big piece of steeekeeng shtuff to make a bigger piece of steeekeeng stuff ?
        This ought to be good. Lol

      • SGBARRACUDA

        SGBARRACUDA ROY FABO Gold Member

        Messages:
        17,513
        Likes Received:
        6171
        Joined:
        Dec 7, 2006
        Location:
        PLANT CITY FL. and PERRY GA.
        Local Time:
        4:05 PM
        As has been stated many times in the past. "You get what you paid for"

      • jos51700

        jos51700 Well-Known Member

        Messages:
        5,324
        Likes Received:
        2022
        Joined:
        May 24, 2009
        Location:
        Bel-Ray
        Local Time:
        3:05 PM
        You might be able to make that work, but why?

      • 67Dart273

        67Dart273 FABO Gold Member FABO Gold Member

        Messages:
        45,095
        Likes Received:
        12694
        Joined:
        Oct 14, 2010
        Location:
        Idaho
        Local Time:
        1:05 PM

        Why not? Most of it is there, all it needs is one 100psi gauge which is there, and the proper orifice. A Matco is 160 bucks

        If you have a better idea, "bang for the buck" by all means let's hear it

        • Thanks! Thanks! x 1
        • Abodybomber

          Abodybomber Breaking street machines , since 1983.....:) Legendary Member

          Messages:
          31,576
          Likes Received:
          10467
          Joined:
          May 21, 2011
          Location:
          Arroyo grande ca
          Local Time:
          1:05 PM
          This is engineering ..and hot rodding, at it's best...Why spend the money, when you have the necessary tools & knowledge? Not everything works correctly, out of the product box.Open ,your minds....

          • Agree Agree x 2
          • Like Like x 1
          • 67Dart273

            67Dart273 FABO Gold Member FABO Gold Member

            Messages:
            45,095
            Likes Received:
            12694
            Joined:
            Oct 14, 2010
            Location:
            Idaho
            Local Time:
            1:05 PM
            OK I see some improvement.........



            Top photo you can see the tap sticking out of the body of the unit on the right. The .040 jet I bought off ebay is at far far right. Turns out they have 8-32 threads. The original HF "orifice" is somewhere around 1/8" So all I had to do is ream the "orifice" out to tap drill size, and run an 8-32 tap through it. I used the original HF 0-100 gauge for "inlet" and was going to use one of my compression gauges, but it's 0-300. Then I remembered an old refrigeration manifold, and robbed a low side gauge.

            This may not be "completely" accurate. With the plug hole hose plugged in, leaving it "open" and adjusting the inlet gauge for 80psi, the "low" gauge still indicates 8-10 psi. Seems like it should be zero which would be 100% leakage.

            Nevertheless it IS a baseline and IS way WAAAAAAYYYY more resettable than the original setup

            Last edited: May 25, 2017
          • mopowers

            mopowers Well-Known Member

            Messages:
            4,926
            Likes Received:
            2008
            Joined:
            Feb 15, 2006
            Location:
            West Sacramento, CA
            Local Time:
            1:05 PM
            -Nice! Would drilling out the 0.040" orifice a little larger lower the 8-10 closer to zero?

          • 67Dart273

            67Dart273 FABO Gold Member FABO Gold Member

            Messages:
            45,095
            Likes Received:
            12694
            Joined:
            Oct 14, 2010
            Location:
            Idaho
            Local Time:
            1:05 PM

            I'm going to wait and see if I can scare up a better gauge for the inlet. They don't track that close, and even though the refrigeration gauge is pretty old, I would trust it over the new HF one. Seems to me that as the blue one climbs past 80 when setting it up, the HF one gets "high" in readings pretty quickly.

            The spec for these for 5" bore and smaller is 40 thou. Even thou this is not a "spec" orifice, I'll leave it as is.

            The thing is, you cannot really drill out orifices. The drill marks cause turbulence, which disrupts the flow. I would bet that a high velocity system with a drilled orifice might even flow LESS than the original 040

          • 67Dart273

            67Dart273 FABO Gold Member FABO Gold Member

            Messages:
            45,095
            Likes Received:
            12694
            Joined:
            Oct 14, 2010
            Location:
            Idaho
            Local Time:
            1:05 PM
            Today's "minor improvement" I dug through some of my old HVAC stuff and came up with no less than 5 low side gauges, one of which the needle is fallen off, but could be reglued. I checked them all against the refer gauge on the tester and found one that exactly matched pressure between about 60 and 100. "Last improvement," lol Also the engine head hose for this thing makes a GREAT air fitting to bust stuck heads loose!!1

            • Like Like x 1
