hooker 5208 fenderwells tire clearance

[Rapid Robert]

considering a set. is there a tire dia limit to be aware of/other potential interference areas? thank you for your time. RR



[Private Idaho]

considering a set. is there a tire dia limit to be aware of/other potentieal interference areas? thank you for your time. RR

Yes there will be a limit to the tire dia. and likely width also. Lowering the car will likely not be possible. No free lunch on early A's.
There just ain't much room in these cars.



[AbodyTim]

I ran unknown fenderwells on my second '65. Started with F70-14s on stock Rally's at stock ride height with very little contact. Switched to 7" US slots on the front with F70s and got quite a bit of rub.



[rumblefish360]

Now there’s a lesson. Wheel off set! Break out the ruler and a flat iron to start measuring.



[memike]

@66340SEDAN knows these problems, he runs hooker super comp on his 340 66 Valiant.



[Slantsix64]

Probably going to need to run a 205 60 or 215 60 series, as mentioned back space is key



[ValiantRacing]

I have those headers on my 65, with a 26 tall tire, and no rubbing



[pishta]

205/60R14's rub a tad. Now big block fenderwells in a 65 A are a real challenge!



[66340SEDAN]

@66340SEDAN knows these problems, he runs hooker super comp on his 340 66 Valiant.

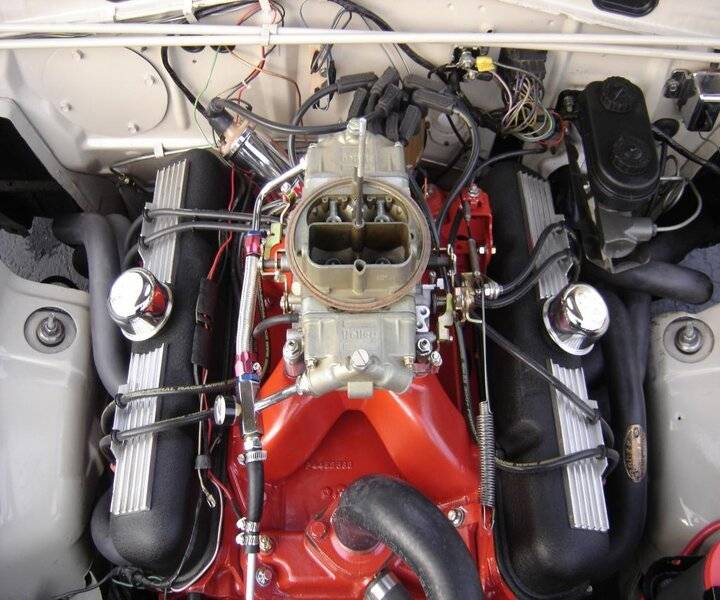

No problems on my car, headers fit awesome, they don’t hang low under the car and have more clearance underneath than most headers. I run skinny tires up front, 5.60-15 and have had 165R15 also, never tried anything wide cause it’s not the look I want on my car....my tires don’t come close to rubbing and I have the stance up higher too....love these Hooker headers



[66340SEDAN]

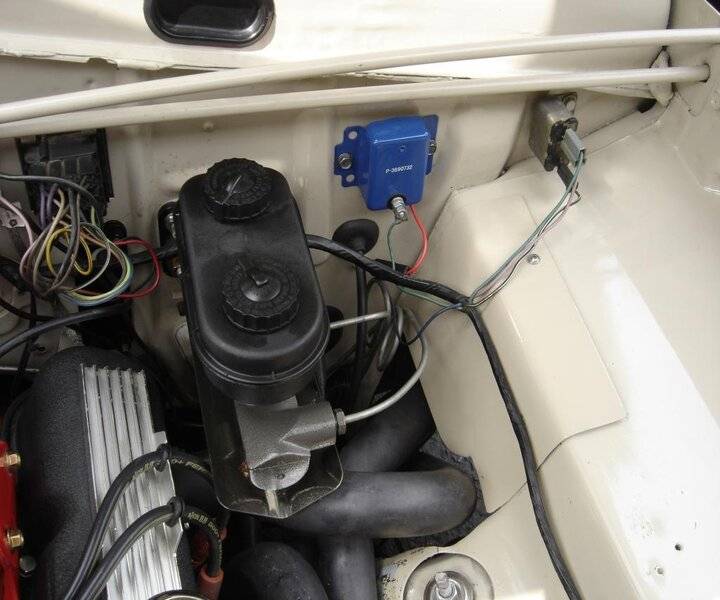

One thing to keep in mind is the Hooker headers come in pieces and slip together during installation...2 pipes go inside the frame rail and 2 go through the wheelwell on passenger side...driver, 3 go outside the frame through the wheel well and 1 inside, they don’t take up a lot of space like other full fenderwall headers do...I’m betting the Hookers probably have more tire clearance.



[AbodyTim]

205/60R14's rub a tad. Now big block fenderwells in a 65 A are a real challenge!

View attachment 1715850996

I have wanted a BB early A since my first '65 Valiant. I drool over the pics I saved of abodyjoe's '64.



[pishta]

we did 2, one had the 4 sp/hack job big block fenderwells pictured and mine had the AT/pro-parts semi fenderwells that were modded to fit the narrow A. same B motor, much cleaner.



[66340SEDAN]

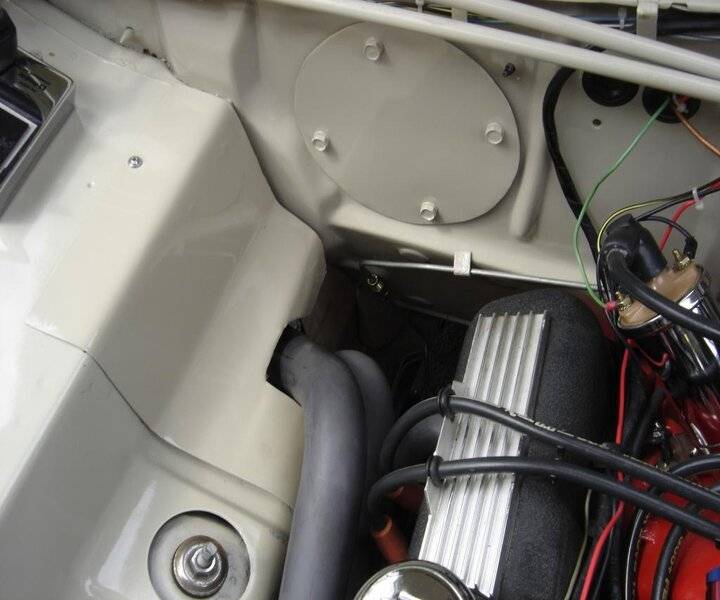

I also made covers for the holes I cut, many people don’t notice they are fenderwall headers
