Needing help on where to place wire harness and regulators

[Daniel Waydick]

I have a 1970 Dodge Dart that way electrically destroyed. I have a complete restored factory harness and need help were to mount voltage regulator, starter relay and all related components. Also under the dash hints for running and mounting. Pictures would be great. Thanks in advance, just joined today.



[krazykuda]

I have a 1970 Dodge Dart that way electrically destroyed. I have a complete restored factory harness and need help were to mount voltage regulator, starter relay and all related components. Also under the dash hints for running and mounting. Pictures would be great. Thanks in advance, just joined today.

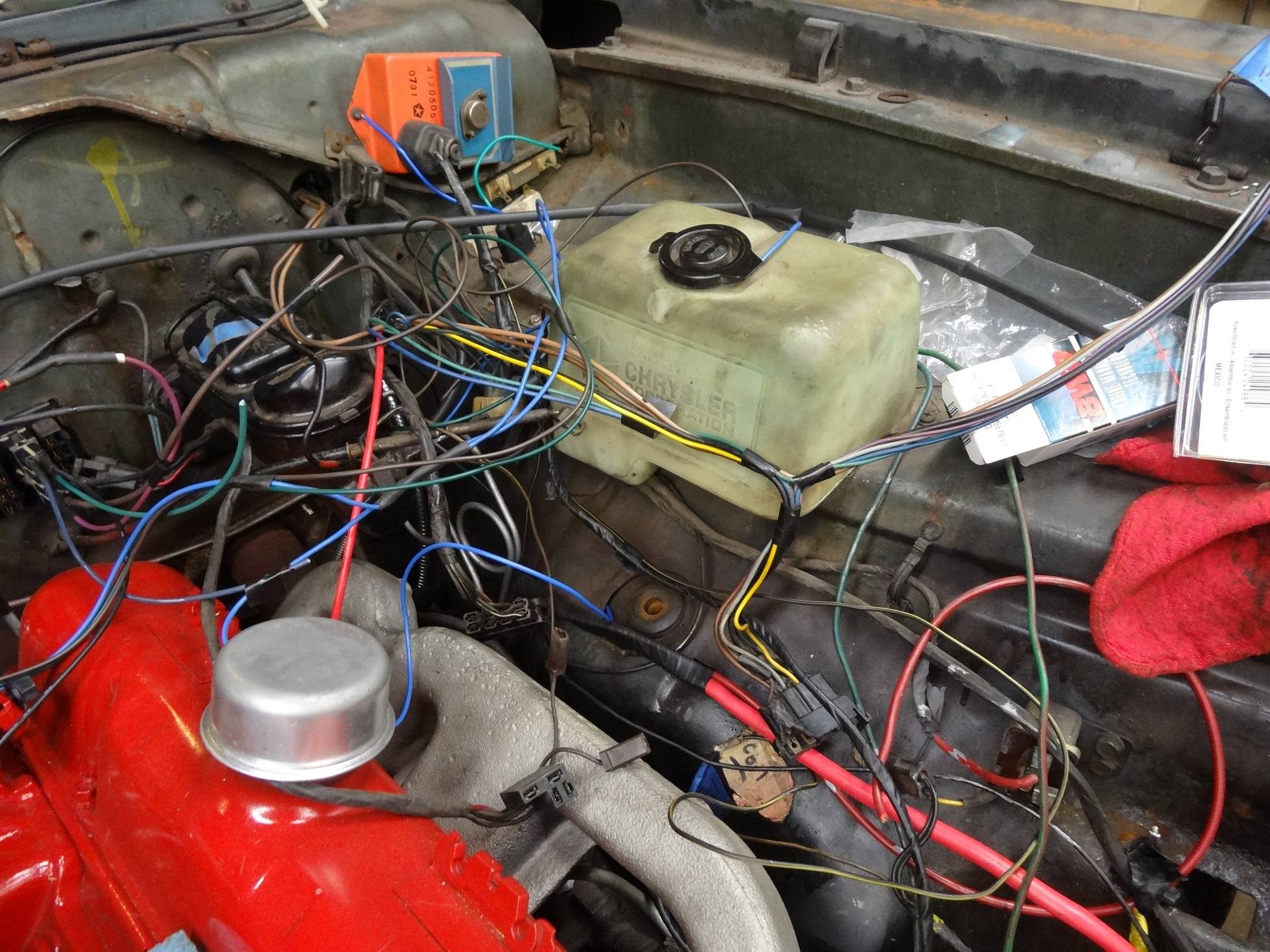

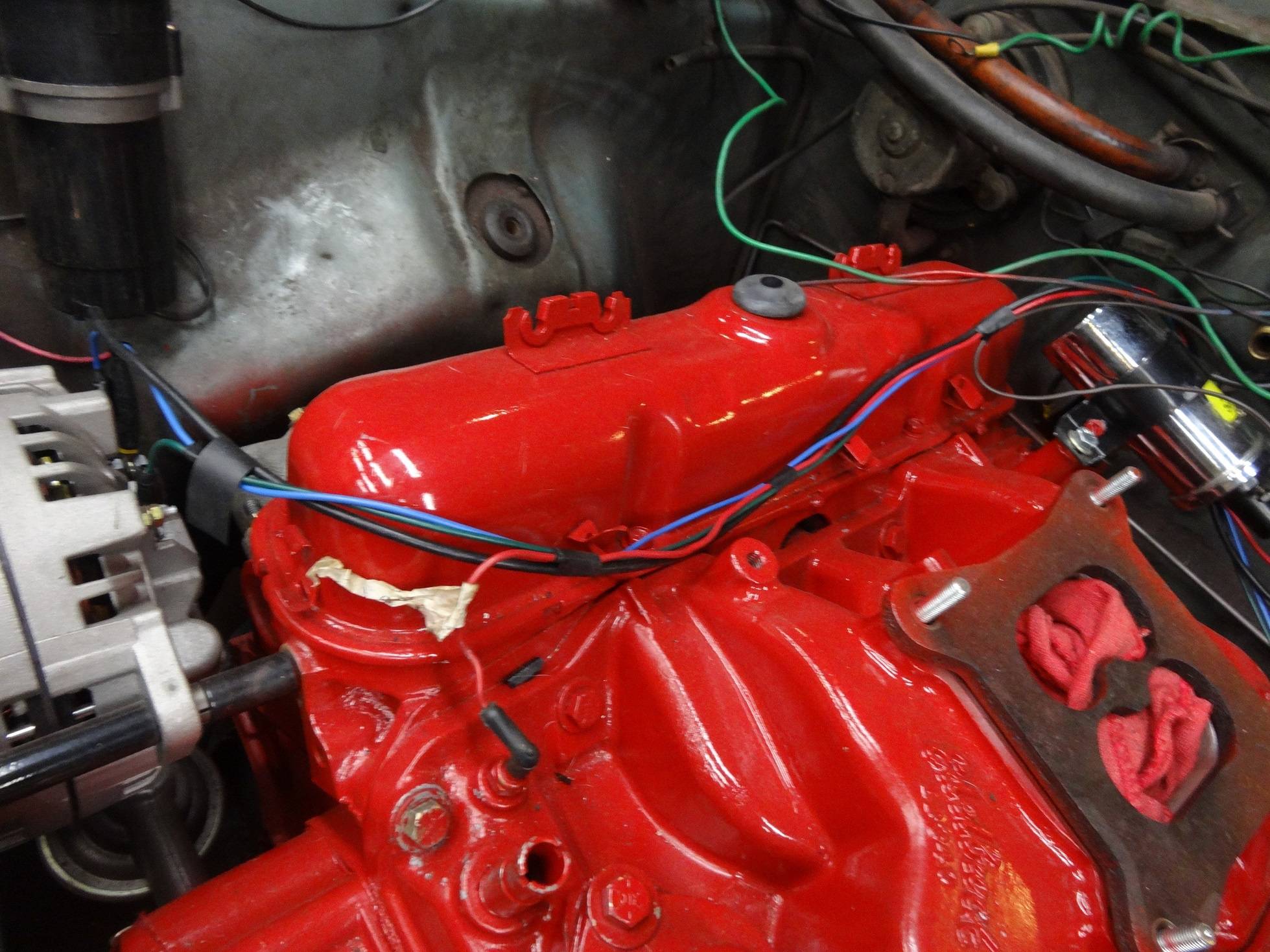

Here's some shots from when we rewired our engine compartment...



[krazykuda]

Welcome to FABO...

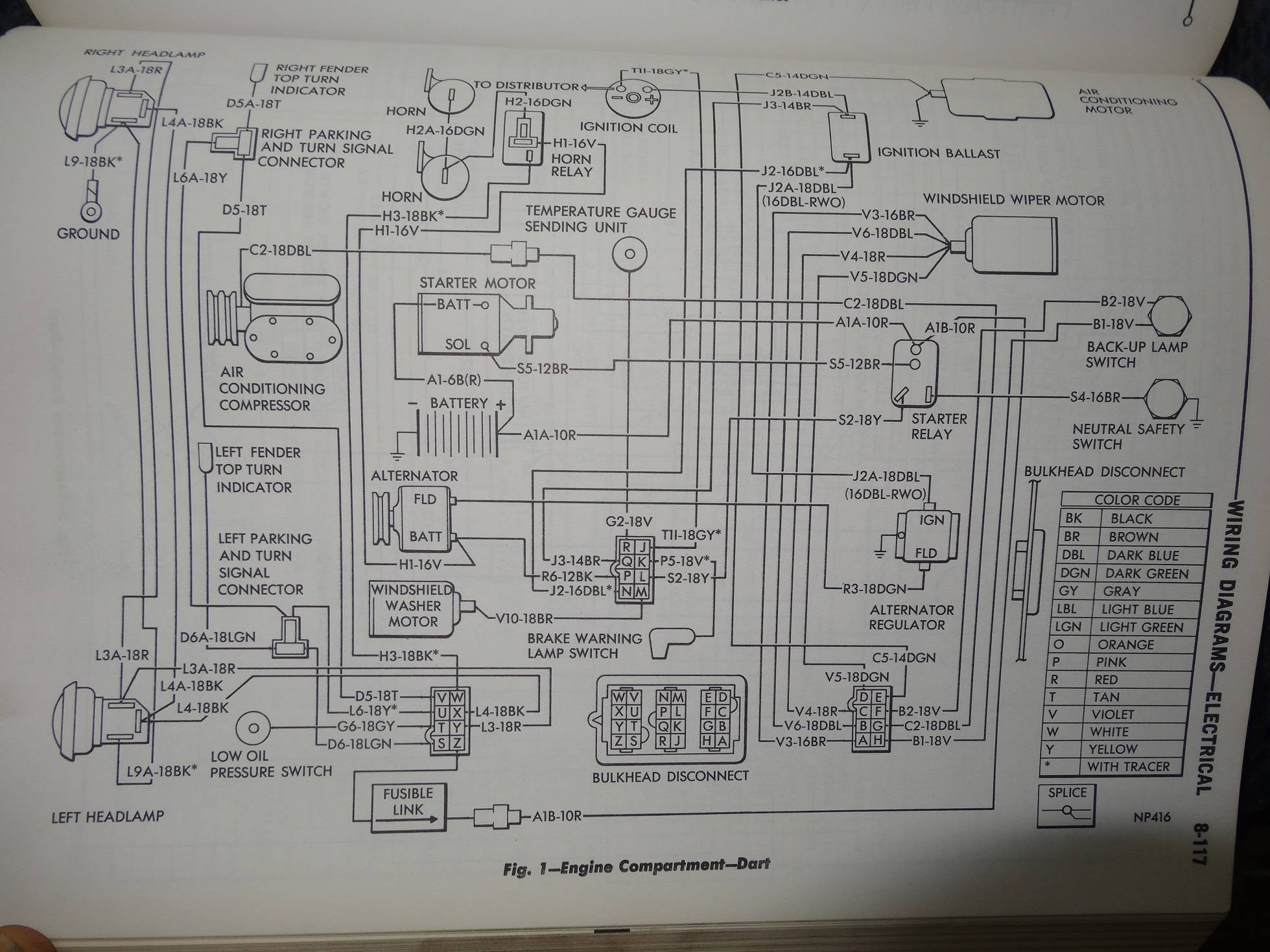

Make sure to go here and download a free service manual for your car. The electrical wiring diagrams are in the back of chapter 8.

MyMopar - Mopar Forums & Information - Service Manuals

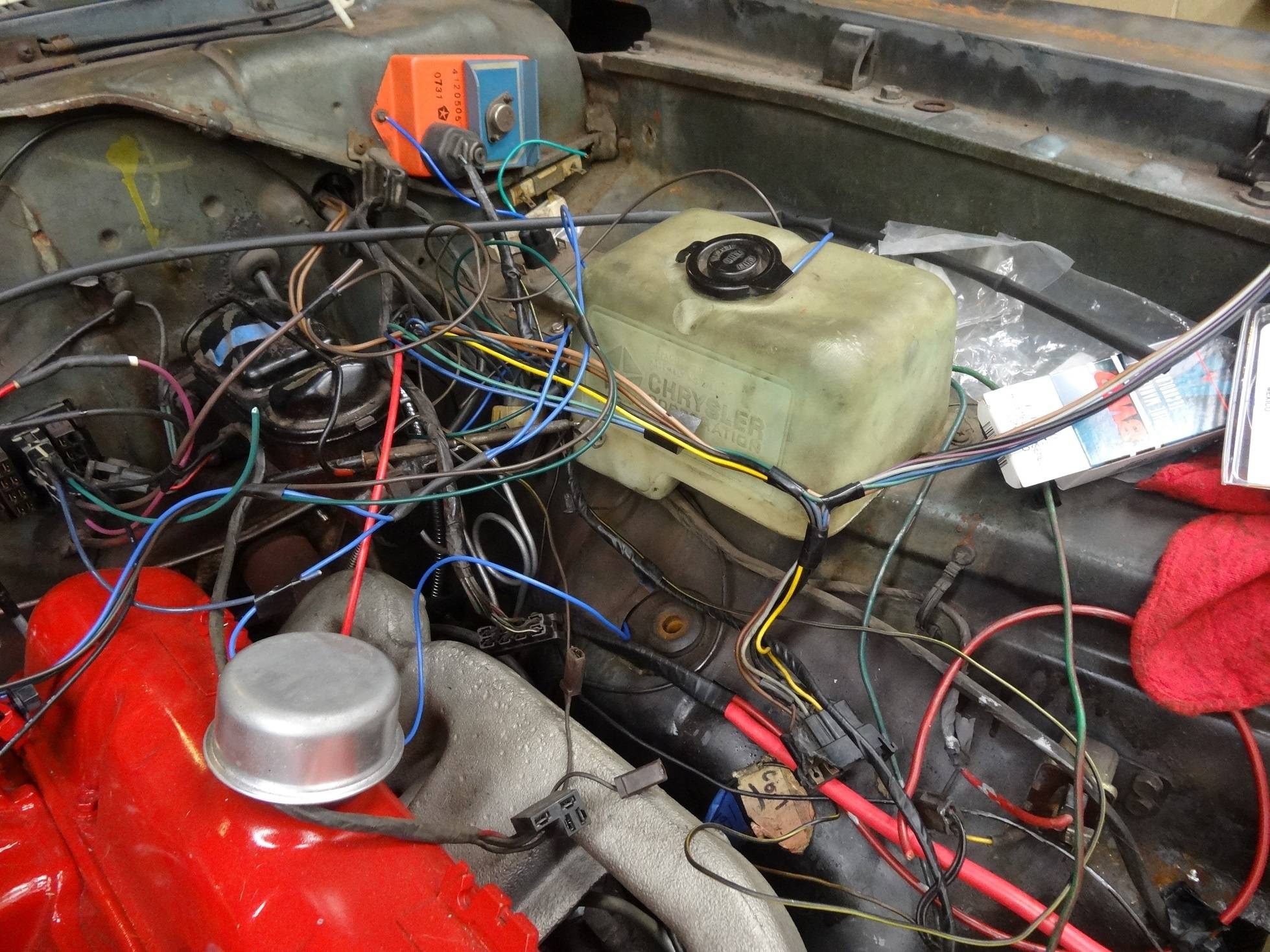

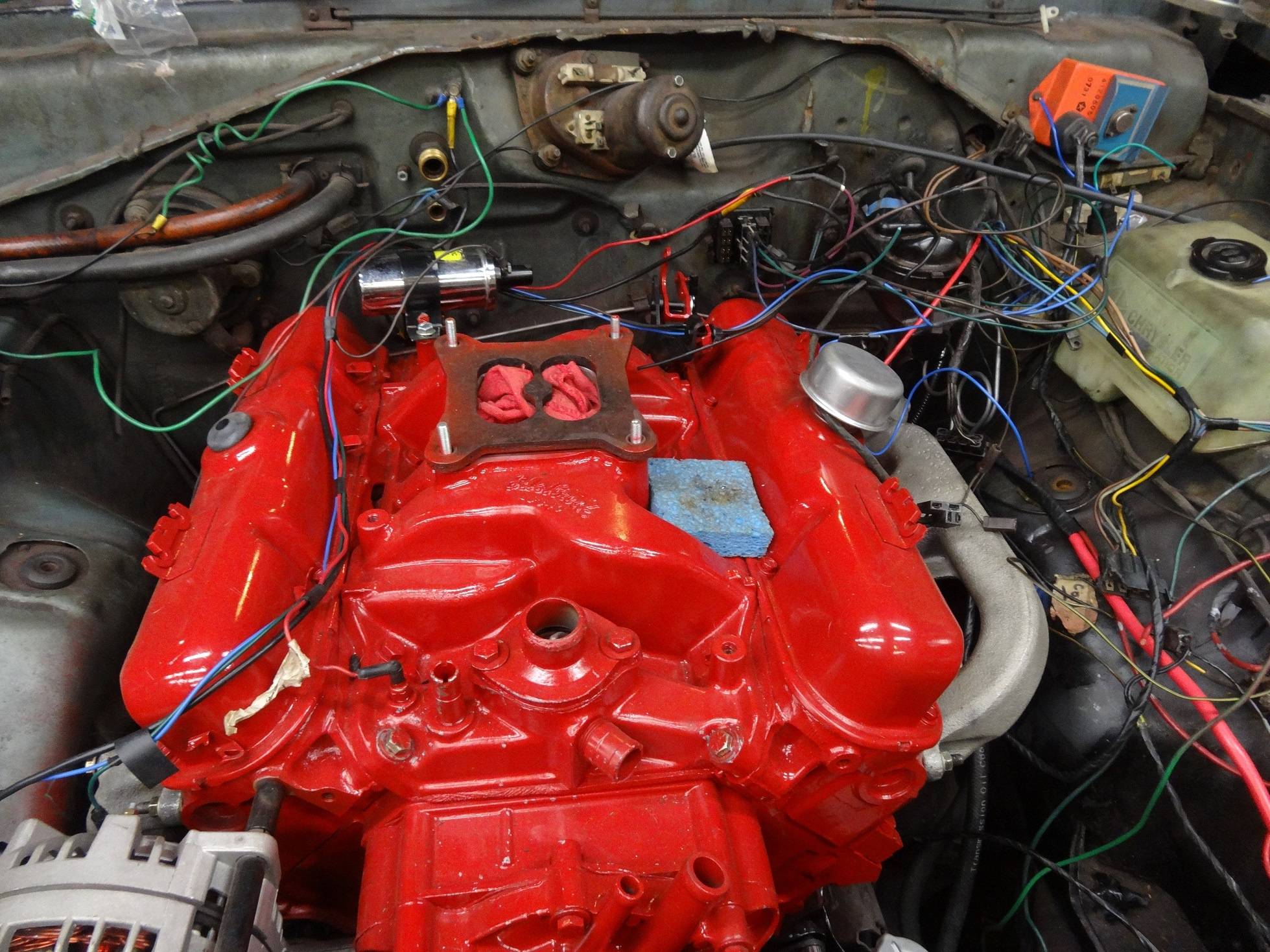

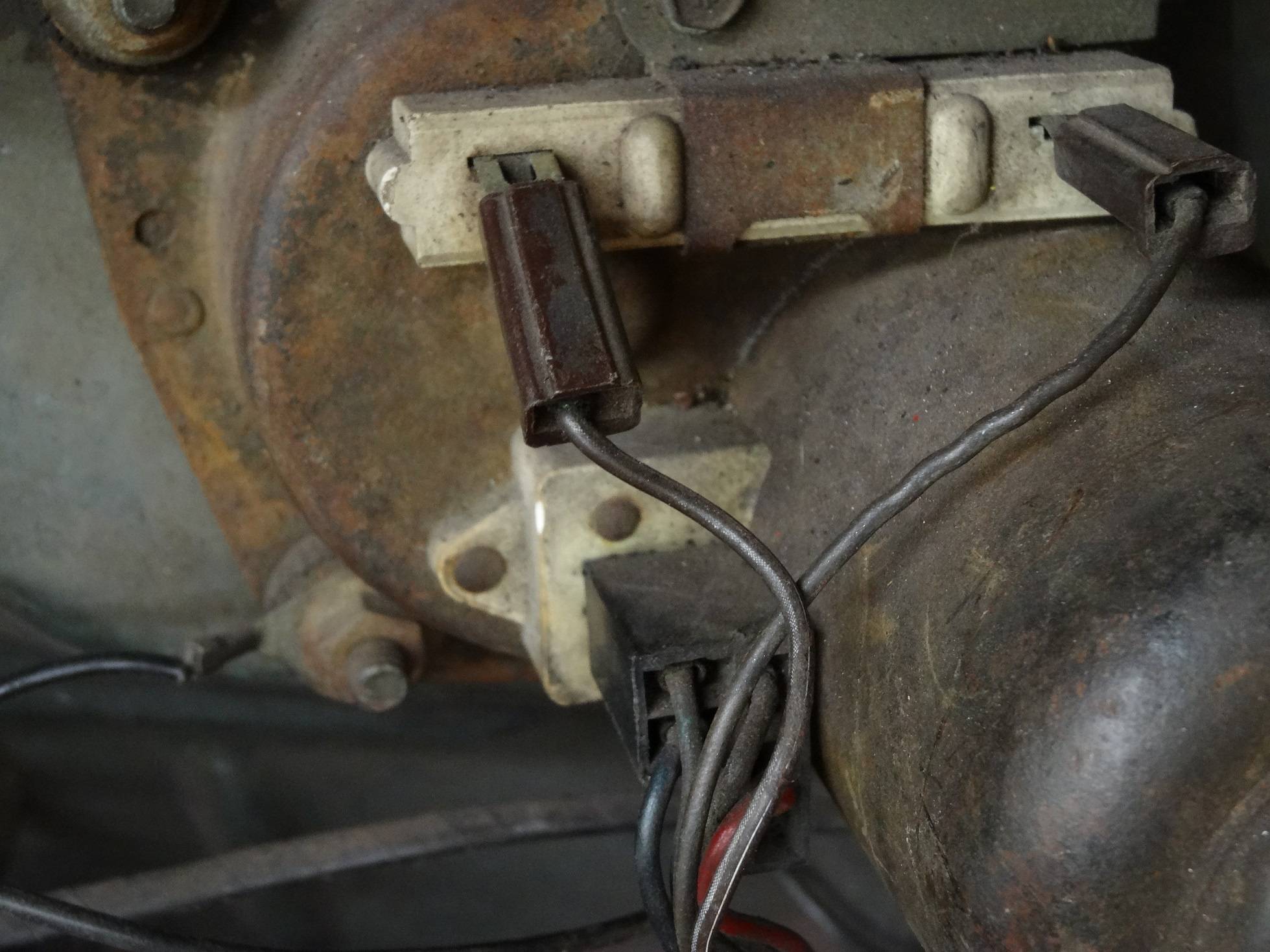

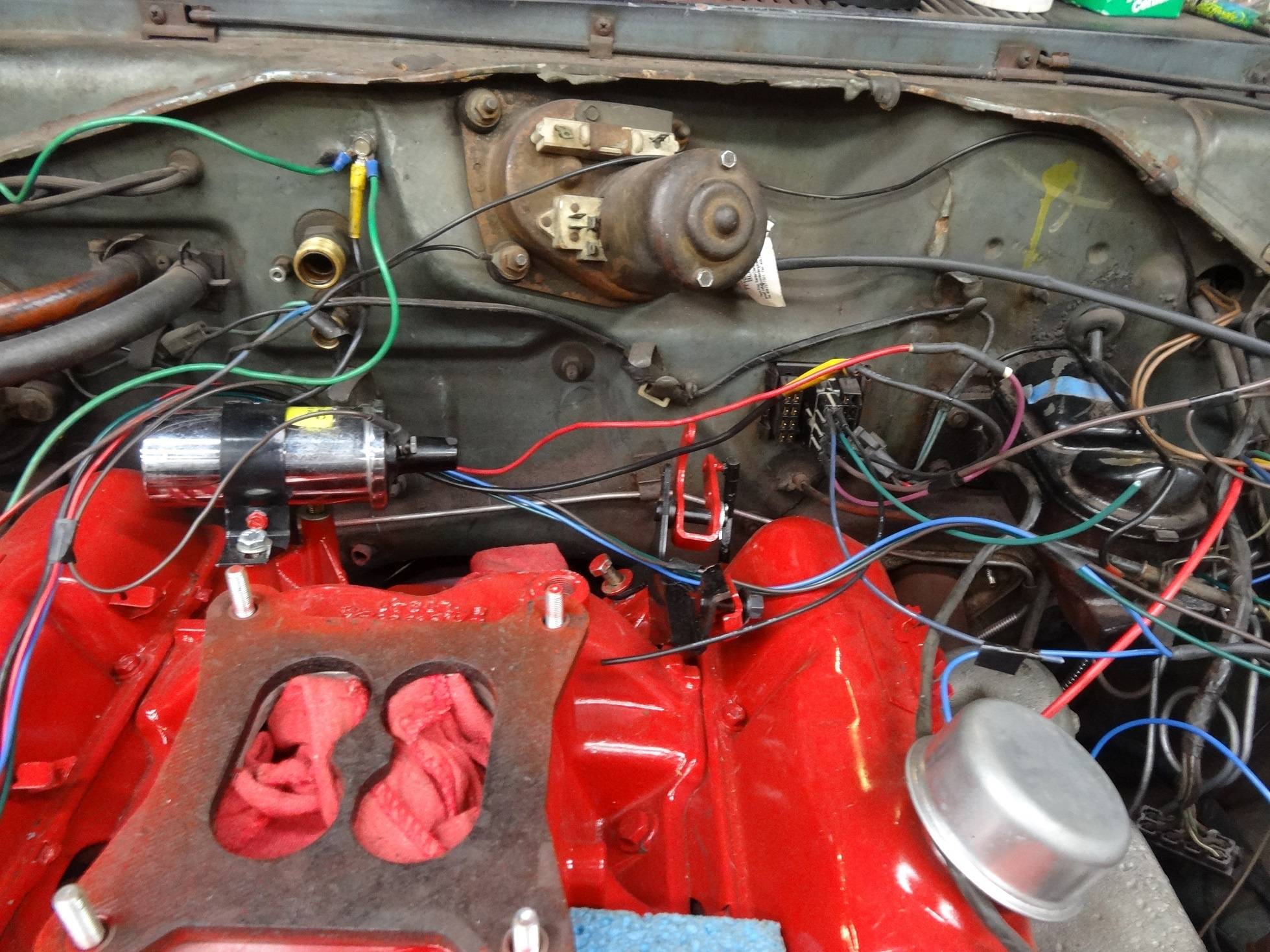

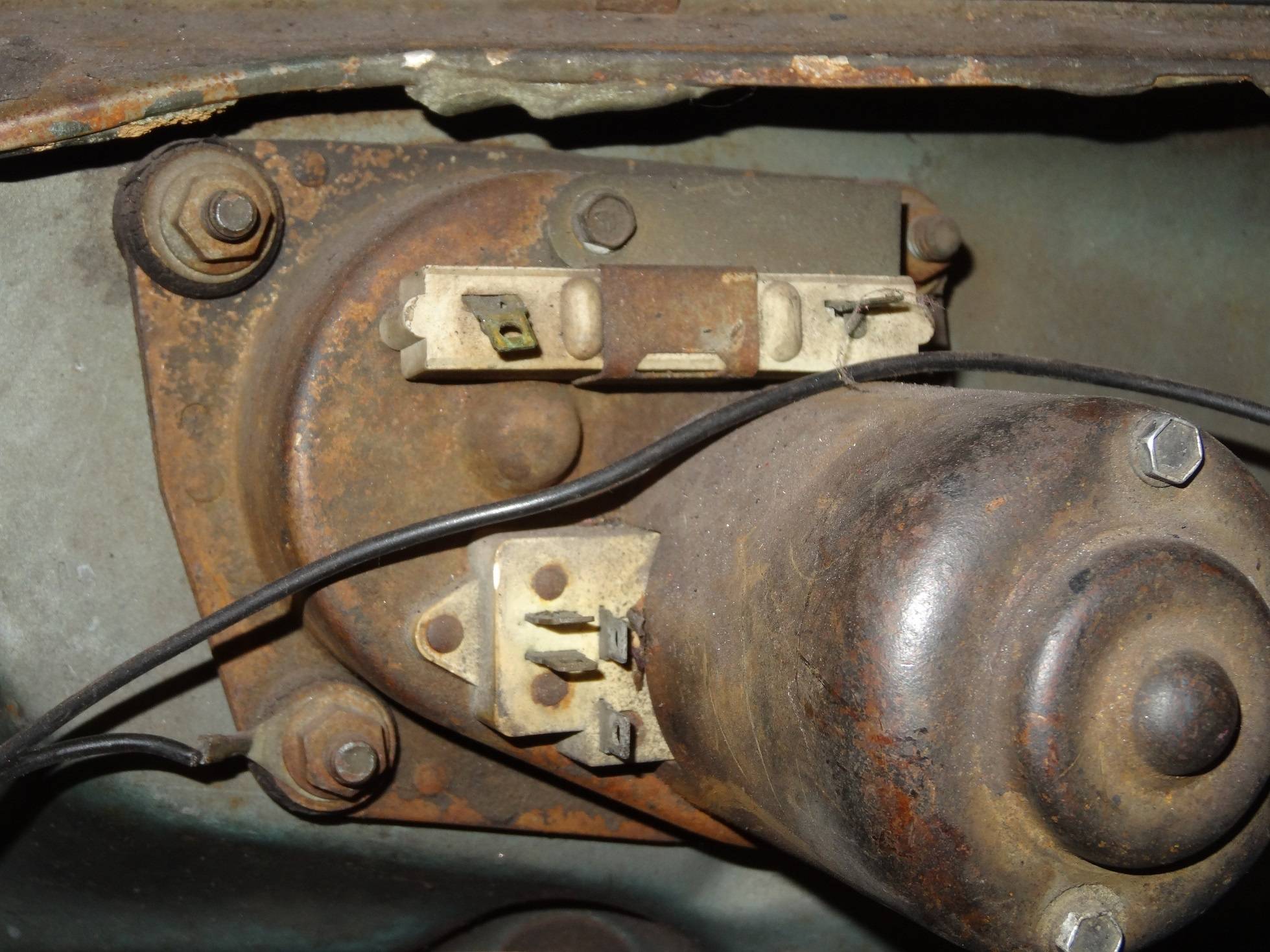

Here are some more random shots:



[Daniel Waydick]

Welcome to FABO...

Make sure to go here and download a free service manual for your car. The electrical wiring diagrams are in the back of chapter 8.

MyMopar - Mopar Forums & Information - Service Manuals


Here are some more random shots:

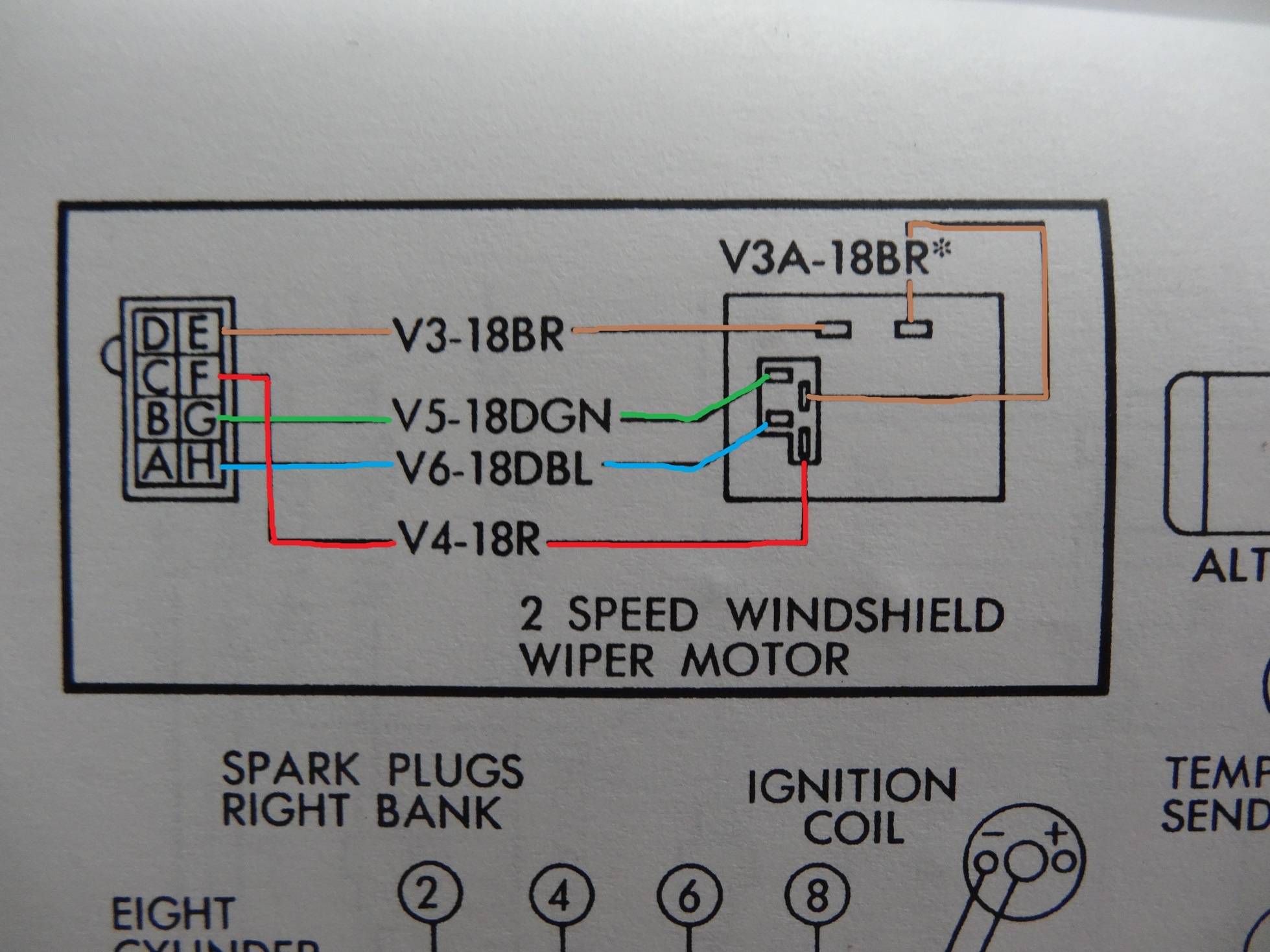

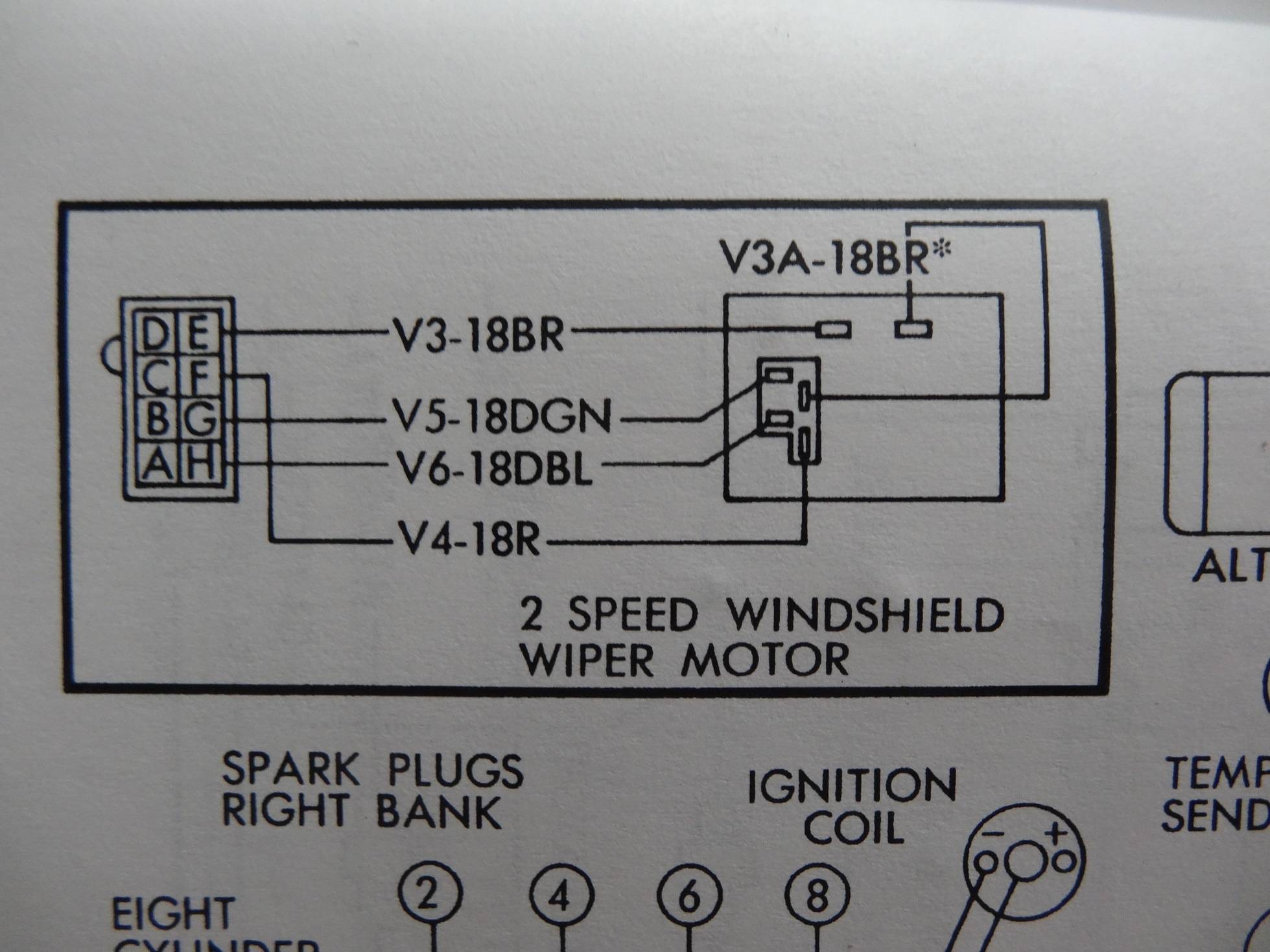

View attachment 1714956318

View attachment 1714956319

View attachment 1714956320

View attachment 1714956321

View attachment 1714956322

View attachment 1714956326

Thanks guys this will help alot. I'll try to figure out how to upload some pic's of my Dart when I get done.
