    Started working on my car again this week after a long break.

    Car is a 1968 Barracuda Notchback (coupe) with what remains of the almost 43 year old GG1 Forest Green Metallic. Car has a "born on date" of May 17th 1968. I bought the car in 1989 for $350.

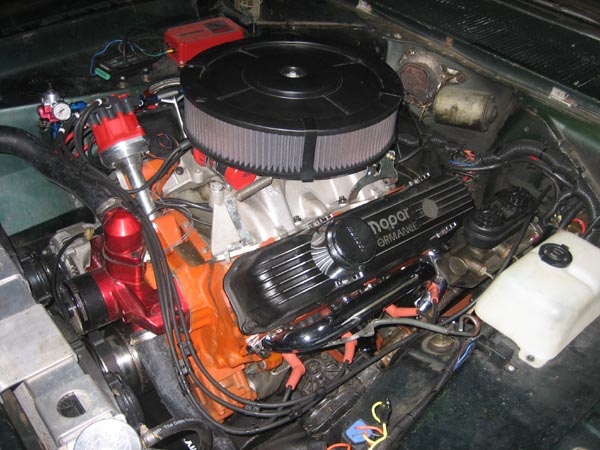

    Engine:
    440 0.030 over, Ross pistons, 0.990 steel pin, Eagle rods, Ultradyne solid lifter cam with ported iron heads. Heads have 2.14I, 1.81E stainless valves. Crane roller rockers. Eddy Performer RPM intake. Barry Grant "Silver Claw" carb. Machine work on the block and head porting was done by Muscle Motors about 11 years ago. Oil pan is Milodon circle track style pan.

    Trans:
    Chrysler crate 727 I picked up in trade about 20 years ago NIB. Converter is a Coan 11".

    Rear:
    8-3/4 housing by Dr. Diff. w/ rear disk and Dutchman axles, picked up about five years ago. Center section was built by Randy's w/ 3.90 and detroit locker.

    Suspension and Brakes, Front:
    0.990 bars, 1-1/4" sway bar. '75 K-frame w/ spool mounts. '75 spindle. 11-7/8" Cordoba rotors, '73 B-body calipers, '85 (RWD) Chrysler New Yorker Fifth Ave master cylinder. Braided steel hose kit.

    Wheels and tires:
    Currently 15x3-1/2" Cragar Superlite II pizza cutters on the front w/ 165R15 tires. Rears are Cragar Superlite II 15x10 6-1/2" backspace with 325/50 BFG Drag Radials. Here is your time warp age reference: I bought the wheels on lay-away at SuperShops pre 1990 while working at a Montgomery Ward as a tire buster. Remember Eddie and Ercie Hill?

    Rear suspension - this is what I am working on at this time. Rear springs were relocated using the MP inboard kit about 20 years ago. I am now taking out the 002-003 rear SS springs and snubber, replacing them with Caltracs and a -1" monoleaf spring. I have the drivers side in. Plan on getting the passenger side this coming weekend and put the car back down on the ground.

    My new gas tank is on its way from Rick's tanks. It will replace the 20 year old Jaz fuel cell.

    After the rear suspension is replaced / fitted and the fuel tank is situated - the car will be coming apart in preparation for paint.

    • Like Like x 1
    • xlexl

      xlexl Well-Known Member

      Messages:
      824
      Likes Received:
      8
      Joined:
      Mar 29, 2010
      Location:
      Graham, WA
      Local Time:
      7:42 PM
      Wow I wish mine looked that good! I,unfortunately, was too young to have caught the deals back than haha. Look forward to seeing the progress.

    • mosleyme

      mosleyme Well-Known Member

      Messages:
      901
      Likes Received:
      422
      Joined:
      Oct 7, 2007
      Location:
      Plano, TX
      Local Time:
      7:42 PM
      Pictures. First w/ drag radials 3-1/2 years ago. Second six years ago with Sean K's TTII wheels and tire fitment test. Third last summer in the garage with "new" door and fender.


      Attached Files:

    • mosleyme

      mosleyme Well-Known Member

      Messages:
      901
      Likes Received:
      422
      Joined:
      Oct 7, 2007
      Location:
      Plano, TX
      Local Time:
      7:42 PM
      • Like Like x 2
      • RedFish

        RedFish Well-Known Member

        Messages:
        24,178
        Likes Received:
        2795
        Joined:
        Sep 5, 2007
        Local Time:
        7:42 PM
        Nice. The new wheels look a lot better. What size are they ?

      • mosleyme

        mosleyme Well-Known Member

        Messages:
        901
        Likes Received:
        422
        Joined:
        Oct 7, 2007
        Location:
        Plano, TX
        Local Time:
        7:42 PM
        17x8
        245/45/17 front, 255/50/17 rear

      • rob_robinson87

        rob_robinson87 Well-Known Member

        Messages:
        602
        Likes Received:
        12
        Joined:
        Oct 8, 2008
        Location:
        Newport, NC
        Local Time:
        8:42 PM
        Michael, you going back with the green, or something different? Good to see you working on it again. I have looked over your site with the wheels on it many times now.

      • 35regal

        35regal Well-Known Member

        Messages:
        576
        Likes Received:
        0
        Joined:
        May 18, 2008
        Local Time:
        7:42 PM
        i like how low it sits.

      • mosleyme

        mosleyme Well-Known Member

        Messages:
        901
        Likes Received:
        422
        Joined:
        Oct 7, 2007
        Location:
        Plano, TX
        Local Time:
        7:42 PM
        Yep - Green. May have to go with "Dark Bowling Green Metallic". It is a really good match and readily available. 2001 Corvette, paint code 91. I was not sure if I wanted to go with the same color until I removed the splash shield behind the drivers side fender and found a spot that had remained hidden for 40+ years. Wow! It is a really nice, really dark metallic green paint. Like I said, almost a perfect match to the Corvette color. It looks black at night or from a distance. I believe the same paint code is also used on some Tahoes, Suburbans and Cadillacs.


        Attached Files:

      • mosleyme

        mosleyme Well-Known Member

        Messages:
        901
        Likes Received:
        422
        Joined:
        Oct 7, 2007
        Location:
        Plano, TX
        Local Time:
        7:42 PM

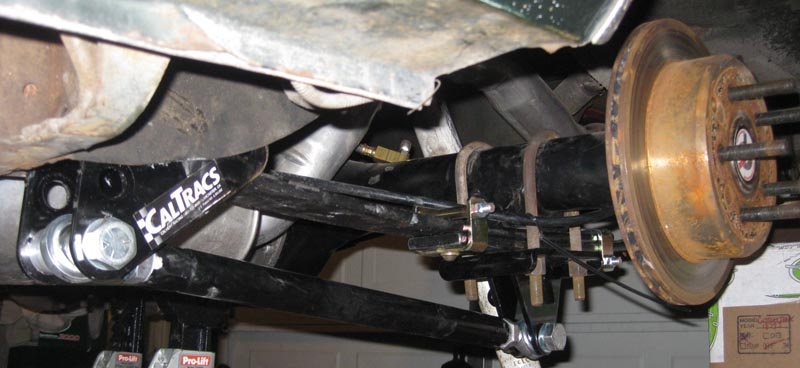

        I love how it looks in the front. I am in the process of installing the -1" monoleafs, the rear should be similar when I am done.


        Attached Files:

        • Like Like x 1
        • mosleyme

          mosleyme Well-Known Member

          Messages:
          901
          Likes Received:
          422
          Joined:
          Oct 7, 2007
          Location:
          Plano, TX
          Local Time:
          7:42 PM

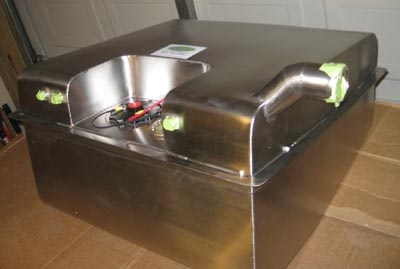

          Doorbell rang during dinner tonight - some guy in brown shorts and a brown short sleeve shirt left a big box in front of my door and ran off.


          Attached Files:

          • Like Like x 1
          • t-granger

            t-granger Well-Known Member

            Messages:
            483
            Likes Received:
            1
            Joined:
            Aug 25, 2010
            Location:
            Dallas
            Local Time:
            7:42 PM
            how many gallons did you end up getting with that monster tank?

          • mosleyme

            mosleyme Well-Known Member

            Messages:
            901
            Likes Received:
            422
            Joined:
            Oct 7, 2007
            Location:
            Plano, TX
            Local Time:
            7:42 PM
            Including the cut out - I estimate about 31.5 gallons. It is narrower than your tank at 24" wide, same profile below the floor, and extends 4" up into the trunk. Two vents, one return line, and a big in tank pump.

          • HTRTrash

            HTRTrash Well-Known Member

            Messages:
            111
            Likes Received:
            3
            Joined:
            Feb 21, 2010
            Location:
            Wylie, Tx
            Local Time:
            8:42 PM
            Love the Notchback. A friend had a yellow one with a hemi years ago. Good luck with the build.

          • cuda20

            cuda20 Well-Known Member

            Messages:
            1,522
            Likes Received:
            57
            Joined:
            Mar 16, 2009
            Location:
            Chilliwack, B.C
            Local Time:
            5:42 PM
            Looks good. I like the gas tank. I made the mistake of puting in a 10 gallon cell.A 499 ci stroker drinks that pretty quick . How much was it and where did you buy it if you don't mind me asking.

          • agarcia5

            agarcia5 Well-Known Member

            Messages:
            60
            Likes Received:
            2
            Joined:
            Jul 12, 2006
            Location:
            Laredo,TX
            Local Time:
            7:42 PM
            Great Car man

            • Like Like x 1
            • mosleyme

              mosleyme Well-Known Member

              Messages:
              901
              Likes Received:
              422
              Joined:
              Oct 7, 2007
              Location:
              Plano, TX
              Local Time:
              7:42 PM
              Your car is beautiful. I was planning on running the same hood. Is that the AAR offering? How much prep was needed before paint? Are you running any sort of hood spring?

              I bought the tank from Ricks' Tanks - Direct. I spoke them at the Goodguys show at Texas Motor Speedway last Fall. It was a little bit more than thier fuel injected style tank for a camaro, plus extra for the included Aeromotive A1000 pump, a fuel level sender unit, and was a "one-off" custom design.

              For the design, I asked them to use the same profile under the floor that they used for t-granger's Duster. From there I had them narrow it to 24" and increase the above floor height to 4". Since I have the inboard spring relocation kit the exhaust has to run between the frame rails. Frame rail to frame rail is 34" IIRC and I wanted to leave 5" on each side. The floor comes up from the trunk just over 4" to clear where the shocks mount. This will make it so I can make a flat "false floor" or cover at that height that will cover the tank and be level to the firewall I will be putting in behind the rear seat. This will naturally create areas to hide relays, other electronics, and a small tool storage area. When you open the trunk it will have a flat floor with a small spare and nothing else visible except the filler neck. I also had them incorporate a large return feed to the sump and two seperate vents. The return is an AN connection, the two vents have tubes that run to the top rear corners of the tank. Since the tank sits higher, I had them turn the filler neck to horizontal. I will take the stock neck, cut it, have a hose bead added, and use a 90 curved hose to connect the two.

              With actual measurements of the exterior of the tank it comes out over 32 gallons even accounting for the displacement of the pump. The large pump and tank are more a concession to fuel injection plus the possibility of running E-85 or Methanol and / or forced induction. I did not want to turn around two years from now and be forced to modify or buy another tank. 30+ gallons also makes things like driving between cities in Texas, the annual gulf coast cruise, or an event like the power tour more realistic.

            • mosleyme

              mosleyme Well-Known Member

              Messages:
              901
              Likes Received:
              422
              Joined:
              Oct 7, 2007
              Location:
              Plano, TX
              Local Time:
              7:42 PM
              OK - back after a one month delay caused by installing wood floors in the house. Besides the considerable dent to the savings caused by the floors - the IRS is going to want some money this month. I am drained for a few months. I still have plenty of labor I can do when momma and the kids let me out in the garage.

              Finally got back into the garage this morning and finished the Cal Trac install. I ordered the -1" springs. Looks like it sits at least 2" lower than with the super stock springs. I can still adjust with a short block if I want to go lower.

              Rolled the car into the driveway to take an "after" picture. Before v After picture attached. Before is the top picture.


              Attached Files:

            • mosleyme

              mosleyme Well-Known Member

              Messages:
              901
              Likes Received:
              422
              Joined:
              Oct 7, 2007
              Location:
              Plano, TX
              Local Time:
              7:42 PM

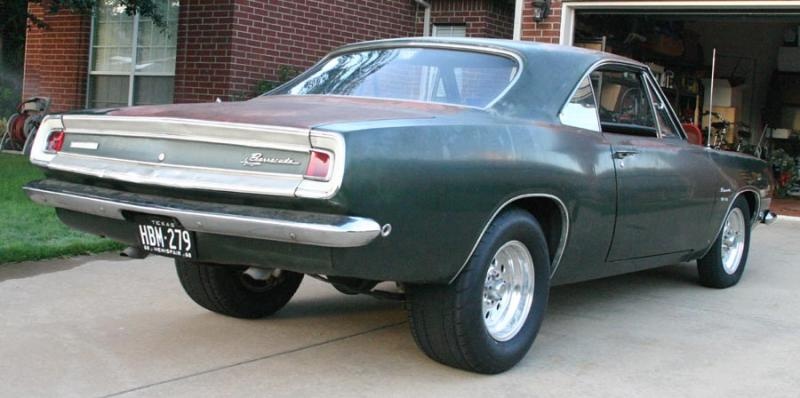

              Before


              Attached Files:

            • mosleyme

              mosleyme Well-Known Member

              Messages:
              901
              Likes Received:
              422
              Joined:
              Oct 7, 2007
              Location:
              Plano, TX
              Local Time:
              7:42 PM

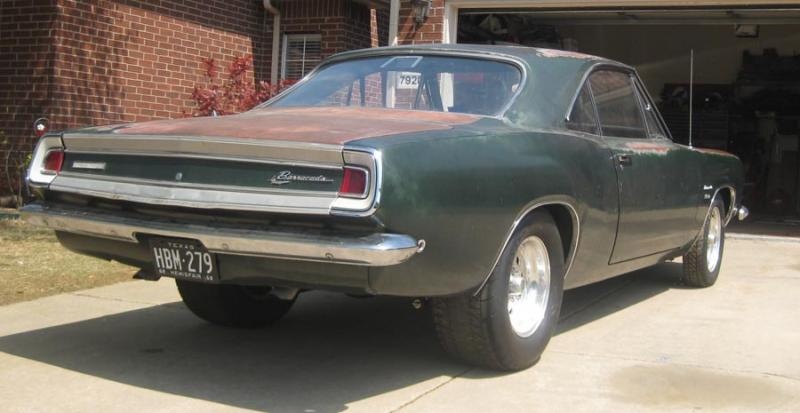

              After


              Attached Files:

            • xlexl

              xlexl Well-Known Member

              Messages:
              824
              Likes Received:
              8
              Joined:
              Mar 29, 2010
              Location:
              Graham, WA
              Local Time:
              7:42 PM
              :thumblef:

              • Like Like x 1
              • t-granger

                t-granger Well-Known Member

                Messages:
                483
                Likes Received:
                1
                Joined:
                Aug 25, 2010
                Location:
                Dallas
                Local Time:
                7:42 PM
                I like how the car sits lower. I was never a big fan of the whole a** up in the air thing.

              • themachine

                themachine Well-Known Member

                Messages:
                62
                Likes Received:
                1
                Joined:
                Mar 26, 2010
                Local Time:
                7:42 PM
                Mosley!!! great to see your back working on the Barracuda again!!

                this is Jeff your Old Neighbor from Round Rock

                ive been working on mine a lot as well just picked up a 4 speed overdrive A833 and spring relocation kit also some Bullitt wheels 17x8 Front and 18X10 rear

              • cuda20

                cuda20 Well-Known Member

                Messages:
                1,522
                Likes Received:
                57
                Joined:
                Mar 16, 2009
                Location:
                Chilliwack, B.C
                Local Time:
                5:42 PM
                Thanks for the info on the gas tank.Your cuda is looking good. The stance looks awesome. Yes the hood was from AAR. I was happy with quality and it didn't require much work before paint.


                Attached Files:

              • mosleyme

                mosleyme Well-Known Member

                Messages:
                901
                Likes Received:
                422
                Joined:
                Oct 7, 2007
                Location:
                Plano, TX
                Local Time:
                7:42 PM
                Hey Jeff - where do you live these days?

                Just finished painting the grill and bolting the header panel assembly back on the front of the car. Need to modify the driver's side bucket so I can put the headlight and the surrounds back in, tighten the bumper. Only thing left to get it running again after that is to run two or three wires, pre-lube the engine and fire it up. I have been tinkering with different things trying to decide if I am going to paint now or later. I have more work to do, guess I will paint it later. I want to do suspension, brakes, fuel injection, five speed and the paint. I can only afford one or two things on the list at this time. I would hate to take it apart for paint then leave it apart for years as I finish the rest of the car.

                I know too many people who have a car in "exploded view".
