73 Swinger fuse block

[crazy440car]

Does anyone know or have info relating to the fuse block on a 73 swinger? Specificly what I need to know is what each cooresponding # is in relation to what it is for. Any help would be greatly appreciated!
-crazy440car



[rumblefish360]

Welcome to FABO!

Sorry, can't help with that tech question. It's a little vauge. What are you looking to do?



[RedFish]

Welcome. There are fancy colored wiring diagrams for sale on ebay that would probably answer your electrical questions. Thats as far as it goes though. My best advise is to invest in a service manual. I buy a clilton or whatever for every car I ever owned. they really are worth their weight in gold.



[crazy440car]

I have a Chilton's Manual, Haynes Manual and a wiring diagram. None of which have the fuse block info. I need to know which fuse is the lights, which one is the ignition, which one is the horn ect...... Unfortunately instead of giving a listing on the pannel like normal it just has a number for each fuse and how many amps it is. Any help you could be would be greatly appreciate it.



[doktor_x]

I'll see if I can take a decent picture of that page in the owner's manual.

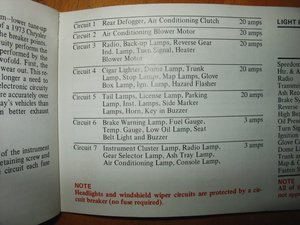

The page of stuff:

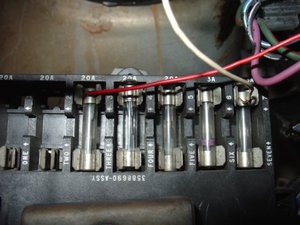

...and just in case the numbers are rubbed-off or otherwise mangled:



[Demon 408]

Here's a picture of the fuse block from the factory service manual. Very basic. If you need to know a specific item let me know and I'll trace it out for you.

Bottom line: Nothing beats a factory service manual, invest in one because they a worth the money.



[rumblefish360]

I need those last two! for all my cars.



[crazy440car]

Thank you very much you guys have been a huge help.
