Engine compartment pics

-
6

6T9QDA

Active Member
Joined
Oct 15, 2022
Messages
28
Reaction score
60
Location
Virginia

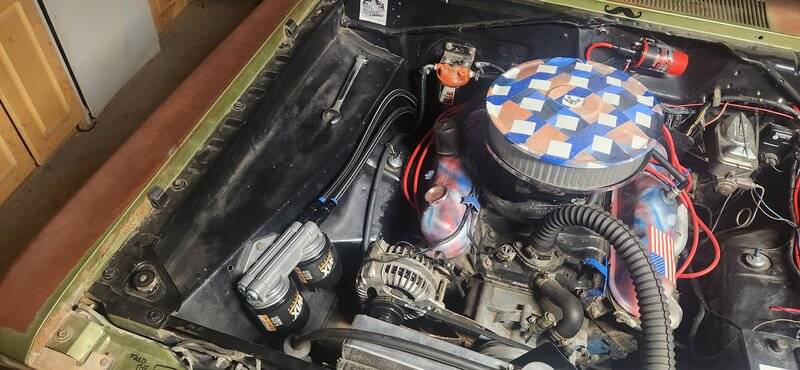

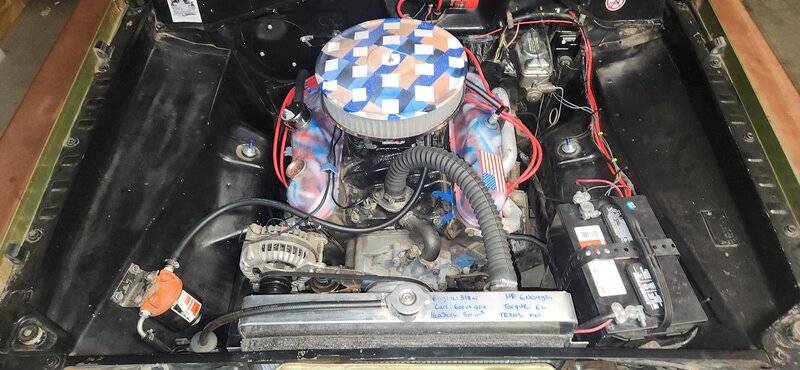

Maybe I just couldn't turn it up in a search, but has there ever been a thread here for engine compartment pics? People have good ideas for air cleaners, catch cans, spark plug and heater hose routing, etc, and it would be good to have them all in one place. Mine isn't complete yet, but here's what I've go going on.

engine run 1.jpg

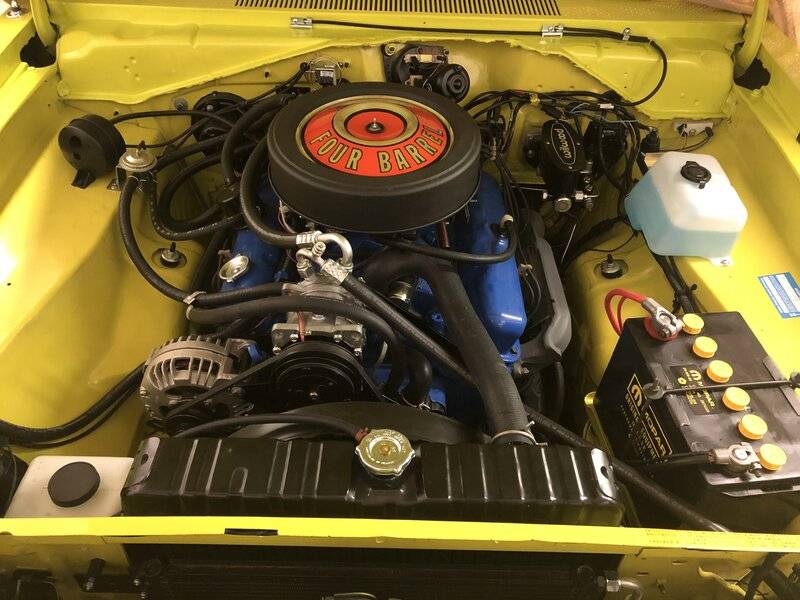

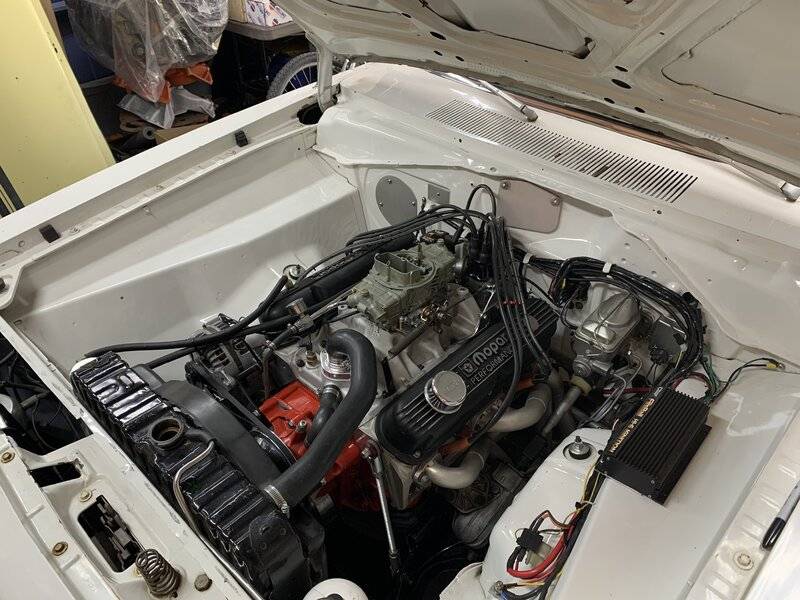

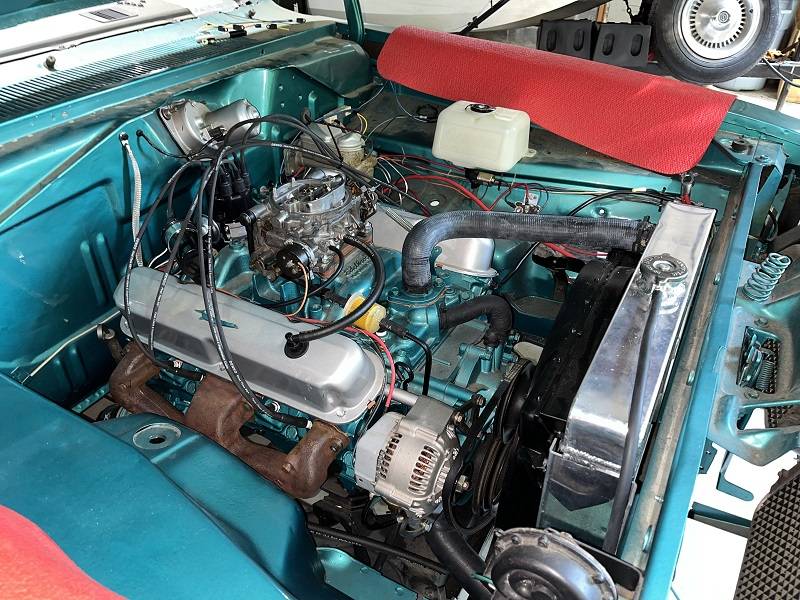

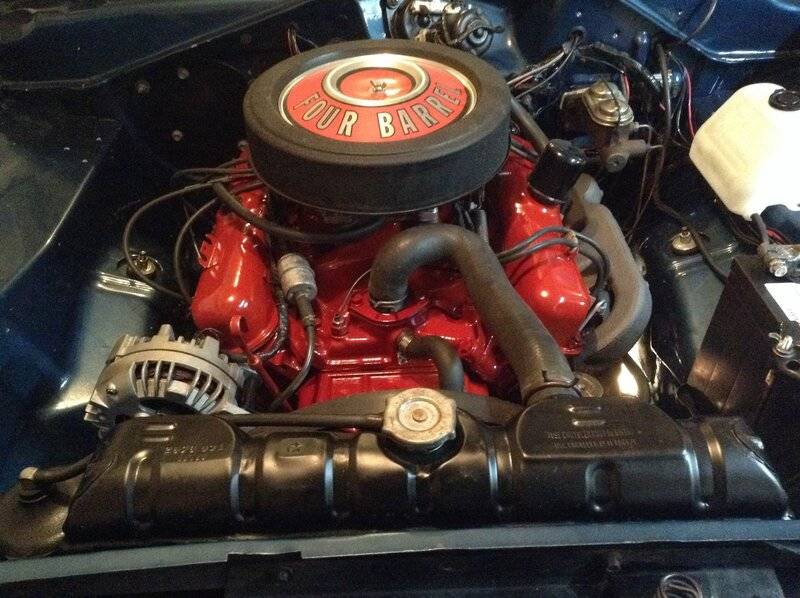

Here’s mine at the moment. Still getting it all put back together. I need to get the brake booster/master in and my windshield washer reservoir.

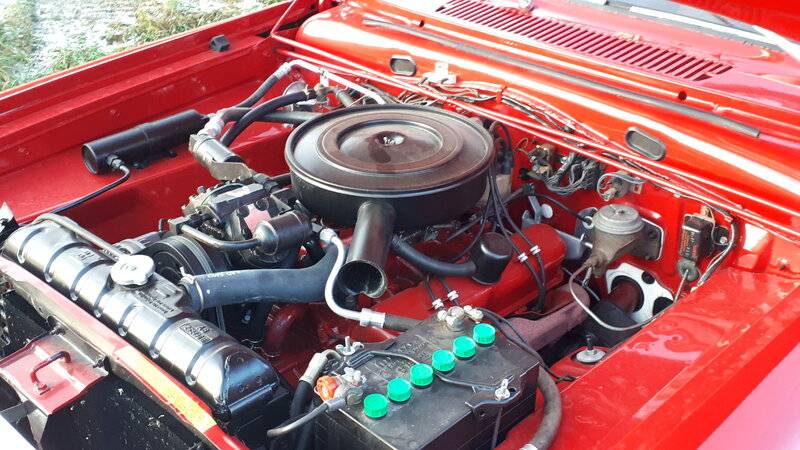

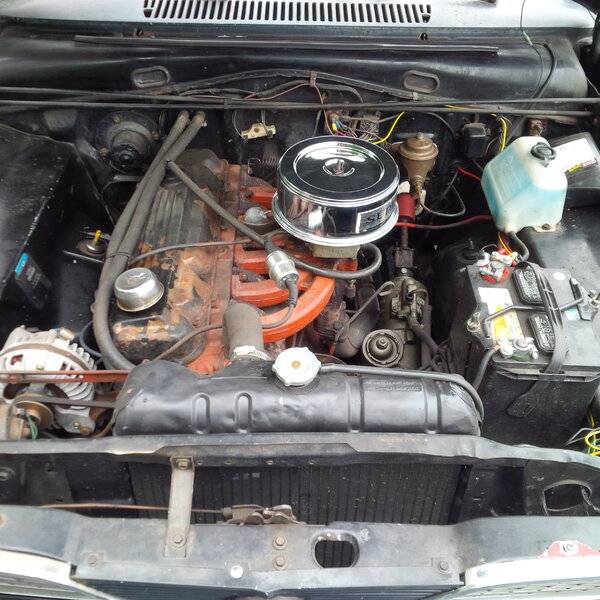

Slant 6 in early Barracuda I owned. I’m embarrassed I have no pics of my current cars engine bays. Gonna need to fix that.
temp-AGZ7J-KVUmNofCDbFjeRbUS5IK5HCegKuEu6NuCSJd57BgTM2hiEv477nNKWZEY79aNceoOSCwm0veff7JeSdT0.jpeg

6T9QDA said:
Maybe I just couldn't turn it up in a search, but has there ever been a thread here for engine compartment pics? People have good ideas for air cleaners, catch cans, spark plug and heater hose routing, etc, and it would be good to have them all in one place. Mine isn't complete yet, but here's what I've go going on.

View attachment 1716193369
Click to expand...
That is a good sized wire you have going from the alternator to the battery area. How big is your alternator?

My 408 Stroker Magnum dressed to look like day 2 340.








'68 Barracuda, EFI'd 408 Magnum, 2004R 4-speed automatic with 3800 stall 3 carbon fiber lock-up converter, 3.91 8 3/4", full US-Cartool chassis stiffening kit, and 4 wheel disc brakes.

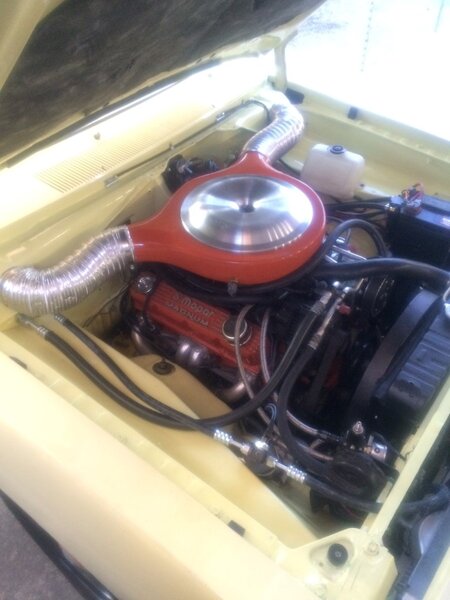

Airbox1 (Medium).JPG

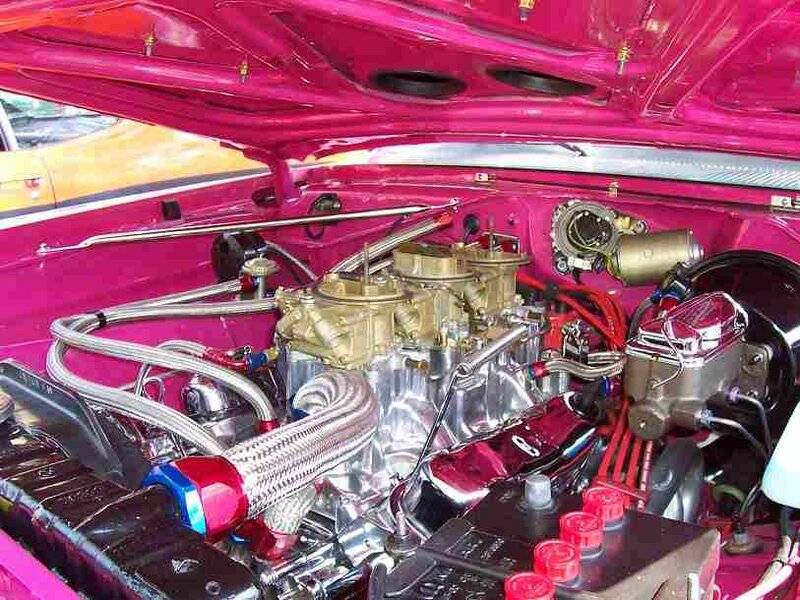

340 X Block, Mopar Commando heads (commando are mag castings machined to use on LA Small 52.5cc closed chamber) six pack.
Dressed like it is 1978.
Being replaced by 340-422 a diff sox pack intake (Ported) Eddiy Heads Ported and maybe a shot of NOS
