Front and Rear Sway Bar?

Suspension, Steering and Chassis

  1. my68barracuda

    my68barracuda Well-Known Member

    Messages:
    1,542
    Likes Received:
    1232
    Joined:
    Dec 6, 2009
    Location:
    Indianapolis IN
    Local Time:
    6:01 PM

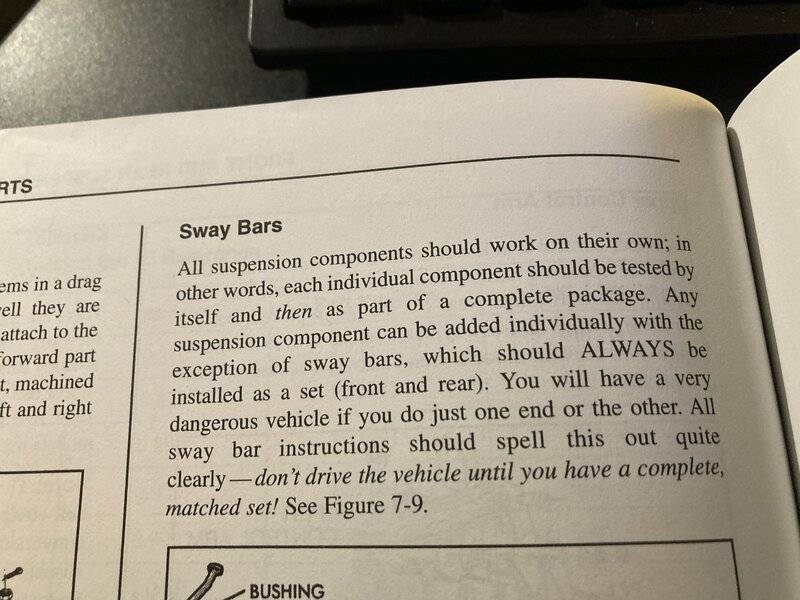

    Paging through an old Mopar Performance Parts Chassis book, found a statement were the writer was adamant about running a Front and Rear sway bar, or not using a sway bar at all. Is this still current thinking for best handling?



  2. moparmarks

    moparmarks zippindippintie FABO Gold Member

    Messages:
    1,463
    Likes Received:
    767
    Joined:
    Oct 5, 2014
    Location:
    Western Colorado
    Local Time:
    4:01 PM
    Guess Mopar make a lot of dangerous cars with just front sway bars for years. I say total BS.

    • Agree Agree x 1
    • Treblig

      Treblig Well-Known Member

      Messages:
      6,723
      Likes Received:
      3967
      Joined:
      Oct 5, 2013
      Location:
      South Texas
      Local Time:
      5:01 PM
      Seems like many newer cars and trucks come with front and rear bars. Maybe technology has changed (or maybe the roads have changed)????????

    • leechris81

      leechris81 Well-Known Member

      Messages:
      116
      Likes Received:
      131
      Joined:
      Jan 1, 2018
      Location:
      Monett, MO
      Local Time:
      5:01 PM
      I wouldn’t say it was necessary. I did put front and rear on my ‘73 Swinger and it’s now a life-size slot car in the twisties. Lots of fun to drive.

      • Like Like x 1
      • Kendog 170

        Kendog 170 Let the boy go !

        Messages:
        1,644
        Likes Received:
        1066
        Joined:
        Mar 10, 2016
        Location:
        Tewksbury Ma.
        Local Time:
        6:01 PM
        Never a rear without a front. Rear always smaller than front.

        • Agree Agree x 1
        • cawcislo

          cawcislo Well-Known Member

          Messages:
          334
          Likes Received:
          216
          Joined:
          Aug 7, 2018
          Location:
          Ontario, Canada
          Local Time:
          6:01 PM
          Theres millions of cars and trucks manufactured with just a front sway bar. And the vast majority of people just putt putt around with their vehicles. People are not autocross or road racing them to get into any situations where the lack of rear sway bar will affect their vehicle.

        • RustyRatRod

          RustyRatRod Lemmie see your b00bs. FABO Gold Member

          Messages:
          67,595
          Likes Received:
          41774
          Joined:
          Jun 7, 2010
          Location:
          Georgia
          Local Time:
          6:01 PM
          I've seen them from the factory with no bars, front only rear only and both front and rear.

        • Kendog 170

          Kendog 170 Let the boy go !

          Messages:
          1,644
          Likes Received:
          1066
          Joined:
          Mar 10, 2016
          Location:
          Tewksbury Ma.
          Local Time:
          6:01 PM
          Interesting, rear only.

        • moparmarks

          moparmarks zippindippintie FABO Gold Member

          Messages:
          1,463
          Likes Received:
          767
          Joined:
          Oct 5, 2014
          Location:
          Western Colorado
          Local Time:
          4:01 PM
          My 69 RR, 72 Dart, 72 Satellite, 78 D100, 97 Dakota 2wd amount others all have just a front sway bar from the factory, no rear bar.
          Never seen a car with just a factory rear bar.

          • Agree Agree x 1
          • Kern Dog

            Kern Dog FABO Gold Member FABO Gold Member

            Messages:
            5,106
            Likes Received:
            8044
            Joined:
            May 23, 2010
            Location:
            Granite bay CA
            Local Time:
            3:01 PM
            I've read that Mopars were often sprung too soft up front and too stiff in the back. To remedy this, a front sway bar adds balance but if one adds a rear bar to the car, it moves from an even handling car to one that over-steers and wants to spin.
            The Chassis book is not for daily driver cars to haul groceries, go to the Post Office, Dr appts, etc. The book was for street-strip and road race tracks.

          • str12-340

            str12-340 FABO Gold Member FABO Gold Member

            Messages:
            1,454
            Likes Received:
            855
            Joined:
            Dec 26, 2012
            Location:
            Vashon, WA
            Local Time:
            3:01 PM
            I still remember the difference when I put a factory front bar on each of my Darts - like night and day (in a good way).

            • Agree Agree x 1
            • RustyRatRod

              RustyRatRod Lemmie see your b00bs. FABO Gold Member

              Messages:
              67,595
              Likes Received:
              41774
              Joined:
              Jun 7, 2010
              Location:
              Georgia
              Local Time:
              6:01 PM
              I HAD a 78 Malibu wagon with just a rear bar....and no sign of ever having a front one. It's not the only one I've ever seen either. Also seen a few trucks with rear bar only.

            • RustyRatRod

              RustyRatRod Lemmie see your b00bs. FABO Gold Member

              Messages:
              67,595
              Likes Received:
              41774
              Joined:
              Jun 7, 2010
              Location:
              Georgia
              Local Time:
              6:01 PM
              I just put an 1 1/8" bar on Vixen in the front. Although it only has 13s on it, I can tell a huge difference. It's easy to see how these little cars spanked ass in the 1960 NASCAR compact car races. I can only imagine how it will handle when I get the rear bar on it and upgrade to 14s. But I'm just putting them on for a little better drivability, not to be a road race queen.

            • AndyF

              AndyF Well-Known Member

              Messages:
              1,890
              Likes Received:
              2080
              Joined:
              Feb 23, 2009
              Location:
              Oregon
              Local Time:
              3:01 PM
              That information is wrong. It was wrong when written and it is still wrong today. The real answer is "it depends". A more complete answer is that it depends on a bunch of things including weight distribution, tire size, track width, spring rates, etc.
