Kendog 170
Let the boy go !
Would this be 3/4-16 ? Going to buy a Bolt, nut and washers for installing my Balancer after removal.
Thanks
Thanks
Harmonic balancer thread size on crank?
- Thread starter Kendog 170
- Start date
-
correct. I bought an ARP bolt and installed it in my 318. The spec sheet says 3/4 in.-16
Yup. I think that's common on all Mopars from the slant to the Hemi.
Kendog 170
Let the boy go !
I thought so. Just double checking. Thanks
Kendog 170
Let the boy go !
I'm thinking 3" long for installing enough to catch my balancer bolt.
you really need a stud. Thread the bolt/ stud a long ways into the crank, and this will help protect the crank threads, as they are not turning and "now have" lots of engagement. Then use a nut, a "heavy" nut if you can get it, and OIL the stud threads, to pull the balancer on
I can still remember the early days of 265/ 283 Chevs, which had no bolt, were just "pressed on." Well, LOL, fine, until you get one that is LOOSE!!!
I can still remember the early days of 265/ 283 Chevs, which had no bolt, were just "pressed on." Well, LOL, fine, until you get one that is LOOSE!!!
Gomer Pyle
Active Member
Ha, the old Chevy junk, then they upgraded to a 3/8" bolt, meanwhile the big blocks had so much interference that the first auto machine shop I worked in back in the mid 70s used to buy a new damper puller every couple of months and these pullers were Snap on, not Chinese junk. I had a neighbor who had a 57 Corvette and he stopped at my shop one day to tell me his damper fell off, he was a grumpy old fart who owned the pawn shop down the road from me, I couldn't stop laughing.

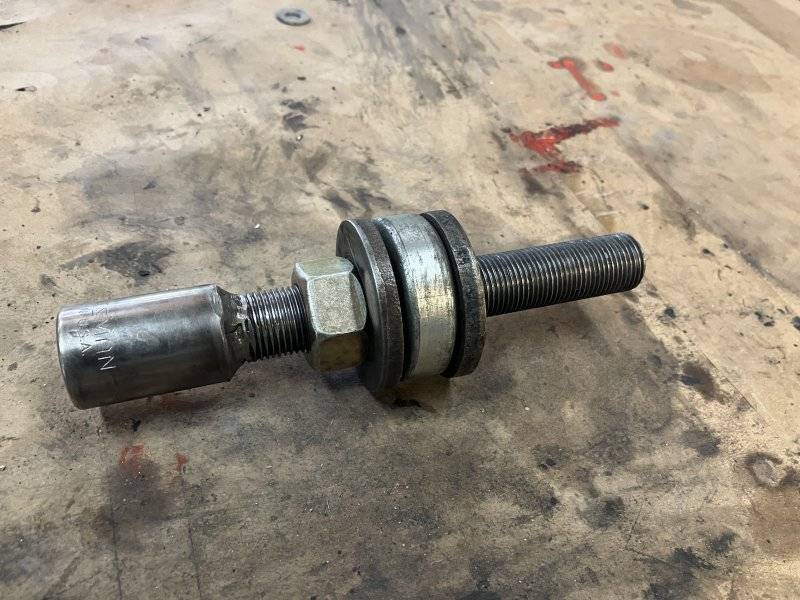

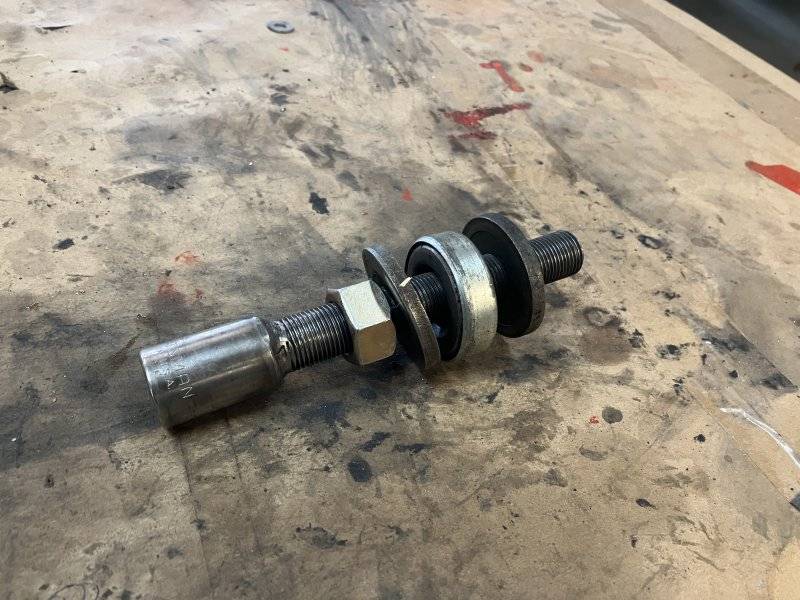

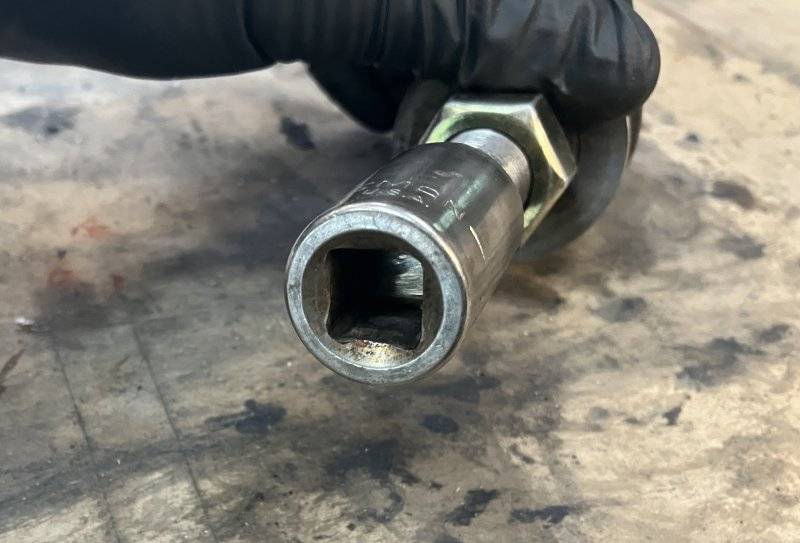

I made two using a piece of allthread bought from Grainger....
MiradaMegaCab
Well-Known Member

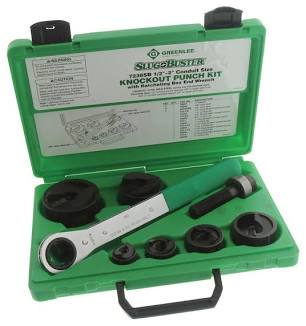

I’ve used the bolt/ bearing (similar to KernDogs creation) from a Greenlee KnockOut Punch set as I had KO set sitting on the shelf.
Kendog 170
Let the boy go !

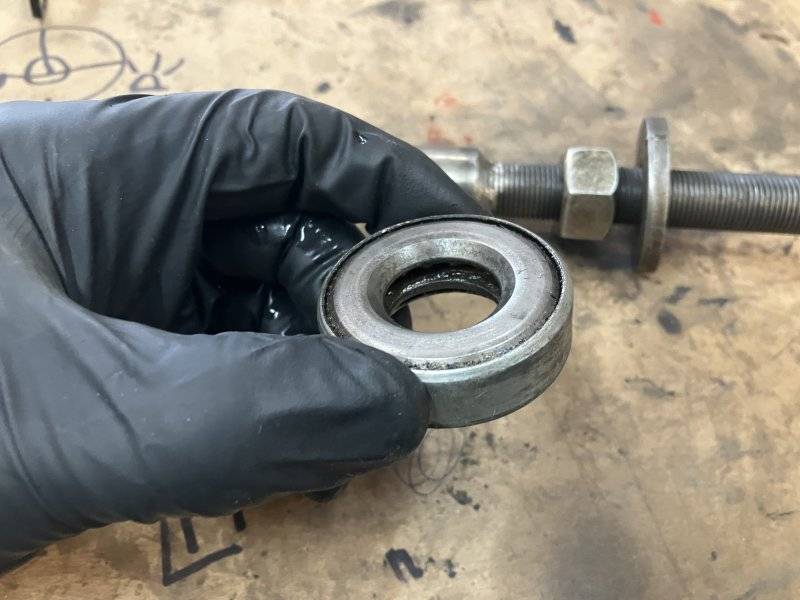

That's the same set up I'm thinking. What style bearing is that you're using and (dimensions)? I know the ID is .680. I have a 3" Grade 8 bolt, washers, and nut. I also have some all thread if needed. Thanks
1WildRT
Well-Known Member
I used this one. Looks like its marked down right now too
340six
King Of Bling
I just bought the ARP Bolt, and the installer Remover kit. Getting to be that I am getting older and picking my battles.
340six
King Of Bling
I have one like that, same one.
Brought Seal and Bearing Drivers too. No more beating up sockets that are close.
My tools are to much $ to beat up.
-
