    My car is manual steering and 904 . My #3 tube is about 1/2 away from pan. Can't get a finger between them. My engine mount bisquits are about 1.25 inch thick . don't know what the application was, they were given to me. They are about double the thickness of the cheap India mounts that were on there, which I have have been told are typically thinner than stock. I welded plates along the side to make them solid. The aftermarket trans dipstick is very close to the firewall. I had to jack the DS header over to get the torsion bar in. It is very close to the torsion bar and I may tweak it a little more. I have added absolutely no dents to the headers. The car is not yet fully assembled.

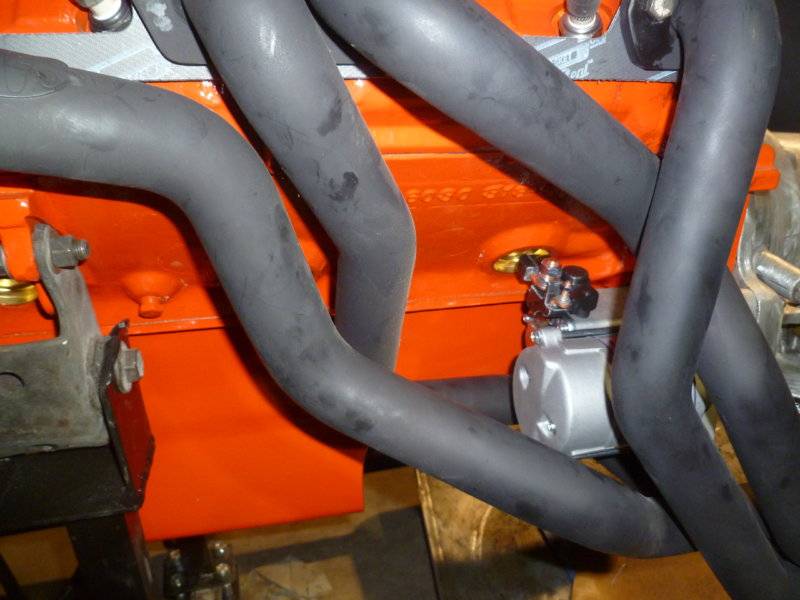

    duster 9-29-19 008.JPG

    • Thanks! Thanks! x 1
    • forphorty

      forphorty Well-Known Member

      Messages:
      618
      Likes Received:
      211
      Joined:
      Jan 19, 2006
      Local Time:
      7:07 PM
      more

      duster 9-29-19 010.JPG

      duster  5-3-17 002.JPG

    • 72bluNblu

      72bluNblu FABO Gold Member FABO Gold Member

      Messages:
      9,674
      Likes Received:
      3862
      Joined:
      Nov 28, 2008
      Location:
      NorCal
      Local Time:
      5:07 PM
      Less than a lot and more than a little? I've never worried about it, it wasn't an interference issue. So probably at least a 1/2" or more.

      I'll see if I can look at it tomorrow. Now that I've gone hydraulic I don't have a z-bar stuffed in there anymore so I may be able to check it without getting under the car. I have a Milodon road race pan, but the kick-outs are ahead of anywhere the #3 tube should be so I should have a relevant reference point to measure from.

    • 72bluNblu

      72bluNblu FABO Gold Member FABO Gold Member

      Messages:
      9,674
      Likes Received:
      3862
      Joined:
      Nov 28, 2008
      Location:
      NorCal
      Local Time:
      5:07 PM
      Alright, you got me. The #3 tube is only about a 1/4" off the pan on my car. Kinda looks like more than that, but a 1/4" drive extension won't fit between the pan and the header so it's less than .315"(diameter of the extension). Looks like the part of the pan closest to the header should be the same as a standard pan too.

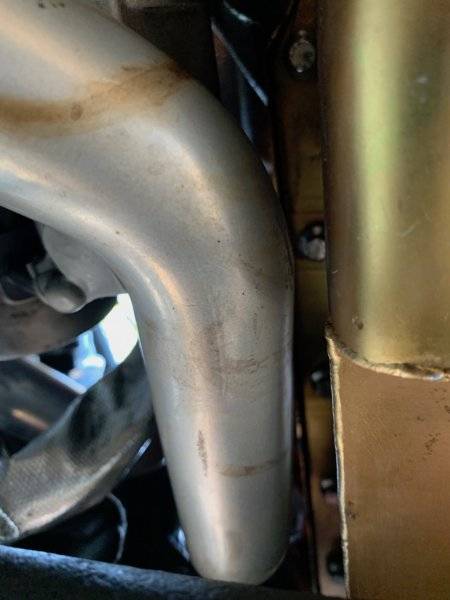

      #3 header tube looking back toward the starter

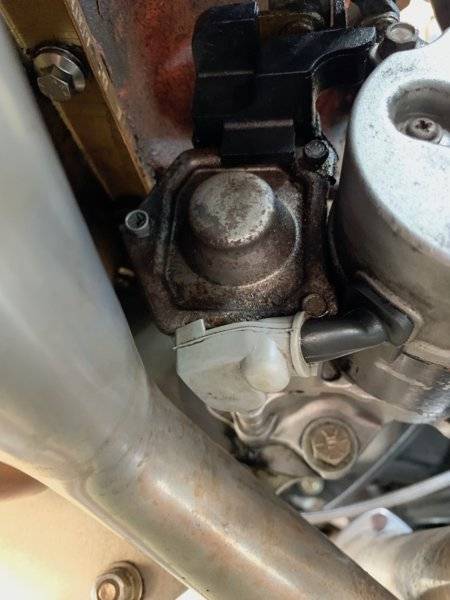

      #3 looking forward from the tight spot

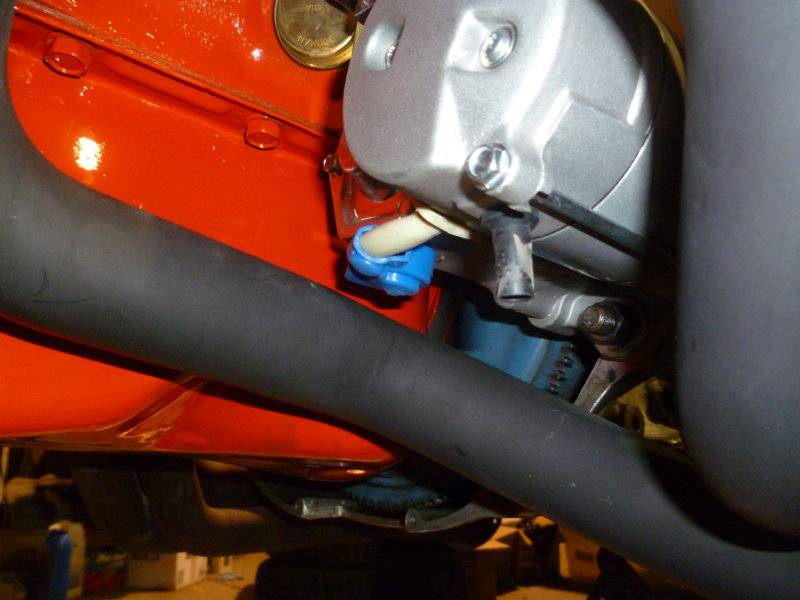

      #3 and the starter terminals. Main connections are on top of the block at the top of the picture. Lower wire is undamaged after ~20k miles, has a good 1/2" of clearance to #3.

    • famous bob

      famous bob mopar misfit FABO Gold Member

      Messages:
      13,909
      Likes Received:
      4341
      Joined:
      Aug 14, 2011
      Location:
      okla
      Local Time:
      7:07 PM
      I wrap or insulate the offending part or recieveing part when things are that close---

    • 72bluNblu

      72bluNblu FABO Gold Member FABO Gold Member

      Messages:
      9,674
      Likes Received:
      3862
      Joined:
      Nov 28, 2008
      Location:
      NorCal
      Local Time:
      5:07 PM
      And yet 20k miles later there's not even any discoloration. Almost like it's completely fine just like it is.

      • Agree Agree x 1
      • yellow rose

        yellow rose Doctor of Thinkology.

        Messages:
        18,112
        Likes Received:
        14140
        Joined:
        Jun 19, 2015
        Location:
        Living on the razors edge
        Local Time:
        5:07 PM
        ive got tubes that close or closer. As long as it doesn't touch, it's good to go.

      • famous bob

        famous bob mopar misfit FABO Gold Member

        Messages:
        13,909
        Likes Received:
        4341
        Joined:
        Aug 14, 2011
        Location:
        okla
        Local Time:
        7:07 PM
        MY no.1 and 2 header tubes melt valve cover gaskets. I wrapped those two tubes and even have gasket gaurds on the covers themselves , along w/ the burn proof gaskets from hughs . Almost works !

      • yellow rose

        yellow rose Doctor of Thinkology.

        Messages:
        18,112
        Likes Received:
        14140
        Joined:
        Jun 19, 2015
        Location:
        Living on the razors edge
        Local Time:
        5:07 PM

        LOL. The exhaust is pretty hot up there. I can imagine the valve cover gaskets don't like all that heat there.

      • famous bob

        famous bob mopar misfit FABO Gold Member

        Messages:
        13,909
        Likes Received:
        4341
        Joined:
        Aug 14, 2011
        Location:
        okla
        Local Time:
        7:07 PM
        Think the raised port heads contribute to that too !

        • Agree Agree x 1
        • MOA

          MOA Well-Known Member

          Messages:
          293
          Likes Received:
          108
          Joined:
          Feb 23, 2016
          Location:
          CA
          Local Time:
          7:07 PM
          Thanks Blu. That's what I needed to see. Mine would need to come over 3/8" or so for .3125 clearance. The first header is almost touching the starter wire, the second one gives more clearance but not enough.

        • inertia

          inertia Well-Known Member

          Messages:
          3,160
          Likes Received:
          481
          Joined:
          Feb 4, 2011
          Location:
          Victoria B.C. Canada
          Local Time:
          5:07 PM
