HEI distributor install help please

Electrical and Ignition

  1. memike

    memike Super Moderator Staff Member FABO Gold Member

    Messages:
    48,899
    Likes Received:
    8925
    Joined:
    Jan 8, 2006
    Location:
    on the hill
    Local Time:
    12:49 AM

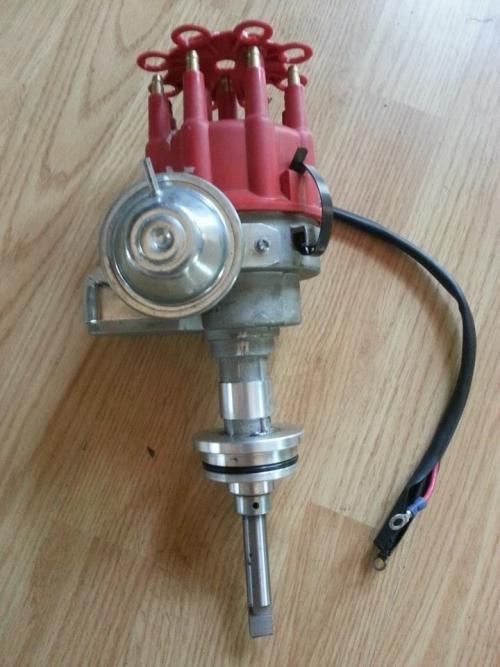

    So.. seems simple enough to me.. going to put this in my 1988 Ramchager, the old dizzy is worn out, picked this up at Petit Jean Mt.
    I read this and I am still a bit confused on the ECU, do I leave it plugged in or just unplug and do this, ( copied from another thread ) wish I could see a wire diagram #-o

    Any help would be great :color: Thank you :glasses7:

    Remove the existing distributor, ignition box and ballast resistor.
    Replace the coil with a 12V low resistance coil like the pertronix flame thrower II.
    Connect the ballast resistor wires together, bypassing the old ballast resister and applying 12V directly to the plus side of the coil.
    Connect the two wires from the distributor to the coil


    Attached Files:

  2. TrailBeast

    TrailBeast Slightly Twisted Member

    Messages:
    19,355
    Likes Received:
    5755
    Joined:
    Mar 11, 2011
    Location:
    Arizona
    Local Time:
    10:49 PM
    Yep, very basic Mike and I'll draw you a diagram and put it up in a few min here.

  3. memike

    memike Super Moderator Staff Member FABO Gold Member

    Messages:
    48,899
    Likes Received:
    8925
    Joined:
    Jan 8, 2006
    Location:
    on the hill
    Local Time:
    12:49 AM
    Thank you TrailBeast :cheers: I looked at all the wires and thought Dayum !! Surely I don't unplug my ECU :banghead: I could not find a diagram anywhere on here or the NET :glasses7:

  4. memike

    memike Super Moderator Staff Member FABO Gold Member

    Messages:
    48,899
    Likes Received:
    8925
    Joined:
    Jan 8, 2006
    Location:
    on the hill
    Local Time:
    12:49 AM
    Me and my 88 360 Ramcharger thank you


    Attached Files:

  5. TrailBeast

    TrailBeast Slightly Twisted Member

    Messages:
    19,355
    Likes Received:
    5755
    Joined:
    Mar 11, 2011
    Location:
    Arizona
    Local Time:
    10:49 PM
    Actually that distributor completely replaces your ECU, so you could actually remove your current ECU and cut all the current ECU wires all the way back to the harness if you wanted.
    If you want to leave it all and still run HEI go ahead, as it makes no difference.
    You can prove all this to yourself if you want by unplugging your current ECU after it's running on the new distributor. (It should make no difference)

    Either way, just wire it as this diagram shows.
    Bypass the ballast if it has one.


    Attached Files:

    • Like Like x 1
    • memike

      memike Super Moderator Staff Member FABO Gold Member

      Messages:
      48,899
      Likes Received:
      8925
      Joined:
      Jan 8, 2006
      Location:
      on the hill
      Local Time:
      12:49 AM
      Thank you TrailBeast, I O U 1 Bud :cheers: this was a fast reply and has got to be a fast first for me :glasses7:

      You are one of many members that spoil me here :color:

    • TrailBeast

      TrailBeast Slightly Twisted Member

      Messages:
      19,355
      Likes Received:
      5755
      Joined:
      Mar 11, 2011
      Location:
      Arizona
      Local Time:
      10:49 PM
      We put more effort into it for you. :D

    • memike

      memike Super Moderator Staff Member FABO Gold Member

      Messages:
      48,899
      Likes Received:
      8925
      Joined:
      Jan 8, 2006
      Location:
      on the hill
      Local Time:
      12:49 AM
      You and many others know me all to well :D Pictures work better in my brain then word do at times :toothy1: They say there is meds for it but I don't want any of that chit :D

    • replicaracer43

      replicaracer43 Old school member

      Messages:
      3,773
      Likes Received:
      2218
      Joined:
      Oct 10, 2008
      Local Time:
      12:49 AM
      One thing to consider with any non-factory ignition swap like this, is you wont find ANY parts for this distributor at most parts stores.......... you know like if your out traveling somewhere and have problems. With the factory stuff, or even the GM module swap, parts are everywhere.....just something else to think about.

    • memike

      memike Super Moderator Staff Member FABO Gold Member

      Messages:
      48,899
      Likes Received:
      8925
      Joined:
      Jan 8, 2006
      Location:
      on the hill
      Local Time:
      12:49 AM
      I agree completely :glasses7: I will keep the old distributor with me and just let it get me home if that douse happen, It does work but has slop in the shaft :glasses7: I will leave all the oem stuff in place.
      This is my daily driver to get gas for the mower or just drive a few miles at a time, so I won't be far from home :D
      I picked this dizzy up at a swap meet last weekend at Petit Jean Mt. for $25.00 so I may as well test it and put it to use :color: plus ! Look at what I learned today :cheers:

    • RedFish

      RedFish Well-Known Member

      Messages:
      22,847
      Likes Received:
      1846
      Joined:
      Sep 5, 2007
      Local Time:
      12:49 AM
      for 25 bucks you cant go wrong unless the plug wires need to be changed. Good luck with it.

    • memike

      memike Super Moderator Staff Member FABO Gold Member

      Messages:
      48,899
      Likes Received:
      8925
      Joined:
      Jan 8, 2006
      Location:
      on the hill
      Local Time:
      12:49 AM
      I did not think of that #-o Well I guess I will carry my old wires in the truck as well RedFish.
      I forgot all about that expense, I will call today and see the cost,
      a member may have a set here for sale if they are crazy high at the auto parts store :glasses7:

    • RedFish

      RedFish Well-Known Member

      Messages:
      22,847
      Likes Received:
      1846
      Joined:
      Sep 5, 2007
      Local Time:
      12:49 AM
      A different cap for that dist'may be the simple solution.

    • TrailBeast

      TrailBeast Slightly Twisted Member

      Messages:
      19,355
      Likes Received:
      5755
      Joined:
      Mar 11, 2011
      Location:
      Arizona
      Local Time:
      10:49 PM
      That's a good point as you can get male or female caps for a lot less than new wires.

    • memike

      memike Super Moderator Staff Member FABO Gold Member

      Messages:
      48,899
      Likes Received:
      8925
      Joined:
      Jan 8, 2006
      Location:
      on the hill
      Local Time:
      12:49 AM
      This is a must do, I hope the caps are the same height, Should be though :color:
      Thank you RedFish :glasses7:

    • BillGrissom

      BillGrissom Well-Known Member

      Messages:
      7,212
      Likes Received:
      325
      Joined:
      May 10, 2009
      Location:
      Sacramento
      Local Time:
      10:49 PM
      Great find for $25, especially since it wasn't for SBC. Even the $45 ebay price for a new one is cheap enough to carry a spare in the trunk and forget the "no parts available" concern. How often do you break down right in front of an auto parts store anyway? You could also carry a simple points distributor in the trunk for backup (w/ ballast). Did your 88 Ramcharger have the "lean burn" spark computer? Those are notorious.
