Plug readers: What would you do??

-
RockinRobin

RockinRobin

Well-Known Member
Joined
May 15, 2013
Messages
1,251
Reaction score
911
Location
Corsicana, Tx
Setup:
Gen3 Hemi racing motor NA 13.5:1 compression running on 110 racing fuel which has purple dye in it.
Holly Sniper 4500 TBI fuel injection and Mopar Drag Pak intake. Ported Eagle heads. Brisk ER14S plugs.
After 5 passes it slows down by 20 numbers and the plugs look like this:
left bank (2468):

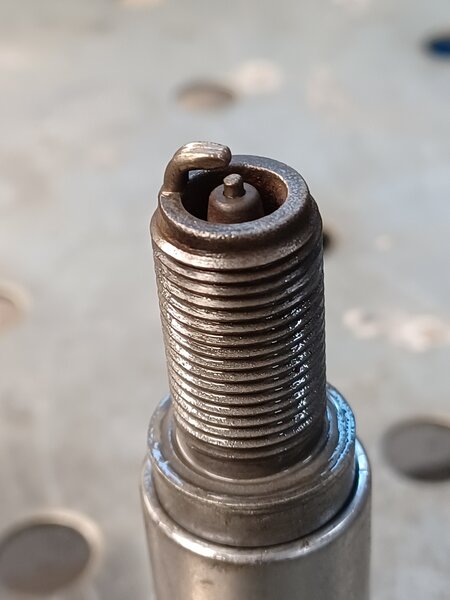

And they look like this after a quick clean with a wire wheel:

Right bank (1357) Looks like this before cleaning:


I clean them all and put them back in and the car runs it's number again.
1. Too rich?
2. Why the difference between banks?

Would you clean them and keep using them (what I've been doing) or replace them (these plugs aren't cheap, $180 for a set and there are only 2 companies making a cold enough plug for this motor) or something else?

Why do those plugs look so old. I can run a set of plugs for over three years and they don’t look that worn.

Those plugs are beyond reliable use .
New plugs, - you may pick up a bit .
Great ignition system, I kinda would have expected some misfire outta them.
jmo

wire wheeling won't clean the porcelain properly, i'm kind of shocked you aren't getting random dropped cyls.. As far what what's causing it.. no idea but i would be carrying a lot of spare plugs :)

BTW.. i am not against cleaning and reusing plugs, they make small portable spark plug sandblasters specifically for the job that will clean them properly.. just make sure they are 100% free of any sand down inside before putting them back in

RockinRobin said:
Setup:
Gen3 Hemi racing motor NA 13.5:1 compression running on 110 racing fuel which has purple dye in it.
Holly Sniper 4500 TBI fuel injection and Mopar Drag Pak intake. Ported Eagle heads. Brisk ER14S plugs.
After 5 passes it slows down by 20 numbers and the plugs look like this:
left bank (2468):
View attachment 1716122298
And they look like this after a quick clean with a wire wheel:
View attachment 1716122299
Right bank (1357) Looks like this before cleaning:
View attachment 1716122300

I clean them all and put them back in and the car runs it's number again.
1. Too rich?
2. Why the difference between banks?

Would you clean them and keep using them (what I've been doing) or replace them (these plugs aren't cheap, $180 for a set and there are only 2 companies making a cold enough plug for this motor) or something else?
Click to expand...
It looks like the ground strap and electrode are eroded, even on the better running side. Like mentioned, I would lean towards new plugs first.

Those electrodes are worn terribly. Look at how rounded the edges are. They have sharp, crisp, square corners when new or in good shape. Those are hideous. As for what's causing the one bank to look all crusty, if I had to wager a GUESS......you won't like it. I'm thinking a compromised head gasket.

RockinRobin said:
Setup:
Gen3 Hemi racing motor NA 13.5:1 compression running on 110 racing fuel which has purple dye in it.
Holly Sniper 4500 TBI fuel injection and Mopar Drag Pak intake. Ported Eagle heads. Brisk ER14S plugs.
After 5 passes it slows down by 20 numbers and the plugs look like this:
left bank (2468):
View attachment 1716122298
And they look like this after a quick clean with a wire wheel:
View attachment 1716122299
Right bank (1357) Looks like this before cleaning:
View attachment 1716122300

I clean them all and put them back in and the car runs it's number again.
1. Too rich?
2. Why the difference between banks?

Would you clean them and keep using them (what I've been doing) or replace them (these plugs aren't cheap, $180 for a set and there are only 2 companies making a cold enough plug for this motor) or something else?
Click to expand...
If 1 whole bank is different from another in a pushrod engine, typically I would say there is a head gasket issue. Cam doesn't care one side or another, TBI on a single plane intake shouldn't care side to side either. If coil over plug set up, then possibly a harness issue to those coils.

According to Brisk, the 14 is not cold. It is to the hot side of center.
briskracing.com

Heat Range Cross Reference Table

HEAT RANGE COLD HOT BRISK 8 10 12 14 15 17 NGK 10 9 8 7 6 5 DENSO 31 27 24 22 20 16 BOSCH BRISK F6DC DR14YS F6DTC FR6DTC FR6DC F6DP F6DSR FR6DS BOSCH BRISK F7DC DR14YS FR7LDC F7DTC FR7DTC FR7DC FR7DP BOSCH BRISK F8DC DR14YS F9DC FR8LDC FR8DC FR9DC FR8DS BOSCH BRISK F6DTC DR14YS-9 (gap...
briskracing.com briskracing.com

RustyRatRod said:
According to Brisk, the 14 is not cold. It is to the hot side of center.
briskracing.com

Heat Range Cross Reference Table

HEAT RANGE COLD HOT BRISK 8 10 12 14 15 17 NGK 10 9 8 7 6 5 DENSO 31 27 24 22 20 16 BOSCH BRISK F6DC DR14YS F6DTC FR6DTC FR6DC F6DP F6DSR FR6DS BOSCH BRISK F7DC DR14YS FR7LDC F7DTC FR7DTC FR7DC FR7DP BOSCH BRISK F8DC DR14YS F9DC FR8LDC FR8DC FR9DC FR8DS BOSCH BRISK F6DTC DR14YS-9 (gap...
briskracing.com briskracing.com
Click to expand...
Interesting. i started out running 12's with this combo years ago, but on advice from a competent nationally known engine builder I switched to 14's on this build. I wonder if I should go back to 12's?

To those who were thinking head gasket, I was thinking the same thing. since it only happens after the engine has heat soaked, I guess I should test it with a hot engine.

RockinRobin said:
Interesting. i started out running 12's with this combo years ago, but on advice from a competent nationally known engine builder I switched to 14's on this build. I wonder if I should go back to 12's?
Click to expand...
I'll be damned if I'd run those overpriced trinkets. Champion or any other brand will have plugs that will work just fine. Remember, STOCK Max Wedges had 13.5:1 and ran Champion plugs.....and WON a boatload of races!

Last edited:
RustyRatRod said:
I'll be damned if I'd run those overpriced trinkets. Champion or any other brand will have plugs that will work just fine. Remember, STOCK Max Wedges has 13.5:1 and ran Champion plugs.....and WON a boatload of races!
Click to expand...
Please direct me to a cross reference table that will do Brisk to Champion or Brisk to NGK or Denso or something cheaper.

I gap my plugs close (.028-.030) and I never see this issue I’m pretty sure I put my AR3911 Autolite plugs in my 408 that I had in my 422 for five years. Why waste money.

RockinRobin said:
All that chart is is heat range.
Click to expand...
Correct. That's all you need. Just look up a stock plug in each of those brands and change to the proper heat range represented in the chart!

When I saw the first plug I thought it must have been sitting in an engine with water in its cylinder, looks rusted.
