    Here's a step by step disassembly of one of the "Ready to Run" HEI SB units. (Continuous Edit so please be patient)

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

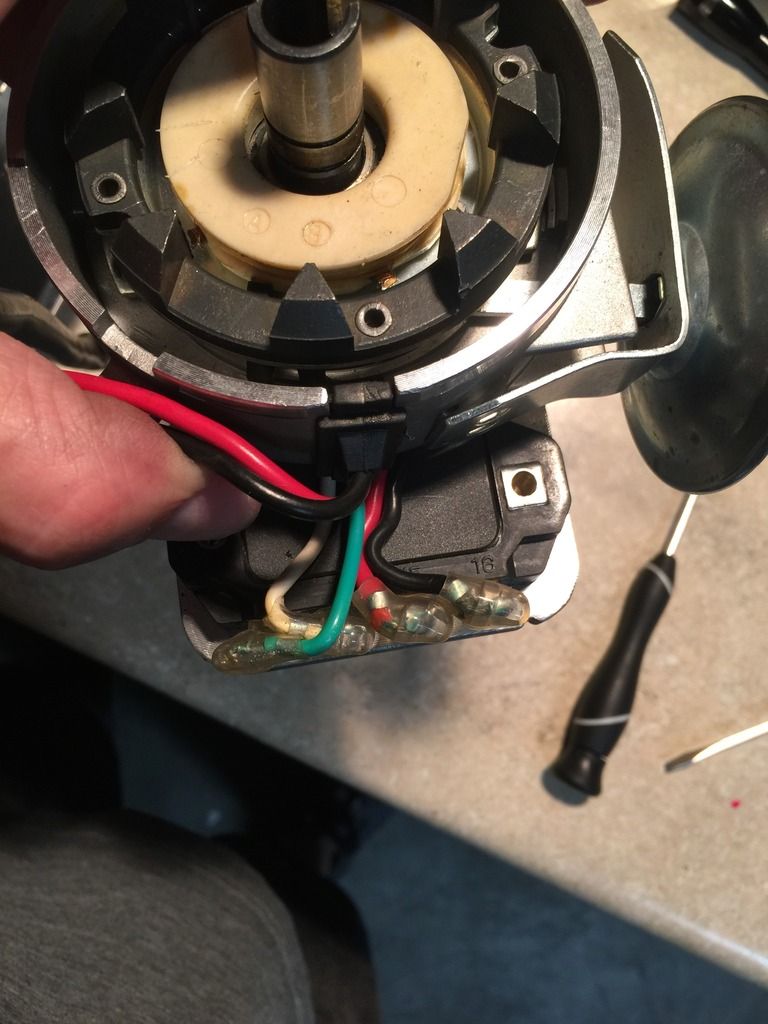

    Remove HEI Cover and unscrew Vacuum advance.

    [​IMG]

    Remove ruber wiring grommet to gain access to vacuum advance lever

    [​IMG]
    [​IMG]

    Look inside (where green wire is in picture) and you should see the vacuum advance lever hooked onto a nub. Pry the lever downwards while turning the advance counter clockwise and it will pop off. Remove vacuum advance.
    [​IMG]

    This is a picture of the vacuum advance nub.

    [​IMG]

    Now you can rotate the disc to remove the allen bolts holding down the assembly.

    [​IMG]

    Removed, exposes the springs and weights.

    [​IMG]

    To adjust curve bend the spring hold down "hooks".

    [​IMG]

    Hei Module

    [​IMG]
    [​IMG]

    Reassemble.

    Last edited: Apr 12, 2017
  2. seabee

    seabee FABO Gold Member FABO Gold Member

    Messages:
    2,488
    Likes Received:
    657
    Joined:
    Dec 20, 2009
    Location:
    Bonita, CA
    Local Time:
    8:29 AM
    There is also an access on the side where I assume you can bend the spring retainers to adjust the curve.
    [​IMG]
    [​IMG]

    • Like Like x 2
    • Johnny Mac

      Johnny Mac www.blueprintengines.com FABO Vendor

      Messages:
      4,018
      Likes Received:
      3346
      Joined:
      Jul 10, 2010
      Location:
      OHIO
      Local Time:
      11:29 AM
      This was too...? lock it out? or replace the mag pickup?

      • Like Like x 1
      • mbaird

        mbaird mbaird

        Messages:
        7,799
        Likes Received:
        4632
        Joined:
        Dec 10, 2005
        Location:
        boise, Id
        Local Time:
        9:29 AM
        Is this to fix an issue ? Have you run it ?
        Is this a quality piece ?
        I'd like to see one run on a Dizzy machine to check curve and such....

        • Like Like x 1
        • seabee

          seabee FABO Gold Member FABO Gold Member

          Messages:
          2,488
          Likes Received:
          657
          Joined:
          Dec 20, 2009
          Location:
          Bonita, CA
          Local Time:
          8:29 AM
          An attempt to adjust the curve. Was coming in way too fast for my setup.

          After a test drive and timing it out I have gained 500rpm to mechanical advance.

        • Johnny Mac

          Johnny Mac www.blueprintengines.com FABO Vendor

          Messages:
          4,018
          Likes Received:
          3346
          Joined:
          Jul 10, 2010
          Location:
          OHIO
          Local Time:
          11:29 AM
          Thats cool you were able to adjust it. I always sell these as non adjustable, so you have one up on me....and i sell them.lol

          do you feel that access port would save this trouble? or not really? i imagine you'd have limited adjust-ability by bending tabs with a screwdriver....so i never advised it.
          learn something every day. cool!

          • Like Like x 1
          • mbaird

            mbaird mbaird

            Messages:
            7,799
            Likes Received:
            4632
            Joined:
            Dec 10, 2005
            Location:
            boise, Id
            Local Time:
            9:29 AM
            what was the stock curve ?

          • seabee

            seabee FABO Gold Member FABO Gold Member

            Messages:
            2,488
            Likes Received:
            657
            Joined:
            Dec 20, 2009
            Location:
            Bonita, CA
            Local Time:
            8:29 AM
            My Opinion: It is a moderate to well-built Chinese distributor.

            I bought it on Ebay ($45) while chasing ignition ghosts a few years ago (was not the fix). It works. I have put a lot of miles on it. Assumed I would put the MOPAR dizzy back in if it ever gave me problems. See a lot of Q's on here about them so thought I would share.


            I never did like the curve though. Out of the box mine was coming all in by 1650 with 20' of mechanical advance. After this adjustment I still have 20' advance but it comes in 10' by 1500 and 20' at 2100. My setup likes it so far.

          • seabee

            seabee FABO Gold Member FABO Gold Member

            Messages:
            2,488
            Likes Received:
            657
            Joined:
            Dec 20, 2009
            Location:
            Bonita, CA
            Local Time:
            8:29 AM
            I am still dialing it in so might give the screwdriver "cheat" a try and let you know. The tabs are fairly easy to bend. It's not a bad piece. And even though I am not fond of ChiCom parts I do think something like this can get some cars on the road and out of their garages. I do eventually want to upgrade my mopar dist to HEI and dial it in as best as possible.

          • mbaird

            mbaird mbaird

            Messages:
            7,799
            Likes Received:
            4632
            Joined:
            Dec 10, 2005
            Location:
            boise, Id
            Local Time:
            9:29 AM
            I run a HEI on my 68 Barracuda and I like it. But for my 340 Swinger I am trying to keep engine looking as stock as possible so I
            like the idea of the all in one setup that will look more like a points dizzy and kinda hide the module.
            Is the Vacuum Advance adjustable ?

          • seabee

            seabee FABO Gold Member FABO Gold Member

            Messages:
            2,488
            Likes Received:
            657
            Joined:
            Dec 20, 2009
            Location:
            Bonita, CA
            Local Time:
            8:29 AM
            Unfortunately no.

          • Johnny Mac

            Johnny Mac www.blueprintengines.com FABO Vendor

            Messages:
            4,018
            Likes Received:
            3346
            Joined:
            Jul 10, 2010
            Location:
            OHIO
            Local Time:
            11:29 AM
            Yes I'm very familiar with these, I just never messed with the advance as usually we upgrade people to a pro billet type if they want that feature, especially with the vac being fixed. We have great luck with them for mild builds. I don't know how ebay guys sell them for $45 though. I think mine are 60. But at least you have a face to a name and a warranty. To each his own however. I know you bought yours years ago. I fully believe there are a few companies in China making these. Mine have always been nice distributors as your describe yours....but man we have seen some junk versions at swap meets. Ugly warped castings and such

            • Like Like x 1
            • ken5124

              ken5124 65 Valiant Signet

              Messages:
              615
              Likes Received:
              83
              Joined:
              Feb 18, 2007
              Location:
              Winnipeg, Manitoba
              Local Time:
              10:29 AM
              I use one just like that. I removed the HEI Module and use just the pickup module wires to fire my MSD 6AL works fine and it alleviates the usual Mopar Wobbly vacuum advance issue.
              I think the 8 point rotor wheel helps too

              Great jobs with the pictures.. I used pictures of a Bosch Holden V8 Distributor found on the internet, to figure out how it came apart.

              Ken
