This cam came out of a rebuilt 340 . The only numbers/letters on it are - (CCS 644) . Numbers/letters are on the back side of the cam . We thought it was a Comp Cams , so we called . They said there would be some more numbers on it but , , there isn't . To that while still on the phone , Comp says it's not there's ? ? So , if anyone recognizes these numbers send us a message . Thanks and Merry Christmas . . .
Camshaft : who's cam is this ? Need specs .
- Thread starter The Cuda
- Start date
-
Looks suspiciously like an old Crane number.

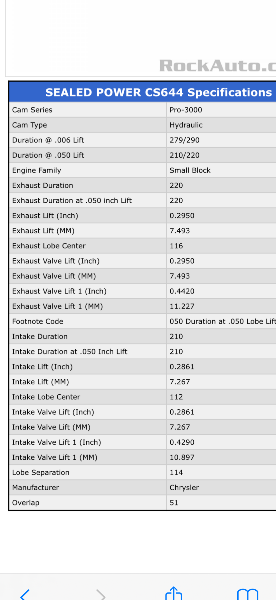

This is what I got from Google, looks like a 340 replacement cam
| Cam Series | Pro-3000 |
| Cam Type | Hydraulic |
| Duration @ .006 Lift | 279/290 |
| Duration @ .050 Lift | 210/220 |
| Engine Family | Small Block |
| Exhaust Duration | 220 |
| Exhaust Duration at .050 inch Lift | 220 |
| Exhaust Lift (Inch) | 0.2950 |
| Exhaust Lift (MM) | 7.493 |
| Exhaust Lobe Center | 116 |
| Exhaust Valve Lift (Inch) | 0.2950 |
| Exhaust Valve Lift (MM) | 7.493 |
| Exhaust Valve Lift 1 (Inch) | 0.4420 |
| Exhaust Valve Lift 1 (MM) | 11.227 |
| Footnote Code | 050 Duration at .050 Lobe Lift |
| Intake Duration | 210 |
| Intake Duration at .050 Inch Lift | 210 |
| Intake Lift (Inch) | 0.2861 |
| Intake Lift (MM) | 7.267 |
| Intake Lobe Center | 112 |
| Intake Valve Lift (Inch) | 0.2861 |
| Intake Valve Lift (MM) | 7.267 |
| Intake Valve Lift 1 (Inch) | 0.4290 |
| Intake Valve Lift 1 (MM) | 10.897 |
| Lobe Separation | 114 |
| Manufacturer | Chrysler |
| Overlap | 51 |
[th]
LED POWER CS644 Specifications
[/th]
Well there you have it!
Coupman35
Active Member
that good info i was just looking at one of those cam yesterday same cs644 number was wondering what the spec where
-
