New aligment specs.. still feels vague

Discussion in 'Suspension, Steering and Chassis' started by mbaird, Aug 8, 2018.

  1. mbaird

    mbaird mbaird FABO Gold Member

    Messages:
    3,637
    Likes Received:
    1019
    Joined:
    Dec 10, 2005
    Location:
    boise, Id
    Local Time:
    3:46 PM

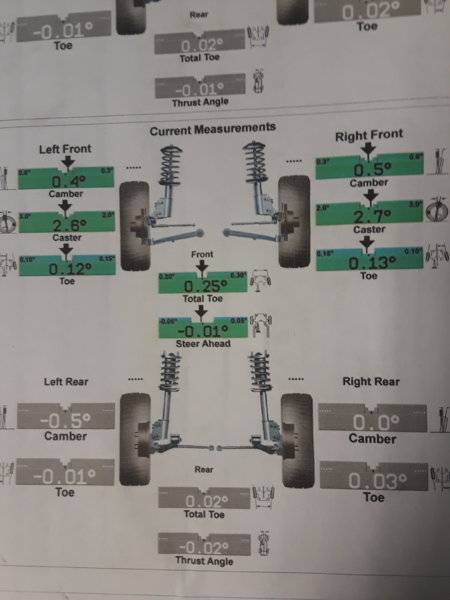

    Just got my barracuda aligned to the following specs but the car doesnt feel quite as planted or stable as it should.
    Any recomdations ?


  2. '63GT

    '63GT Well-Known Member

    Messages:
    391
    Likes Received:
    293
    Joined:
    Jun 9, 2018
    Location:
    Turlock, CA.
    Local Time:
    2:46 PM
    Too much ride height possibly? If the car does not sit level, (too high in the front) it will feel 'floaty' in the front end. I have seen new gas filled shocks change the ride height too. it takes some time for them to settle down.

    • Like Like x 1
    • Agree Agree x 1
    • KosmicKuda

      KosmicKuda FABO Gold Member FABO Gold Member

      Messages:
      1,392
      Likes Received:
      279
      Joined:
      Jan 15, 2011
      Location:
      N Ohio
      Local Time:
      5:46 PM
      Car looks a little high in the front in your Avatar. I watched my alignment guy adjust ride height by measuring from the bottom of the wheel arch to the deck. That could vary by a half inch. FSM has correct method.
      I used similar specs for my 68 Barracuda and it tracks like a freight train. What kind of tires on the front? Check the tire pressure? Too high? Mine are 215-60x15 radials and I prefer slightly nose down.

    • Frnknsteen

      Frnknsteen FABO Gold Member FABO Gold Member

      Messages:
      421
      Likes Received:
      222
      Joined:
      May 26, 2011
      Location:
      Spencer, IN
      Local Time:
      5:46 PM
      Caster and Toe-in look pretty good, but it looks like Camber is positive. I prefer to -.25 to -.75 degrees of Camber. Are all the front suspension and steering components in good shape?

      • Agree Agree x 2
      • Frnknsteen

        Frnknsteen FABO Gold Member FABO Gold Member

        Messages:
        421
        Likes Received:
        222
        Joined:
        May 26, 2011
        Location:
        Spencer, IN
        Local Time:
        5:46 PM
      • ChuckDock

        ChuckDock Well-Known Member

        Messages:
        92
        Likes Received:
        31
        Joined:
        Jan 7, 2018
        Location:
        Goodrich, MI
        View My Photos
        Local Time:
        5:46 PM
        LOL, I should probably change its title since it did progress like you mentioned.

      • mbaird

        mbaird mbaird FABO Gold Member

        Messages:
        3,637
        Likes Received:
        1019
        Joined:
        Dec 10, 2005
        Location:
        boise, Id
        Local Time:
        3:46 PM
        I do have my ride height set a bit high for tire clearance and stance.. Those slots have the wrong offset so I plan on going back to stock steelies and poverty caps.
        The tires are 215/70 14 Michelins and I might have are inflated to around 39lbs... I meant to bring them down to 32.

      • mbaird

        mbaird mbaird FABO Gold Member

        Messages:
        3,637
        Likes Received:
        1019
        Joined:
        Dec 10, 2005
        Location:
        boise, Id
        Local Time:
        3:46 PM
        all components are new.

      • 69FBCuda

        69FBCuda Life in the Fast Lane

        Messages:
        829
        Likes Received:
        241
        Joined:
        Aug 28, 2014
        Location:
        Florida
        View My Photos
        Local Time:
        5:46 PM
        Cowbell, it needs more Cowbell!

        Blue Oyster Cult - (Don't Fear) The Reaper 1976 [Studio Version]cowbell link in description


        • Like Like x 3
        • TF360

          TF360 Well-Known Member

          Messages:
          1,051
          Likes Received:
          245
          Joined:
          Apr 25, 2014
          Location:
          Florida
          Local Time:
          5:46 PM
          That's a tall tire you have up front too. Don't know how that help or hurt things

        • 69FBCuda

          69FBCuda Life in the Fast Lane

          Messages:
          829
          Likes Received:
          241
          Joined:
          Aug 28, 2014
          Location:
          Florida
          View My Photos
          Local Time:
          5:46 PM
          Try it on different road surfaces... surface vs highway....crowned vs flat and keep it out of the groove

        • Frnknsteen

          Frnknsteen FABO Gold Member FABO Gold Member

          Messages:
          421
          Likes Received:
          222
          Joined:
          May 26, 2011
          Location:
          Spencer, IN
          Local Time:
          5:46 PM
          No worries,... It was a natural progression

        • mbaird

          mbaird mbaird FABO Gold Member

          Messages:
          3,637
          Likes Received:
          1019
          Joined:
          Dec 10, 2005
          Location:
          boise, Id
          Local Time:
          3:46 PM
          I had it tracking tighter last year so I think it is the alignment specs .... I put a new motor in it recently and dropped the K-member and suspension out the bottom.

        • replicaracer43

          replicaracer43 Old school member

          Messages:
          3,637
          Likes Received:
          1983
          Joined:
          Oct 10, 2008
          View My Photos
          Local Time:
          4:46 PM
          Should NOT have positive camber! Needs to be zero or negative a bit, and more positive caster would be helpful. Also, is the rear axle bent? Shouldn't be 1/2 negative back there

        • Frnknsteen

          Frnknsteen FABO Gold Member FABO Gold Member

          Messages:
          421
          Likes Received:
          222
          Joined:
          May 26, 2011
          Location:
          Spencer, IN
          Local Time:
          5:46 PM
          That does seem like quite a bit. Mine were off a bit too, but mine were only -.02 degrees on left and -.1 degree on right. .5 degrees of rear camber does seem like a bit more than what could be considered normal. I don't know that worn bearings could even account for that much.

          Could one of the back tires been low? You'd think passenger side would have shown positive camber then.

        • mbaird

          mbaird mbaird FABO Gold Member

          Messages:
          3,637
          Likes Received:
          1019
          Joined:
          Dec 10, 2005
          Location:
          boise, Id
          Local Time:
          3:46 PM
          I set tire. pressure high if the car is going to sit idle so it hould have been high if anything.
          New Moser axles and green bearings

        • mbaird

          mbaird mbaird FABO Gold Member

          Messages:
          3,637
          Likes Received:
          1019
          Joined:
          Dec 10, 2005
          Location:
          boise, Id
          Local Time:
          3:46 PM

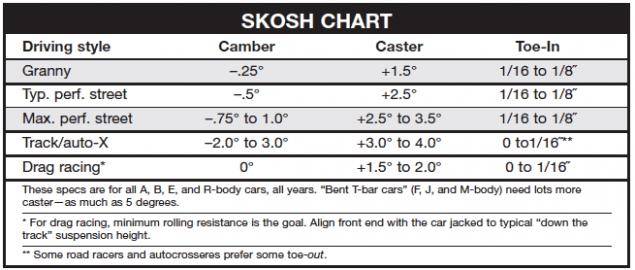

          I used the Skosh chart Street Performance specs..
          I will try the Max Perf. specs and see what that gets me.

        • BigBlockMopar

          BigBlockMopar BigBlockMember

          Messages:
          1,498
          Likes Received:
          452
          Joined:
          May 1, 2011
          Location:
          Netherlands
          Local Time:
          11:46 PM
          Another alignment won't make that much difference.
          At least make sure Camber is negative.

          I would forget all about the nose-high stance and mount some steel wheels in place right away and get the car 'stanced' and aligned properly.

          • Like Like x 1
          • Agree Agree x 1
          • mbaird

            mbaird mbaird FABO Gold Member

            Messages:
            3,637
            Likes Received:
            1019
            Joined:
            Dec 10, 2005
            Location:
            boise, Id
            Local Time:
            3:46 PM
            I work at a dealership and one of the techs I know is doing it so we have access to the rack.

            I already have new 15x8 Stealies for the back . Just need to order a few sets of SS radials for the back. 1 set for this car and another for the 4sp Swinger...

          • RustyRatRod

            RustyRatRod Just another dumbass. Technical Editor

            Messages:
            46,199
            Likes Received:
            10568
            Joined:
            Jun 7, 2010
            Location:
            Georgia
            View My Photos
            Local Time:
            5:46 PM
            The spec for camber is -.5 to + .5 so Making the camber negative will not have an effect, IMO. Look at the toe. That's in DEGREES. It needs more toe in and it will be fine.

            • Disagree Disagree x 1
            • brian6pac

              brian6pac Well-Known Member

              Messages:
              2,828
              Likes Received:
              1376
              Joined:
              Nov 15, 2016
              Location:
              N.E.Ohio
              Local Time:
              5:46 PM
              I bet it drifts to the right with those settings

            • grimreaper

              grimreaper Cross Member

              Messages:
              3,572
              Likes Received:
              357
              Joined:
              Jul 8, 2005
              Location:
              Gillette, WY
              View My Photos
              Local Time:
              3:46 PM
              I agree with Rusty. Needs more toe. Shoot for .5 degree neg camber. .60 to .120 toe and keep the caster in the 2.5 to 3 range and you should be good.

              • Disagree Disagree x 1
              • 72bluNblu

                72bluNblu FABO Gold Member FABO Gold Member

                Messages:
                8,835
                Likes Received:
                2755
                Joined:
                Nov 28, 2008
                Location:
                NorCal
                Local Time:
                2:46 PM
                Camber spec for what is -.5 to +.5? Because that's not the factory spec, and it's not from the SKOSH chart which is what should be used with radials.

                Camber for radials should be no more than 0 and preferably -.25 to -.5* for a basic street car.

                And the toe is just fine. That .25* of toe works out to .113" of toe in with a 25.9" tall tire like the OP has, which is just under 1/8".

                Again, that toe reading is just under 1/8" toe in when you convert from degrees to inches. It's just fine.

                Last edited: Aug 8, 2018
                • Agree Agree x 1
                • mvh

                  mvh FABO Gold Member FABO Gold Member

                  Messages:
                  1,311
                  Likes Received:
                  120
                  Joined:
                  Dec 17, 2007
                  Location:
                  Menlo Park, CA
                  Local Time:
                  2:46 PM
                  Disagree... camber should not be positive for radial tires. But I think the ride height is a significant issue. I run 215/70-14s with the front DROPPED 1/2 to 3/4 inch from spec.

                  IME 2nd gen. Barracudas are very twitchy on the freeway if they have a nose-up stance -- it's aerodynamics. Get that nose down.

                  I'm curious what .13 degrees works out to in inches of toe... Offhand I would guess it's not that far off...

                  • Agree Agree x 1
                  • 72bluNblu

                    72bluNblu FABO Gold Member FABO Gold Member

                    Messages:
                    8,835
                    Likes Received:
                    2755
                    Joined:
                    Nov 28, 2008
                    Location:
                    NorCal
                    Local Time:
                    2:46 PM
                    Yeah the toe is just fine. It's a little less than 1/8" toe in.

                    Here's a calculator that can be used to convert from degrees to inches of toe. Just needs the tire height and the angle for one tire. It assumes they're both the same angle, so in this case I entered .125* because one side was .12* and the other was .13*.
                    Convert Toe Degrees to Inches

                    • Thanks! Thanks! x 1
