Show us your home made tools

Shop, Garage and Tools

  1. fishy68

    fishy68 Tyr Fryr's Inc.

    Messages:
    16,584
    Likes Received:
    972
    Joined:
    Jan 11, 2005
    Location:
    Central, IL (Hooterville)
    Local Time:
    11:09 PM
    After another member posted a pic of a home made tool he made I thought to start a thread showing off our home made tools. You know the ones that are usually expensive and you only use once a year. I made a few so I'll start off with a few I made. They aren't necessarily pretty but do the job just fine.

    First 2 pics is a clutch pack spring retainer compressor that I originally built when rebuilding a buddies turbo 400. It also works just fine on Torqueflites. Not pretty but works fine.
    BTW: I use mine in my press but I'm sure you could drill a hole through it and use threaded rod through the middle with a plate on the bottom to pull it together if you don't have a press.

    Second pic is a set of dial indicator extensions I made from 3/8" aluminum round rod. I just unscrew the tip off of the dial indicator and slip on what ever length I need. Allot cheaper than buying 3 different length dial indicators. Only trick was drilling straight into them but with a drill press it isn't hard.

    Third pic is an adjustable pushrod length checker made from 2 old pushrods. I just wacked them in half close to the lifter and ran a thread tap on them and coupled them back together with a long nut I found at ACE hardware. You'll see it works on both ball/ball and ball/cup pushrods and adjusts from 7.2 to 7.8". Only problem is you have to have the intake off to do it cause they won't go through the pushrod opening in the head. Next one I do I think I'll tap the i.d. and use a #8 or #10 screw with lock nuts for the adjuster. I think that should clear the opening in the head.

    Fourth pic is a roller lifter I took the guts out of and made it solid. I use it when degreeing in cams.

    Last 3 pics are a valve spring compressor for changing springs with the engine assembled onto the engine. I mainly use it to install the inner springs after cam break-in. It's real easy to use. Just bolt it down to the rocker shaft bolt holes between the cylinder your going to do. Do one then slide it over and do the other cylinder.

    So if you guys have some other neat tools you would like to share with us please do so. And don't forget the pictures. I think we can all benefit from saving a few bucks.

    Clutch pack compressor cage 1.jpg

    Clutch pack compressor cage 2.jpg

    Dial indicator extensions.jpg

    Pushrod length checker.jpg

    Roller lifter 1.jpg

    Underside of valve spring compressor.jpg

    Valve spring compressor 1.jpg

    Valve spring compressor 2.jpg

    • Like Like x 2
    • Demon416

      Demon416 A-Body

      Messages:
      2,357
      Likes Received:
      31
      Joined:
      Feb 3, 2009
      Location:
      WI.
      Local Time:
      11:09 PM
      Here's some I made.

      First one is a Holley carburetor stand. Hey don't laugh, it works.

      Second one is a spark plug air hose attachment tool. When heads are on engine, this holds valves closed for changing valve springs or seals.

      Third one is an engine plate for pulling engines. This one I made but didn't weld. I don't trust my welding skills.

      Fourth is a tool for turning the adjusters on an 8 3/4 rear. A fine example of my early welding ability. LOL

      carb stand.jpg


      Engine Plate.jpg

      preload adjusters.jpg

      • Like Like x 1
      • jomoper

        jomoper Mope or Nope

        Messages:
        2,942
        Likes Received:
        201
        Joined:
        Aug 18, 2006
        Location:
        NorCal.S.F.bay area
        Local Time:
        9:09 PM

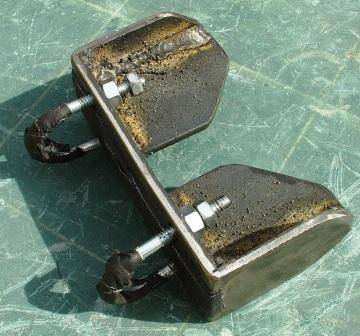

        My down and dirty scrap metal torsion bar remover .

        tea cup metal bits planter box torsion bar tool 010.JPG

        • Like Like x 2
        • fishy68

          fishy68 Tyr Fryr's Inc.

          Messages:
          16,584
          Likes Received:
          972
          Joined:
          Jan 11, 2005
          Location:
          Central, IL (Hooterville)
          Local Time:
          11:09 PM
          Thanks for the posts guys. Great ideas.

        • JayD

          JayD Well-Known Member

          Messages:
          309
          Likes Received:
          5
          Joined:
          Mar 11, 2009
          Location:
          Mojave Desert
          Local Time:
          9:09 PM
          I like that pnuematic valve tool - gotta make one of those!

        • camd64

          camd64 Remember Landy

          Messages:
          1,593
          Likes Received:
          14
          Joined:
          Jun 22, 2008
          Location:
          cedar park, tx
          Local Time:
          9:09 PM
          got tired of renting a trans. jack so i came up with this



          • Like Like x 7
          • fishy68

            fishy68 Tyr Fryr's Inc.

            Messages:
            16,584
            Likes Received:
            972
            Joined:
            Jan 11, 2005
            Location:
            Central, IL (Hooterville)
            Local Time:
            11:09 PM
            Looks good Camd. I always planned on making an attachment for my floor jack but never seemed to get around to it. Maybe one of these days.

          • Daz570

            Daz570 Thread Inturpreter

            Messages:
            148
            Likes Received:
            5
            Joined:
            Jul 27, 2008
            Location:
            Australia
            Local Time:
            2:09 PM
            heres an easy one for anyone to slap together,

            great on the end of a breaker bar for those extra tough bolts, removing glass and windscreens, makes a great clamp in allmost any position, or even that little bit of extra thump to move something stubborn.





            just remember you saw it here first :)















































            A brilliant multi purpose tool :D apparently, theres a beefed up version with a steelcap boot attatched too!!
            [​IMG]

            • Thanks! Thanks! x 1
            • Demon416

              Demon416 A-Body

              Messages:
              2,357
              Likes Received:
              31
              Joined:
              Feb 3, 2009
              Location:
              WI.
              Local Time:
              11:09 PM
              Yup, that's a good way to break a toe! Ouch!

            • abodyhotrod

              abodyhotrod Well-Known Member

              Messages:
              292
              Likes Received:
              2
              Joined:
              Sep 17, 2007
              Local Time:
              11:09 PM
              i make em all the time and am right up there w/ fishy but my spring changer is made out of an old rocker and shaft. will post later for sure i thought about doing this same thread good one fishy.

            • 496dart

              496dart future prostock driver

              Messages:
              437
              Likes Received:
              9
              Joined:
              Nov 4, 2005
              Location:
              des moines Iowa
              Local Time:
              11:09 PM
              cam--

              i need to make one of these soon !! great idea ! are there any issues when you get the trans at an angle ?

              • Like Like x 1
              • Demon416

                Demon416 A-Body

                Messages:
                2,357
                Likes Received:
                31
                Joined:
                Feb 3, 2009
                Location:
                WI.
                Local Time:
                11:09 PM
                Ha! Here's mine. I put this on the floor jack and it lets me rock the tranny around to line everything up. What can I say, it works for me. LOL



                • Like Like x 2
                • camd64

                  camd64 Remember Landy

                  Messages:
                  1,593
                  Likes Received:
                  14
                  Joined:
                  Jun 22, 2008
                  Location:
                  cedar park, tx
                  Local Time:
                  9:09 PM
                  496dart, right now I'm working on one that has an adjuster on it so you can angle it but im going to have to modify the pad on my jack so it can be secured solid. this one works fine for the lighter 904's since you can just pick up the tail to lock it in. i will post some close ups of the mechanism when I get it sorted out.

                  • Like Like x 1
                  • 496dart

                    496dart future prostock driver

                    Messages:
                    437
                    Likes Received:
                    9
                    Joined:
                    Nov 4, 2005
                    Location:
                    des moines Iowa
                    Local Time:
                    11:09 PM
                    demon--that looks easy enough- hard to tell in the pic-what are the dimensions --roughly ?

                  • zack82192

                    zack82192 Member

                    Messages:
                    13
                    Likes Received:
                    4
                    Joined:
                    Jan 8, 2009
                    Local Time:
                    12:09 AM



                    • Like Like x 1
                    • fishy68

                      fishy68 Tyr Fryr's Inc.

                      Messages:
                      16,584
                      Likes Received:
                      972
                      Joined:
                      Jan 11, 2005
                      Location:
                      Central, IL (Hooterville)
                      Local Time:
                      11:09 PM
                      Zack82192 welcome to the board and tell us about your home built tools.

                    • zack82192

                      zack82192 Member

                      Messages:
                      13
                      Likes Received:
                      4
                      Joined:
                      Jan 8, 2009
                      Local Time:
                      12:09 AM
                      thanks well the first one is a stop for when i was installing the wrist pins in my new pistons after the connecting rods where heated up

                      second is a crank shaft polisher i hooked up a low speed drill to the crank shaft polished away

                      • Like Like x 2
                      • fishy68

                        fishy68 Tyr Fryr's Inc.

                        Messages:
                        16,584
                        Likes Received:
                        972
                        Joined:
                        Jan 11, 2005
                        Location:
                        Central, IL (Hooterville)
                        Local Time:
                        11:09 PM
                        I thought that's what they were but didn't want to appear silly if I was wrong. Thanks for the input.

                      • Demon416

                        Demon416 A-Body

                        Messages:
                        2,357
                        Likes Received:
                        31
                        Joined:
                        Feb 3, 2009
                        Location:
                        WI.
                        Local Time:
                        11:09 PM
                        Basically it's made with a piece of 5/8" plywood and firring strips. I just built a box around the jack pedestal. Then I glued some rubber on top for a cushion.

                        • Like Like x 1
                        • SleeperScamp

                          SleeperScamp Well-Known Member

                          Messages:
                          2,081
                          Likes Received:
                          75
                          Joined:
                          May 8, 2006
                          Location:
                          Texas
                          Local Time:
                          11:09 PM
                          My portable bodywork / shop light... Made out of 4' fluorescent light attached to a patio umbrella pole mounted on wheels....

                          • Like Like x 7
                          • 496dart

                            496dart future prostock driver

                            Messages:
                            437
                            Likes Received:
                            9
                            Joined:
                            Nov 4, 2005
                            Location:
                            des moines Iowa
                            Local Time:
                            11:09 PM

                            i made one tonight--out of 3/4 plywood, but mine lets the pan sit down inside the whole deal . The trans came out super easy--i am thinking this will be the 1st time i can put it back in by myself.

                            • Like Like x 1
                            • pettybludart

                              pettybludart Well-Known Member

                              Messages:
                              15,309
                              Likes Received:
                              134
                              Joined:
                              Jul 18, 2008
                              Location:
                              Ontario,Canada
                              Local Time:
                              11:09 PM
                              I,m thinking about making a couple adapt. for the floor jack..
                              1.For a 833,4 speed tranny(they,re frikkin heavy)
                              2.For center sections(easy install or swap)also frikkin heavy!

                              Great ideas guys!!

                              • Like Like x 1
                              • 64dart170

                                64dart170 Well-Known Member

                                Messages:
                                3,417
                                Likes Received:
                                136
                                Joined:
                                Apr 29, 2009
                                Location:
                                Aurora, IN
                                Local Time:
                                12:09 AM
                                I'm going to make 2 of these! So much for need to mount on my cement block walls! Thanks

                                • Like Like x 2
                                • KP

                                  KP Well-Known Member

                                  Messages:
                                  1,603
                                  Likes Received:
                                  4
                                  Joined:
                                  Apr 21, 2006
                                  Location:
                                  York, PA
                                  Local Time:
                                  12:09 AM
                                  That Is Some Great Stuff...

                                  • Agree Agree x 1
                                  • daredevil

                                    daredevil Well-Known Member

                                    Messages:
                                    10,983
                                    Likes Received:
                                    150
                                    Joined:
                                    May 19, 2007
                                    Location:
                                    S/w Houston
                                    Local Time:
                                    11:09 PM
                                    a motorcycle jack works great too. i couldnt do my 4x4 dually without it. i,d hate to drop that on me.
