Slant 6 Alternator Bracket Leak

Slant 6 Engines

  1. cchrishefish

    cchrishefish Well-Known Member

    Messages:
    465
    Likes Received:
    59
    Joined:
    Oct 22, 2009
    Location:
    Syracuse, NY
    Local Time:
    5:05 PM
    Ok, the ice has melted and I pushed my 64 Dart GT halfway out of the garage and I have the charger attached to the battery. Now, after reading Doug Dutra's new book, I discovered an oil leak where the alternator mounts attach to the engine. Therefore, my mechanic whom installed the remanufactured engine also did not know that the bolts need some type of sealant to keep that area from leaking oil. Is teflon tape appropriate for this job? And, do I need to completely remove the alternator to do this?

  2. RedFish

    RedFish Well-Known Member

    Messages:
    23,171
    Likes Received:
    2080
    Joined:
    Sep 5, 2007
    Local Time:
    4:05 PM
  3. cchrishefish

    cchrishefish Well-Known Member

    Messages:
    465
    Likes Received:
    59
    Joined:
    Oct 22, 2009
    Location:
    Syracuse, NY
    Local Time:
    5:05 PM
    Thank you, if I want to do it right, I get my information in here!

  4. Badvert65

    Badvert65 Long Time Mopar Nut

    Messages:
    268
    Likes Received:
    46
    Joined:
    Sep 21, 2014
    Location:
    Brightwood, VA
    Local Time:
    5:05 PM
    It may be easier to reach the bolts if you take the alternator off.

  5. RustyRatRod

    RustyRatRod 30 Degrees Outta Whack FABO Gold Member

    Messages:
    49,945
    Likes Received:
    16523
    Joined:
    Jun 7, 2010
    Location:
    Georgia
    Local Time:
    5:05 PM
    I wouldn't use Teflon tape. That's for tapered pipe threads. You can use the thread sealant referred to above, or what I use is red high temp RTV. Works very well. But they do need something.

    • Agree Agree x 2
    • Slantsix64

      Slantsix64 Well-Known Member

      Messages:
      1,308
      Likes Received:
      298
      Joined:
      May 11, 2014
      Location:
      SGV
      Local Time:
      4:05 PM
      Doesn't it say what to use in the book? I would go with RRR silicone, also permatex thread sealer that was also suggested.

      Last edited: Mar 16, 2019
    • cchrishefish

      cchrishefish Well-Known Member

      Messages:
      465
      Likes Received:
      59
      Joined:
      Oct 22, 2009
      Location:
      Syracuse, NY
      Local Time:
      5:05 PM
      No the new Dutra book, page 117, does not indicate what sealer to use. That is why I asked the question.

      • Like Like x 1
      • Badvert65

        Badvert65 Long Time Mopar Nut

        Messages:
        268
        Likes Received:
        46
        Joined:
        Sep 21, 2014
        Location:
        Brightwood, VA
        Local Time:
        5:05 PM
        I have used both liquid Teflon and silicon sealer. It doesn't really matter what kind of sealer you use there. It isn't really a critical place, just somewhere prone to leaking.

      • cchrishefish

        cchrishefish Well-Known Member

        Messages:
        465
        Likes Received:
        59
        Joined:
        Oct 22, 2009
        Location:
        Syracuse, NY
        Local Time:
        5:05 PM
        I made the repair this morning and I was able to perform the task without removing the alternator. It was so easy even a caveman can do it.

      • BillGrissom

        BillGrissom Well-Known Member

        Messages:
        7,234
        Likes Received:
        332
        Joined:
        May 10, 2009
        Location:
        Sacramento
        Local Time:
        2:05 PM
        The Permatex thread sealer should work. I have used Permatex gasket sealant which is a sticky purple liquid. It stays flexible and cleans up easy w/ ethanol. Use it so often I keep a can on my work table.

      • cchrishefish

        cchrishefish Well-Known Member

        Messages:
        465
        Likes Received:
        59
        Joined:
        Oct 22, 2009
        Location:
        Syracuse, NY
        Local Time:
        5:05 PM
        Yes, the Permatex worked very well, no more leaking, I am very happy with the product. I am happy I found the leak problem in the new Doug Dutra book. I am learning more than I expected by reading through his chapters.

      • Nigel Hely

        Nigel Hely 64DartDownUnder

        Messages:
        201
        Likes Received:
        71
        Joined:
        Sep 13, 2016
        Location:
        Blue Mountains, Australia
        Local Time:
        7:05 AM
        Agreed, Permatex or Loctite hydraulic/thread sealant...

      • cchrishefish

        cchrishefish Well-Known Member

        Messages:
        465
        Likes Received:
        59
        Joined:
        Oct 22, 2009
        Location:
        Syracuse, NY
        Local Time:
        5:05 PM

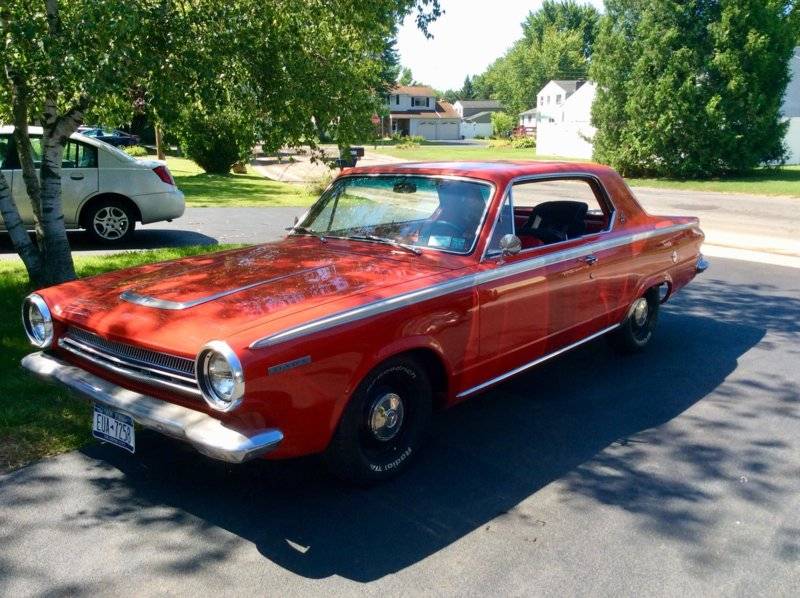

        Nice Dart GT Nigel, what rims and tires are you using? Here are some pictures of mine with my boys cleaning her up after the distributor install.

        dart wash 2.jpg

        dart wash.jpg


        • Like Like x 2
        • cchrishefish

          cchrishefish Well-Known Member

          Messages:
          465
          Likes Received:
          59
          Joined:
          Oct 22, 2009
          Location:
          Syracuse, NY
          Local Time:
          5:05 PM
        • Nigel Hely

          Nigel Hely 64DartDownUnder

          Messages:
          201
          Likes Received:
          71
          Joined:
          Sep 13, 2016
          Location:
          Blue Mountains, Australia
          Local Time:
          7:05 AM
          Great car, that looks awesome! I toyed with running deep dish black rims, unfortunately (or fortunately, depand how you see it) the rims I had lying around were factory 14" x 6" Hemi Pacer Track Pack rims, holy grail of car parts, so I wasn't going to get those cut and widened, no sir!

          Here's a 'car wash picture" of my own, plus a couple of others. I've fitted all the chrome strips back on the bonnet since these photos.

          The wheels in the photo are Australian-made Aunger "Hustler", date-stamped 1967 so they could be period correct for the car, but who cares, I reckon these are the best looking wheel ever on these and Valiants from same era... Similar to ROH "El Camino". The rims are 14" x 7" with 4" backspace, and correct 4"PCD. I think keeping early bolt pattern adds value to a car thats basically authentic, with a few 'period mods' like disc brakes. The tyres are 225/65/14. Hope that helps...

          I can take more detailed photos and measurements if you need them.

          IMAG2411.jpg IMAG2072.jpg
