    Some photos of front suspension.


    Attached Files:

  2. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    Found some Mopar center caps to replace the American Muscle ones, but they won't snap into place because the Wilwood axle grease cap is too large.:banghead:


    Attached Files:

  3. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    I had a similar experience with my Superbird restoration. I had traced all the previous owners of the car and they all lived in Ontario. Last fall I got a call out of the blue from an older gentleman's son in Nova Scotia (half way across Canada from me) who said his dad used to own the car!! I said - no way. I know all the owners and they are all in Ontario. His son tracked me down after seeing articles about my Superbird in magazines.
    He said his dad owned a used dealership in Truro NS and used to come to Barrie, ON to buy some Mopars at Jackson's Motors. He made a deal for a Limelight Superbird and bought it and took it to Nova Scotia. He never sold it , nor was it registered since he drove it as a dealer car. Several months later, he got a call that the dealer in Barrie wanted to buy it back and use as a pace car. My restored Superbird was that same pace car!!!!

    I have talked to his dad and sent him a link to a video I made of the car back at the same speedway where it used to be the pace car. His son said that his dad cried through the whole thing after seeing "his car" again.
    There is amazing history on some of these old Mopars!!
    [ame="https://www.youtube.com/watch?v=5GoMcVWETE8"]HD Video of Superbird Pace Car at Sunset Speedway - YouTube[/ame]

  4. mopar48

    mopar48 Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Sep 29, 2013
    Location:
    Ontario
    Local Time:
    6:45 PM
    That superbird is awesome!!!!!
    My son and have run at sunset for years. The last three, we've not had time to run ever week. car number 48, nick name Mr. White walls. we are running Dodge Neon's Now.
    [ame="http://www.youtube.com/watch?v=koX7hqOMbaI&list=UUsojkOkPQy8xmuiCQxojwmA"]Sunset Speedway Mini-Stock Feature - YouTube[/ame]

  5. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    Thanks
    Sunset promoters said last year they may want us to come back again this year to pace a race night. Stay tuned and come and see me if you see us there.
    Jim

    PS I spent 12 years (not full time) restoring the Superbird. A labour of love!!

  6. mopar48

    mopar48 Member

    Messages:
    14
    Likes Received:
    0
    Joined:
    Sep 29, 2013
    Location:
    Ontario
    Local Time:
    6:45 PM
    That would be awesome Jim, I would like to go for a ride in the cuda to:)
    I too have been working on a car for 12 years should be out on the road this year.

    My son "Nick" would like to start racing full time again year this.
    We started racing at sunset when Nick was 13 he was 15 in that race
    Here is link to the Neon racing, the links are not follow us but we are in the video and you can here us winning :)
    [ame="http://www.youtube.com/watch?v=_rPzF5-qWi8"]Sunset Speedway June 4th 2011 Mini-Stock Feature - YouTube[/ame]

  7. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    WE finally got the kitchen reno finished - now I can get back at that Cuda!!

    I didn't like the Lokar emergency brake cable kit that came with the rear end because it is not self equalizing. (ie the connecting block means that both cables get pulled together.)
    So I re-engineered (ie modified!!) the cables and went back to the original Mopar design that will ensure equalization between the 2 sides.


    Attached Files:

  8. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    Made a couple of brackets and mounted a Heatshield Products # 110614 heatshield between the headers and the clutch slave.


    Attached Files:

  9. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    A few photos of the bottom of the car. It is now ready to roll off my son's hoist and back to my garage to finish everything on the top side.


    Attached Files:

  10. Tjhoward84

    Tjhoward84 1969 Barracuda Convertible

    Messages:
    171
    Likes Received:
    23
    Joined:
    Mar 19, 2014
    Location:
    Bothell
    Local Time:
    3:45 PM

    WOW!!! That is beautiful!!!!

  11. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    Thanks

  12. hemisedan

    hemisedan FABO Gold Member FABO Gold Member

    Messages:
    386
    Likes Received:
    105
    Joined:
    Mar 25, 2006
    Location:
    Central Iowa
    Local Time:
    5:45 PM
    Really detailed nicely. Also, love your color and I will be using that color when the Valiant gets to that point. Same for the SRT hemi with 5-speed too.

  13. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    Back in my garage and ready to start reassembling the topside.


    Attached Files:

  14. Joe Dokes

    Joe Dokes Well-Known Member

    Messages:
    1,130
    Likes Received:
    103
    Joined:
    Apr 21, 2011
    Location:
    Long Beach Ca
    Local Time:
    3:45 PM
    Please, please, please tell me you drove it around the block like that! :D

  15. Uhcoog1

    Uhcoog1 Well-Known Member

    Messages:
    892
    Likes Received:
    24
    Joined:
    Feb 7, 2011
    Location:
    Houston
    Local Time:
    5:45 PM
    It's really coming together beautifully!

  16. RealWing

    RealWing FABO Gold Member FABO Gold Member

    Messages:
    1,118
    Likes Received:
    809
    Joined:
    Jun 14, 2010
    Location:
    Ontario, Canada
    Local Time:
    6:45 PM
    I really, really, really would have liked to do that! Unfortunately none of the FAST electronics are installed or connected yet.
    Jim

    • Like Like x 1
    • RealWing

      RealWing FABO Gold Member FABO Gold Member

      Messages:
      1,118
      Likes Received:
      809
      Joined:
      Jun 14, 2010
      Location:
      Ontario, Canada
      Local Time:
      6:45 PM
      We were bleeding and bleeding the brakes but could not get a solid hard pedal. Then we noticed that the Wilwood calipers were visibly flexing!!!
      Put a dial indicator on the front calipers and they were moving about 0.016". Checked with Bill Reilly and he confirmed the Dynalite calipers do flex under heavy brake pressure. Did some quick checks on the web and confirmed this. Bill says it will not affect the braking because it takes little pedal pressure to brake the car with 12.19" rotors.


      Attached Files:

    • RealWing

      RealWing FABO Gold Member FABO Gold Member

      Messages:
      1,118
      Likes Received:
      809
      Joined:
      Jun 14, 2010
      Location:
      Ontario, Canada
      Local Time:
      6:45 PM

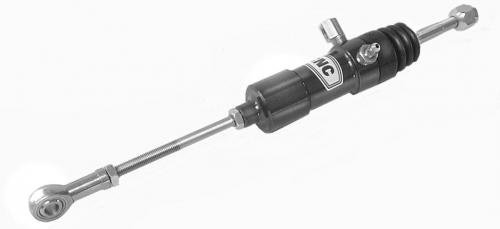

      In setting up the hydraulic clutch, we found we needed a bit more stoke on the CNC slave cylinder to get ~0.040" clearance on the clutch disk. We had more master cylinder stroke, but the slave was bottoming out.
      Decided to disassemble the slave to see what was limiting the stroke. It is actually the return spring. When it is fully compressed, it stops the piston well before the end of the bore. Cut off about 1 coil on the spring and now we have the stroke we need!!!


      Attached Files:

    • 72BBSwinger

      72BBSwinger Well-Known Member

      Messages:
      2,043
      Likes Received:
      62
      Joined:
      Feb 23, 2011
      Location:
      nebraska
      Local Time:
      5:45 PM
      Mine starts at around .150 for clutch clearance. You're talking TO bearing to PP fingers with clutch engaged right?

    • Buford19

      Buford19 Well-Known Member

      Messages:
      364
      Likes Received:
      232
      Joined:
      May 22, 2014
      Location:
      Kitimat b.c.
      Local Time:
      3:45 PM
      Thinking of picking up the same front end from RMS. Just wondering how do you like it,and how's the quality?

    • jrlegacy23

      jrlegacy23 68 Barracuda

      Messages:
      2,597
      Likes Received:
      262
      Joined:
      Jun 27, 2006
      Location:
      Laurens, NY
      Local Time:
      6:45 PM
      When it comes to quality, RMS and HDK can not be beat. You can not go wrong with either set up.

    • RealWing

      RealWing FABO Gold Member FABO Gold Member

      Messages:
      1,118
      Likes Received:
      809
      Joined:
      Jun 14, 2010
      Location:
      Ontario, Canada
      Local Time:
      6:45 PM
      No- I was talking about clearance between PP and disk with clutch disengaged (ie clutch pedal fully depressed.). 0.150" between TO Brg and fingers sounds about right.

    • RealWing

      RealWing FABO Gold Member FABO Gold Member

      Messages:
      1,118
      Likes Received:
      809
      Joined:
      Jun 14, 2010
      Location:
      Ontario, Canada
      Local Time:
      6:45 PM
      The quality is excellent, but the most important thing is customer service. Bill Reilly is absolutely great to deal with. I've had several questions during the installation and he is always willing and able to help.
      For example- I could not figure out how to fit the steering rack into position (it is a very tight fit) and he used one of the cars in the shop and took a video and posted it on YouTube for me!!!!
      Jim

    • RealWing

      RealWing FABO Gold Member FABO Gold Member

      Messages:
      1,118
      Likes Received:
      809
      Joined:
      Jun 14, 2010
      Location:
      Ontario, Canada
      Local Time:
      6:45 PM
      I modified my original auto console to be able to use it with the stock Hurst manual shifter. The only difference between the auto and manual is an original factory manual console has a larger cutout in the side (and some screw holes to attach a separate bulge)
      I cut out the opening and just added a fibreglass bulge to the side of it.
      The first photo shows a manual and auto console together. The next 2 are my fiberglass bulge.


      Attached Files:

    • RealWing

      RealWing FABO Gold Member FABO Gold Member

      Messages:
      1,118
      Likes Received:
      809
      Joined:
      Jun 14, 2010
      Location:
      Ontario, Canada
      Local Time:
      6:45 PM
      The coolant tubes under the intake manifold require some mods to be able to easily connect to the heater and heater shutoff valve. This is for the connections on an AC Cuda.
      The stock tubes point straight up at the rear of the engine.
      I cut the rear supports off the tubes and then heated the tubes so I could bend them in the right direction. Then welded the supports back on.
      Not as clean as I would like it.
