67 Barracuda Turn Signal Dielemma

Electrical and Ignition

  1. Ken Pevay

    Ken Pevay Member

    Messages:
    21
    Likes Received:
    12
    Joined:
    Dec 15, 2020
    Location:
    Ludlow, Ma
    Local Time:
    1:26 PM
    My name is Ken and I'm new to this forum, wondering if anyone has come across this one. I have an issue that has popped up on my recently purchased 67 Barracuda Convertible. Turn signals work fine with headlights off. With headlights or parking lights on the the dash indicator for the left turn signal is always on unless you activate the left turn signal in which case it will flash in the normal fashion until its shut off and it returns to the stay on status with the lights on. Shut the lights off and it goes out. The previous owner had the instrument cluster was professionally restored. This is a recent development and wasn't doing this the first time i drove the car at night. I have only had the car for a little over a month and only drove it twice as I live in Massachusetts salt country this time of year. Barracuda.jpg

  2. 78kitcar

    78kitcar Well-Known Member

    Messages:
    1,188
    Likes Received:
    86
    Joined:
    Mar 9, 2008
    Location:
    Cleveland Ohio
    Local Time:
    7:26 AM
    Well Ken, welcome to FABO. I cant help you with your dash problem but i can tell you that your car is BEAUTIFUL!!!

  3. Mattax

    Mattax Just the facts, ma'am FABO Gold Member

    Messages:
    11,447
    Likes Received:
    7261
    Joined:
    Feb 7, 2013
    Location:
    Phila. Pa
    Local Time:
    1:26 PM
    Ken. I hope you like puzzles! :)
    This one shouldn't be too difficult.
    It sounds like the parking light was a cross wire short to the turn signal.

    There's an explanation of the turn signal, stop and hazzard circuits here:
    1967 Chrysler Imperial Electrical Accessory Circuit From the Master Technicians Service Conference Session 236

    A little explanation about the schematic they use.

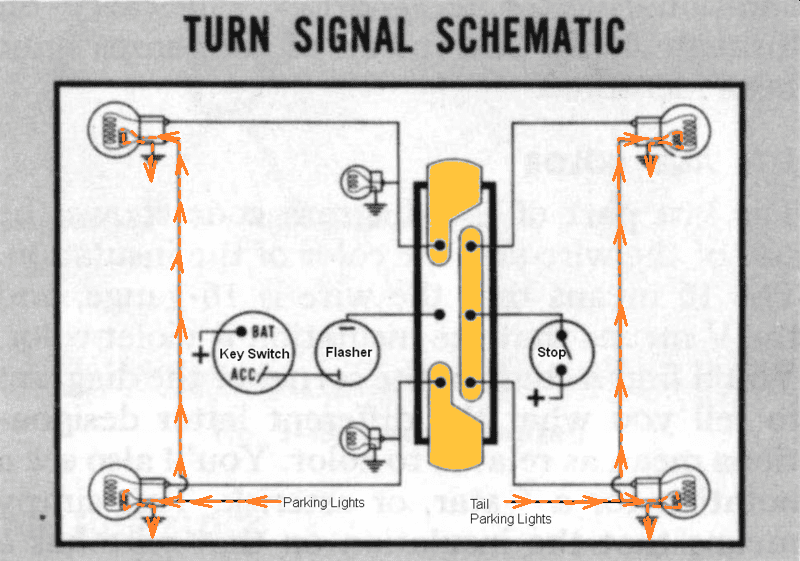

    The portions I've colored represent the moving brass contacts in the turn signal switch. All three move together when the signal lever is moved.
    The black circles are connected to the wires and do not move.

    Might check whether one lamp is weak which would be another clue as to where a short gould be occuring.

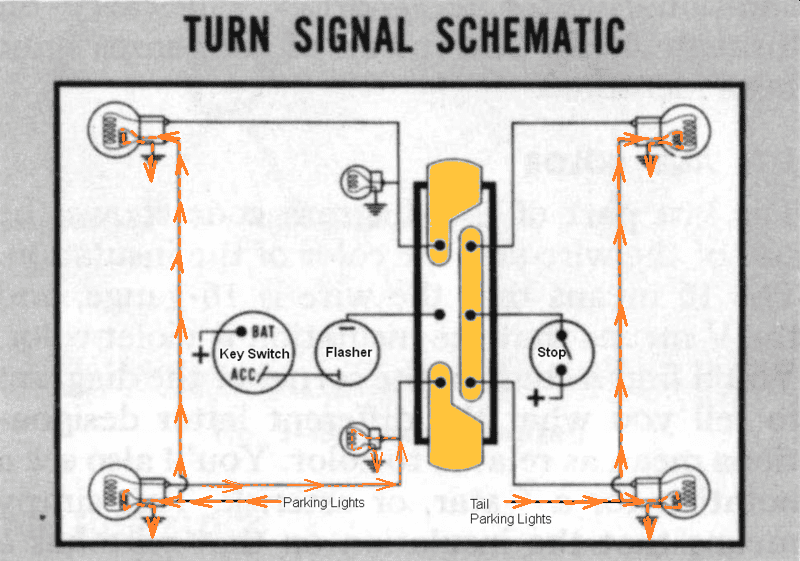

    Current flow with parking lights should be along the dashed paths.

    Something like this is going on.

    I'd probably check the bulb and the socket and wiring.
    Do a search for posts about removing the parking lamps on a '67 Barracuda to get a sense of how its accessed.

  4. Mattax

    Mattax Just the facts, ma'am FABO Gold Member

    Messages:
    11,447
    Likes Received:
    7261
    Joined:
    Feb 7, 2013
    Location:
    Phila. Pa
    Local Time:
    1:26 PM
    Parking light position on the headlight switch also turns on the instrument illumination lamps. But offthe top of my head I dont think as likely to result in what you're describing.

  5. Mattax

    Mattax Just the facts, ma'am FABO Gold Member

    Messages:
    11,447
    Likes Received:
    7261
    Joined:
    Feb 7, 2013
    Location:
    Phila. Pa
    Local Time:
    1:26 PM
    here's a couple pics from the last time I had one off


  6. Ken Pevay

    Ken Pevay Member

    Messages:
    21
    Likes Received:
    12
    Joined:
    Dec 15, 2020
    Location:
    Ludlow, Ma
    Local Time:
    1:26 PM
    Thanks I'll be around this where I belong, I was brought up in a Mopar only house, A 67 Mustang Convertible got me into the hobby as an adult, Followed by a 66 Pontiac Lemans, back to my roots my teenage car was a 63 Valliant Convertible.

  7. Ken Pevay

    Ken Pevay Member

    Messages:
    21
    Likes Received:
    12
    Joined:
    Dec 15, 2020
    Location:
    Ludlow, Ma
    Local Time:
    1:26 PM

  8. Mike69cuda

    Mike69cuda 64 is the new 17 FABO Gold Member

    Messages:
    2,060
    Likes Received:
    1607
    Joined:
    Jan 2, 2018
    Location:
    Overland Park Kansas
    Local Time:
    12:26 PM
    When weird stuff like this happens, it is often a missing ground somewhere. Look at the brightness of all your lamps when they are on. That can be a clue.

  9. Ken Pevay

    Ken Pevay Member

    Messages:
    21
    Likes Received:
    12
    Joined:
    Dec 15, 2020
    Location:
    Ludlow, Ma
    Local Time:
    1:26 PM
    Thanks so much for taking the time to respond. I have had the parking lights off and apart new bulbs etc... rear bulbs are new as well. turn signal lever is a little floaty my first step will be to remove the steering wheel and start with the switch. I'm sure it will be a puzzle. I also have to investigate the gas guage/sending unit on my first test ride after the car arrived guage had dropped to almost "E" stopped and filled it up and only took a little less than 5 gallons. as the dash gage went from full to almost 1/2 tank after only 20 miles after the fill up there seems to be something ging on with the sending unit. thanks again for your help.

  10. Mattax

    Mattax Just the facts, ma'am FABO Gold Member

    Messages:
    11,447
    Likes Received:
    7261
    Joined:
    Feb 7, 2013
    Location:
    Phila. Pa
    Local Time:
    1:26 PM

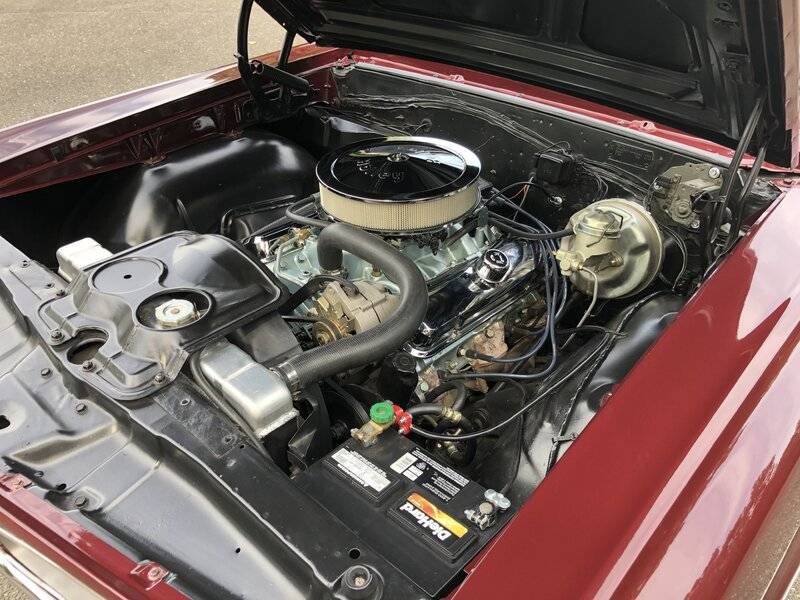

    Some pics of the lemans when you have chance. I like the early ones particularly. Pontiacs had good looks and instruments which I liked.

    You must know by now in the old car world new is not always good or right. :( Sometimes it is, sometimes not.

    Correct bulbs?

    Off the top of my head shouldn't be in the turn signal switch.
    That switch doesn't even get power when the key is off.
    A check could be made for that and or a back feed at the column connector.
    You have the Barracuda supplement?

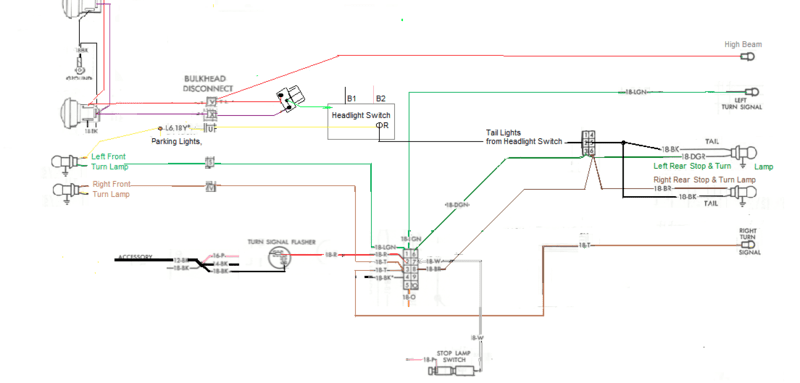

    There's also pdf of that diagram here by @1969383S
    1969 Plymouth Barracuda wiring diagram (not mine)
    Make sure you got the '67. There are small changes each year.

    This gets back to Mike's point about grounds.
    Lets say the ground for one or both of the front parking lamps is weak or loose.

    Then the next easiest path for electricity to flow is through a turn signal indicator.
    Something like this.

    That's another reason to see how the outside lamps are working or not under each situation.

  11. Mike69cuda

    Mike69cuda 64 is the new 17 FABO Gold Member

    Messages:
    2,060
    Likes Received:
    1607
    Joined:
    Jan 2, 2018
    Location:
    Overland Park Kansas
    Local Time:
    12:26 PM
    The gas gauge behavior is typical of aftermarket fuel senders. Lots of threads on this.

  12. mvh

    mvh FABO Gold Member FABO Gold Member

    Messages:
    1,606
    Likes Received:
    341
    Joined:
    Dec 17, 2007
    Location:
    Menlo Park, CA
    Local Time:
    10:26 AM
    Yes, check the grounds for both the front and rear lamps. The pins in the multi connector on the back of the dash are also a suspect, but you say the dash was already restored. Still... maybe a good idea to make sure the instrument panel ground wire is attached, at least. There is a also a steering column ground wire that might affect the turn signal switch if missing.

    As for the fuel gauge, it contains the voltage regulator for the instrument panel, so that is a possible connection. But if the PO installed a replacement aftermarket sender unit, you may just have to live with an inaccurate reading — the ones they sell as replacements are not calibrated for the A-body fuel tank and cannot be adjusted to be accurate over the full range.

  13. Mike69cuda

    Mike69cuda 64 is the new 17 FABO Gold Member

    Messages:
    2,060
    Likes Received:
    1607
    Joined:
    Jan 2, 2018
    Location:
    Overland Park Kansas
    Local Time:
    12:26 PM
    I have used a meter match successfully to improve the accuracy of the aftermarket senders. Other than getting a rebuilt oem sender, that is your only choice other than living with it.

  14. Ken Pevay

    Ken Pevay Member

    Messages:
    21
    Likes Received:
    12
    Joined:
    Dec 15, 2020
    Location:
    Ludlow, Ma
    Local Time:
    1:26 PM
    I just ordered the supplement yesterday, believe it or not i had the 67 Plymouth manual from the early 70's when my dad got it for a car we had in the family. He worked for chrysler as a rep and got me manuals for every car I had which I still have, 60 Desoto, 63 Valliant, 66 Plymoiuth, 67 Plymouth, 69 Plymouth, 72 Charger, and I also have a 1960 Desoto Parts book. Thanks for taking the time to respond.

    • Like Like x 1
    • RedFish

      RedFish Well-Known Member

      Messages:
      24,766
      Likes Received:
      3208
      Joined:
      Sep 5, 2007
      Local Time:
      1:26 PM
      When turn indicator comes on with park lamps, the fault is lack of chassis ground at that front turn signal. fixtures on front of 67 have a bulb socket crimped into a cast metal housing ( no actual ground wire ). Fault has to be corrosion inside bulb socket or socket loose at the crimp to fixture. This fault cannot happen at rear fixtures. Park circuit current doesn't have a complete path back to the turn indicator, due to turn signal switch.
      A addon part called meter match will correct your fuel gauge.

      • Like Like x 2
      • Thanks! Thanks! x 1
      • Mattax

        Mattax Just the facts, ma'am FABO Gold Member

        Messages:
        11,447
        Likes Received:
        7261
        Joined:
        Feb 7, 2013
        Location:
        Phila. Pa
        Local Time:
        1:26 PM
        There's some pdf versions of the supplement floating around. Might be at Hammtramk Historical library or maybe mymopar.
        Advantage is you can print and mark up! So nice to have both.

      • Ken Pevay

        Ken Pevay Member

        Messages:
        21
        Likes Received:
        12
        Joined:
        Dec 15, 2020
        Location:
        Ludlow, Ma
        Local Time:
        1:26 PM
        Bingo! Found a bad ground between the parking light housing and the bulb socket. Thanks for your help.

        • Like Like x 2
        • Ken Pevay

          Ken Pevay Member

          Messages:
          21
          Likes Received:
          12
          Joined:
          Dec 15, 2020
          Location:
          Ludlow, Ma
          Local Time:
          1:26 PM
          Found a bad ground between the parking light housing and the bulb socket. nothing a small bead of solder between the housing and the socked couldn't take care of. this also explains the hose clamp with a peice of wire broken off on the other side, must have been the same problem at some point in time. Needless to say I added a bead of solder on that side as well. Thanks for your help. Below are a few pics of my Pontiac. Opted to sell too much knee pian with the clutch. I was a 326, two speed power glide with a 273 differencial. It left me as a 400 4 bbl, 4 speed, 323 posi. IMG_7212.JPG IMG_7228.JPG

          • Like Like x 1
          • Thanks! Thanks! x 1
          • 4spdragtop

            4spdragtop CONGRATS NORTH AMERICA! FABO Gold Member

            Messages:
            30,773
            Likes Received:
            11300
            Joined:
            Aug 28, 2009
            Location:
            Wasting time here
            Local Time:
            12:26 PM
            Beautiful! Love the boxy Pontiacs!

            Last edited: Jan 11, 2021
            • Agree Agree x 1
            • RedFish

              RedFish Well-Known Member

              Messages:
              24,766
              Likes Received:
              3208
              Joined:
              Sep 5, 2007
              Local Time:
              1:26 PM
              I've seen the solder in the crack tried before. It wont work long term. I dont know why solder doesn't bond well to the cast pot metal but it doesn't. Vibration will cause do over and over. Solder a wire or a male tang for a female wire terminal onto the outside of the socket. Or just buy another fixture. Without good lens and bezel shouldn't cost too much.

              • Agree Agree x 1
              • Ken Pevay

                Ken Pevay Member

                Messages:
                21
                Likes Received:
                12
                Joined:
                Dec 15, 2020
                Location:
                Ludlow, Ma
                Local Time:
                1:26 PM
                Thanks for the feedback, I'll keep a watch on it. I did prep the surfaces with my dremmel and figured if it doesn't last I would do just what you suggested.
