Crosswind air gap clone and ram truck serpentine setup

Discussion in 'Magnum Engine Swaps' started by sport74, Aug 27, 2017.

  1. sport74

    sport74 Well-Known Member

    Messages:
    286
    Likes Received:
    25
    Joined:
    Mar 26, 2014
    Location:
    Anderson sc
    Local Time:
    4:02 AM
    Okay guys I've got a crosswind AKA air gap clone that I've put on my 408 stroker which is Magnum based. I went to put the air conditioner and alternator bracket on and the bracket is hitting on the air conditioner side on a boss on the intake. It also looks like it will be hitting on the thermostat housing as well once I remove the boss. I'm wondering if any of you have had this issue before and what you did to fix it I'm trying to retain the factory Serpentine setup without doing a bunch of major modifications and worrying about pulley alignment and things like that. My plan is right now used to grind down the boss on the intake maybe drill and tap it for a bracket if need be later on but to cut one corner off of the AC bracket and Run 3 bolts on the compressor. Let me know if any of y'all have done this or have done anything different to make this work any help is greatly appreciated thanks so much.



  2. sport74

    sport74 Well-Known Member

    Messages:
    286
    Likes Received:
    25
    Joined:
    Mar 26, 2014
    Location:
    Anderson sc
    Local Time:
    4:02 AM
    More pictures




  3. 67Dart273

    67Dart273 Well-Known Member

    Messages:
    36,838
    Likes Received:
    4687
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    View My Photos
    Local Time:
    2:02 AM
    I say cut the bracket, run 3 bolts, and if you are "iffy" fab up a strap brace to go from one rear bolt over to someplace on the manifold.

    • Like Like x 1
    • Thanks! Thanks! x 1
    • jos51700

      jos51700 Well-Known Member

      Messages:
      3,981
      Likes Received:
      843
      Joined:
      May 24, 2009
      Location:
      Bel-Ray
      Local Time:
      4:02 AM
      I had to go van Gogh mode on mine.

      I'm not entirely sure you can fit the compressor on there with that intake. I hadda run the compressor surrogate idler wheel on my car because the compressor wouldn't fit, and want to switch to an ac Compatible efi intake in the future.

      That said, I don't know where you got that filler neck, but without the retainer lip, the upper radiator hose is not positively retained and will likely blow off when the cooling system pressurizes at temperature.

      • Thanks! Thanks! x 1
      • sport74

        sport74 Well-Known Member

        Messages:
        286
        Likes Received:
        25
        Joined:
        Mar 26, 2014
        Location:
        Anderson sc
        Local Time:
        4:02 AM
        @jos51700 can you upload some pics of your setup showing why the compressor won't fit? It appears to have plenty of room for the compressor once modified, but maybe the mods are what prevents it from fitting? Just trying to figure out what's ahead of me. And your right about the thermostat housing. It was a new one and I noticed that when I took it out of the box

      • 67Dart273

        67Dart273 Well-Known Member

        Messages:
        36,838
        Likes Received:
        4687
        Joined:
        Oct 14, 2010
        Location:
        Idaho
        View My Photos
        Local Time:
        2:02 AM
        You are gonna hafta 'xplain that because I have no idea..........

      • zombywoof

        zombywoof Well-Known Member

        Messages:
        385
        Likes Received:
        106
        Joined:
        Nov 2, 2014
        Location:
        here im is
        Local Time:
        4:02 AM
        he must of cut an ear off something

        • Like Like x 1
        • rumblefish360

          rumblefish360 so close yet so far away

          Messages:
          31,339
          Likes Received:
          3743
          Joined:
          Jun 21, 2005
          Location:
          New York, on a Island
          View My Photos
          Local Time:
          5:02 AM
          And made some really screwed up looking paintings.

          • Thanks! Thanks! x 1
          • Agree Agree x 1
          • RustyRatRod

            RustyRatRod Just another dumbass. FABO Gold Member Technical Editor

            Messages:
            45,475
            Likes Received:
            9425
            Joined:
            Jun 7, 2010
            Location:
            Georgia
            View My Photos
            Local Time:
            5:02 AM
            The real Eddy Magnum Air Gap fits perfect.

            • Like Like x 1
            • rumblefish360

              rumblefish360 so close yet so far away

              Messages:
              31,339
              Likes Received:
              3743
              Joined:
              Jun 21, 2005
              Location:
              New York, on a Island
              View My Photos
              Local Time:
              5:02 AM

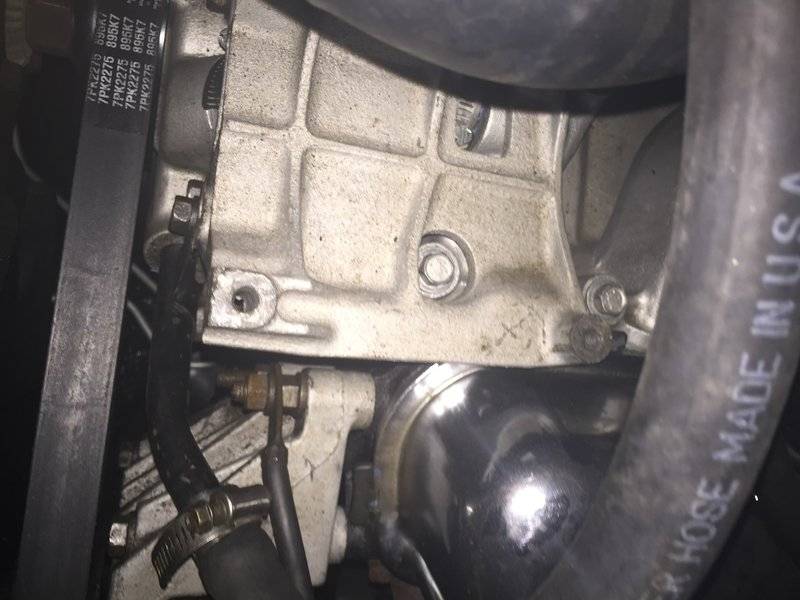

              FWIW, there is a intake manifold threaded hole under the A/C bracket that needs a Allen key plug to sit at least flush with them intake manifolds surface in order to seat the A/C compressors bracket down.

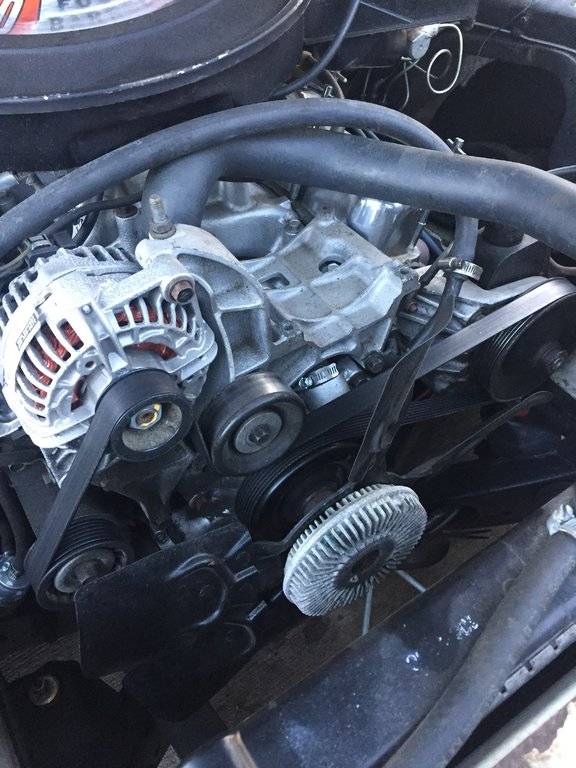

              I posted a set of 4 shots of it installed. Just for reference. See the Edelbrock site or summit for perhaps a better picture of the intake alone for reference.

              I can post more for anyone that would like anshot not included except the bracket off. LOL IM NOT disassembling the engine front.

              Provisions for all the A/C braces are there.
              IMG_0787.JPG IMG_0789.JPG IMG_0790.JPG

            • jos51700

              jos51700 Well-Known Member

              Messages:
              3,981
              Likes Received:
              843
              Joined:
              May 24, 2009
              Location:
              Bel-Ray
              Local Time:
              4:02 AM
              The intake I had was a Moderately early version, installed around '07. I can't supply photos, I've since traded it off to another member on this site that lived in Carl Junction, MO.

              The compressor had a space time conflict with the water housing neck and, I believe, possibly maybe an intake runner, but I got rid of that setup five years ago since I was 200 miles away from the car trying to work on it.

              Van Gogh is an artist, famous for lopping off his own ear attributable to either drinking absinthe, dropping hallucinogens, a sword fight with a friend, or just general nuttiness. He supposedly gave the severed piece to a hooker; that's the important part.

              • Like Like x 3
              • zombywoof

                zombywoof Well-Known Member

                Messages:
                385
                Likes Received:
                106
                Joined:
                Nov 2, 2014
                Location:
                here im is
                Local Time:
                4:02 AM
                Van Gogh is an artist, famous for lopping off his own ear attributable to either drinking absinthe, dropping hallucinogens, a sword fight with a friend, or just general nuttiness. He supposedly gave the severed piece to a hooker; that's the important part.

                so thats hooker headers was born:D

              • mopardart44067

                mopardart44067 Well-Known Member

                Messages:
                511
                Likes Received:
                16
                Joined:
                May 21, 2012
                Location:
                visalia,ca
                Local Time:
                2:02 AM
                How do you like the intake.thats the one I'm going to get.its only $200 shipped that's half price of edelbrock.

              • sport74

                sport74 Well-Known Member

                Messages:
                286
                Likes Received:
                25
                Joined:
                Mar 26, 2014
                Location:
                Anderson sc
                Local Time:
                4:02 AM
                I haven't had a chance to run it. Once everything is together and running I will let you know. It seems like a decent piece and had both mounting patterns ( Magnum and LA) also comes with plugs for the set of holes not used. Clearance on the bracket is the only issue thus far.

              • 75slant6

                75slant6 Well-Known Member

                Messages:
                4,556
                Likes Received:
                990
                Joined:
                May 15, 2011
                Location:
                Russellville, ky
                Local Time:
                4:02 AM
                @sport74 were you able to get this to work? I’m seriously considering having injector bungs welded to my Assault (same as crosswind) intake and add the factory efi and accessories this coming winter and would really like to have ac.

              • sport74

                sport74 Well-Known Member

                Messages:
                286
                Likes Received:
                25
                Joined:
                Mar 26, 2014
                Location:
                Anderson sc
                Local Time:
                4:02 AM
                Unfortunately, I found out the hard way that the account compressor will not work with this intake. The thermostat housing and compressor want to occupy the same space

              • 67Dart273

                67Dart273 Well-Known Member

                Messages:
                36,838
                Likes Received:
                4687
                Joined:
                Oct 14, 2010
                Location:
                Idaho
                View My Photos
                Local Time:
                2:02 AM
                How about something like a modified stat housing? Is there ANY room between the two? I guess I'm going to have to "dig out" one of the magnums and rig it up to see what we all are up against

                • Like Like x 1
                • 75slant6

                  75slant6 Well-Known Member

                  Messages:
                  4,556
                  Likes Received:
                  990
                  Joined:
                  May 15, 2011
                  Location:
                  Russellville, ky
                  Local Time:
                  4:02 AM
                  Well darn. Guess I’ll just use the barrel intake then if I switch to efi

                • sport74

                  sport74 Well-Known Member

                  Messages:
                  286
                  Likes Received:
                  25
                  Joined:
                  Mar 26, 2014
                  Location:
                  Anderson sc
                  Local Time:
                  4:02 AM
                  I'll try to get a picture of it tomorrow. The passenger side of the compressor at the back has maybe 1/16th of an inch clearance to the Tstat housing with no hose on it. I have heard that the real Edelbrock rpm will allow for the AC compressor. The Tstat is offset on it

                • Bobzilla

                  Bobzilla Well-Known Member

                  Messages:
                  290
                  Likes Received:
                  167
                  Joined:
                  Aug 10, 2017
                  Location:
                  Livonia, Michigan
                  Local Time:
                  5:02 AM
                  The Edelbrock Magnum intake has thermostat in the correct Magnum position, as others have said.
                  If going with factory fuel injection, still using Magnum heads, go for the Hughes Air Gap manifold, if the budget allows. It is just an Edelbrock Air Gap cast specifically for Hughes by Edelbrock. It costs a little more, but it also has the thermostat housing in the correct Magnum position, already has injector bungs drilled, comes with gasksts, and comes with the two barrel adapter needed to run the factory throttle body. The brackets for mounting the factory fuel rails look terrible, but they work, and you can use the air conditioning compressor from the Magnum engine along with serpentine setup.

                • JoesEdge

                  JoesEdge Well-Known Member

                  Messages:
                  877
                  Likes Received:
                  119
                  Joined:
                  Jun 6, 2013
                  Location:
                  Downey, CA
                  View My Photos
                  Local Time:
                  2:02 AM
                  Well, will you be replacing that bracket with the one I just sent you? Then you can take pictures of the process. You're going to see how damn easy it is to put the non-AC alternator bracket. It's a 15 minute job if you're slow.

                • rumblefish360

                  rumblefish360 so close yet so far away

                  Messages:
                  31,339
                  Likes Received:
                  3743
                  Joined:
                  Jun 21, 2005
                  Location:
                  New York, on a Island
                  View My Photos
                  Local Time:
                  5:02 AM
                  I’m slow....
                  :rofl:

                • JoesEdge

                  JoesEdge Well-Known Member

                  Messages:
                  877
                  Likes Received:
                  119
                  Joined:
                  Jun 6, 2013
                  Location:
                  Downey, CA
                  View My Photos
                  Local Time:
                  2:02 AM
                  Well taking off the old bracket is more involved, but you'll see how ridiculously easy the new bracket is.

                • rumblefish360

                  rumblefish360 so close yet so far away

                  Messages:
                  31,339
                  Likes Received:
                  3743
                  Joined:
                  Jun 21, 2005
                  Location:
                  New York, on a Island
                  View My Photos
                  Local Time:
                  5:02 AM
                  Engine is being dismantled now....
                  It’ll be awhile...
                  I’m slow.... to many other things in the way of actually getting things done quick.

                • JoesEdge

                  JoesEdge Well-Known Member

                  Messages:
                  877
                  Likes Received:
                  119
                  Joined:
                  Jun 6, 2013
                  Location:
                  Downey, CA
                  View My Photos
                  Local Time:
                  2:02 AM
                  I may be there soon too. I have a stripped threads in my timing chain cover which is weaping coolant. So I may have to dismantle the front to fix that.
