Intake design for stock appearing class and needed a winter project

Mopar Racers Forum

  1. furrystump

    furrystump Well-Known Member

    Messages:
    1,193
    Likes Received:
    759
    Joined:
    Nov 13, 2004
    Local Time:
    7:44 AM
    Thank you!

  2. Scampin

    Scampin Well-Known Member

    Messages:
    244
    Likes Received:
    4
    Joined:
    Aug 27, 2005
    Local Time:
    2:44 AM
    Cheatin sob. Would be interested in seeing it hooked to a head on a flowbench to get an idea of flow and mixture problems before you bolt it to the bullet.

    • Like Like x 1
    • Agree Agree x 1
    • furrystump

      furrystump Well-Known Member

      Messages:
      1,193
      Likes Received:
      759
      Joined:
      Nov 13, 2004
      Local Time:
      7:44 AM
      Going to run a/f meter on both sides and check the plugs a bunch.

    • furrystump

      furrystump Well-Known Member

      Messages:
      1,193
      Likes Received:
      759
      Joined:
      Nov 13, 2004
      Local Time:
      7:44 AM
      I have a spare ported head but no valves or flow bench.

    • pishta

      pishta I know I'm right....

      Messages:
      19,335
      Likes Received:
      8709
      Joined:
      Oct 13, 2004
      Location:
      Tustin, CA
      Local Time:
      11:44 PM
      How stock is a W2 head? I was
      almost stock on the 360 lil red express truck. How about a stock 68 273/4 intake? Massage the ports to make the same 340 size by adding material to the bottom... cut the bottom out and lower it,, sinking the floor? Looks like you could manage that with a big band saw and some creative metalwork. There was an AMC racer that put 2 heads together top and bottom to raise the port height. How he did it, not sure but it would have probably been an angle cut to keep the chamber intact, just cutting the corner off and putting a taller corner on...lots of work for sure. Check out David Vizard's book on carburation. He got a GM spread bore intake to perform as well as "any aftermarket intake" just by shaping and honing the inside transitions.

    • furrystump

      furrystump Well-Known Member

      Messages:
      1,193
      Likes Received:
      759
      Joined:
      Nov 13, 2004
      Local Time:
      7:44 AM

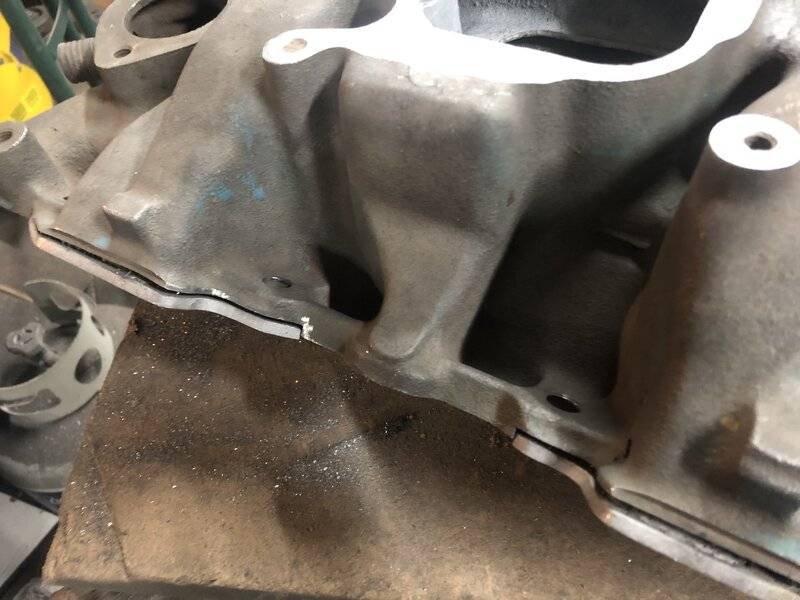

      W2’s have relocated ports. Also you can’t run a stock intake casting. X head is it for small block mopar. Getting the casting back after the sealing surface was inset today. Still have two more intake runners to make.

    • PRH

      PRH Well-Known Member

      Messages:
      2,999
      Likes Received:
      4453
      Joined:
      Dec 14, 2018
      Location:
      So. Burlington, Vt
      Local Time:
      2:44 AM
      That.... and they’re not legal for FAST or Super Car.

    • furrystump

      furrystump Well-Known Member

      Messages:
      1,193
      Likes Received:
      759
      Joined:
      Nov 13, 2004
      Local Time:
      7:44 AM

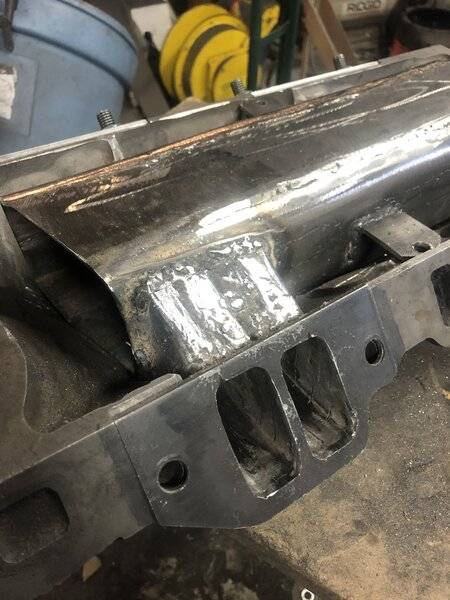

      One runner,



      • Like Like x 1
      • furrystump

        furrystump Well-Known Member

        Messages:
        1,193
        Likes Received:
        759
        Joined:
        Nov 13, 2004
        Local Time:
        7:44 AM
        Need to port match it. Clean up inside the runner a bit.

      • 408 swinger

        408 swinger FABO Gold Member FABO Gold Member

        Messages:
        2,244
        Likes Received:
        2070
        Joined:
        Nov 12, 2010
        Location:
        Iowa
        Local Time:
        1:44 AM
        Looking forward to results!

        • Agree Agree x 2
        • PRH

          PRH Well-Known Member

          Messages:
          2,999
          Likes Received:
          4453
          Joined:
          Dec 14, 2018
          Location:
          So. Burlington, Vt
          Local Time:
          2:44 AM
          Same here!!:thumbsup:

          • Agree Agree x 2
          • 1Badcolt

            1Badcolt Well-Known Member

            Messages:
            2,072
            Likes Received:
            844
            Joined:
            Mar 15, 2013
            Location:
            Georgia
            Local Time:
            2:44 AM
            Cool seeing oem parts modified !

          • 318willrun

            318willrun Utube channel 318willrun

            Messages:
            16,324
            Likes Received:
            18027
            Joined:
            Sep 13, 2013
            Location:
            I'm here
            Local Time:
            1:44 AM
            Just found this thread. What a neat project. Subscribed

          • Scampin

            Scampin Well-Known Member

            Messages:
            244
            Likes Received:
            4
            Joined:
            Aug 27, 2005
            Local Time:
            2:44 AM
            Just curious is the plenum lower than the runners? Wondering if you are going to run into fuel puddling issues.

          • furrystump

            furrystump Well-Known Member

            Messages:
            1,193
            Likes Received:
            759
            Joined:
            Nov 13, 2004
            Local Time:
            7:44 AM
            It is not lower, but close. I plan on roughing up the floor pretty good to give it some edges to atomize off. The one I’m running now, the upper plenum floor is 1 1/2” maybe from the carb base. Really just hammering the a/f charge into it. With this at least there is 6+ inches from carb base to plenum floor. Also I can bull nose the transition a bunch as it makes the turn laterally.

            • Like Like x 1
            • furrystump

              furrystump Well-Known Member

              Messages:
              1,193
              Likes Received:
              759
              Joined:
              Nov 13, 2004
              Local Time:
              7:44 AM

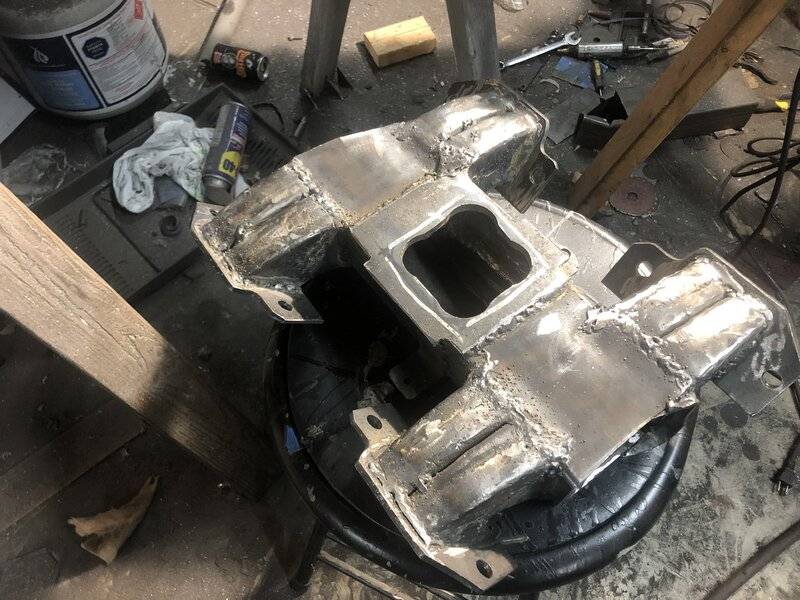

              Well all four runners are done. Need to roughen up the inside with a burr and weld the ends on. Ugly on the outside just like me! ! Working within the area I have has made the runners nowhere near ideal, but we’ll see what happens. Still have to fill in the original upper runners and bolt/epoxy the the two together.



              • Like Like x 4
              • Scampin

                Scampin Well-Known Member

                Messages:
                244
                Likes Received:
                4
                Joined:
                Aug 27, 2005
                Local Time:
                2:44 AM
                That looks like a hell of a project. What does the inside of the cut up manifold look like with the new plenum not installed? Just curious on what you were working with space wise.

              • furrystump

                furrystump Well-Known Member

                Messages:
                1,193
                Likes Received:
                759
                Joined:
                Nov 13, 2004
                Local Time:
                7:44 AM

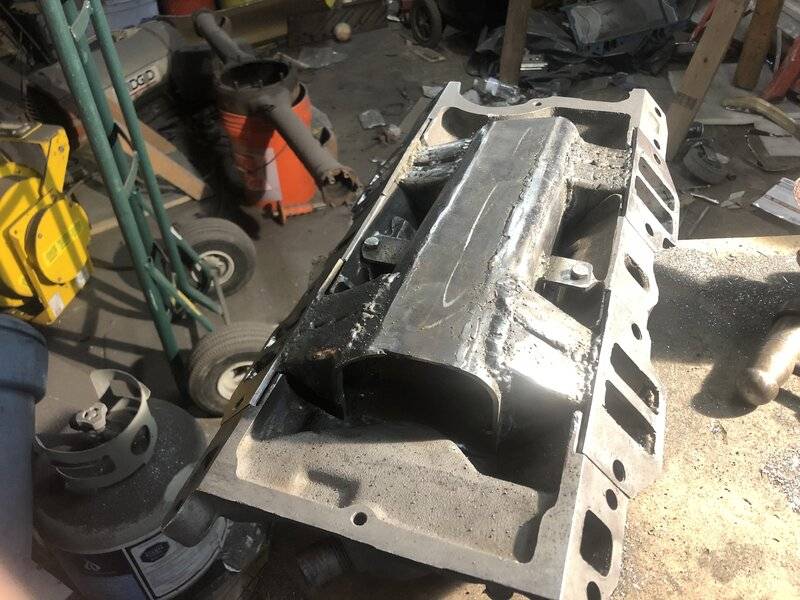

                This is what remains of the original intake.


                • Like Like x 1
                • furrystump

                  furrystump Well-Known Member

                  Messages:
                  1,193
                  Likes Received:
                  759
                  Joined:
                  Nov 13, 2004
                  Local Time:
                  7:44 AM
                  Because of the large valleys that inner manifold bolts are in I can’t turn the runners towards the center like a tradition single plane.



                  • Like Like x 1
                  • pishta

                    pishta I know I'm right....

                    Messages:
                    19,335
                    Likes Received:
                    8709
                    Joined:
                    Oct 13, 2004
                    Location:
                    Tustin, CA
                    Local Time:
                    11:44 PM
                    That's awesome Bro, a little epoxy and a lot of smoothing and paint will make it stock appearing! Reminds me of early Nascar when they could slide the restrictor plate out of the Hemi's intakes like a piece of toast out of a toaster. Smokey wasn't the only "cheater"!

                  • GTX JOHN

                    GTX JOHN Well-Known Member

                    Messages:
                    112
                    Likes Received:
                    51
                    Joined:
                    Dec 12, 2009
                    Local Time:
                    1:44 AM
                    WE run Stock Eliminator Mopars.

                    There are several builders that can get you over .2+ with a professionally
                    modified and acid ported manifold AND they have to appear stock when inspected
                    off the car by tech. I have tried them back to back.
                    I know it is not the same but our stockers have to have stock lift and stock cc heads
                    but we do have Slicks and headers with stock shipping wt. = 10.5 @124 so it is apples
                    to oranges comparison

                    To do the manifolds is time consuming and they charge about 500 to 750 - You will pick up a amazing amt. The manifolds are really hurting what the heads can flow.

                    Goggle John Irving Drag Racer to see our 340 cars

                    • Like Like x 1
                    • furrystump

                      furrystump Well-Known Member

                      Messages:
                      1,193
                      Likes Received:
                      759
                      Joined:
                      Nov 13, 2004
                      Local Time:
                      7:44 AM
                      The exhausts are opened a bit and I remember a note worthy improvement from it. My next step for the exhaust manifolds might be ceramic coating inside and out to keep under hood temps down. I want to do some tests in regards to what the temp actually is under the hood during a run. A number of guys acid dip them.

                    • furrystump

                      furrystump Well-Known Member

                      Messages:
                      1,193
                      Likes Received:
                      759
                      Joined:
                      Nov 13, 2004
                      Local Time:
                      7:44 AM
                      Epoxy the exterior to seal any pin holes.


                      • Like Like x 3
                      • furrystump

                        furrystump Well-Known Member

                        Messages:
                        1,193
                        Likes Received:
                        759
                        Joined:
                        Nov 13, 2004
                        Local Time:
                        7:44 AM

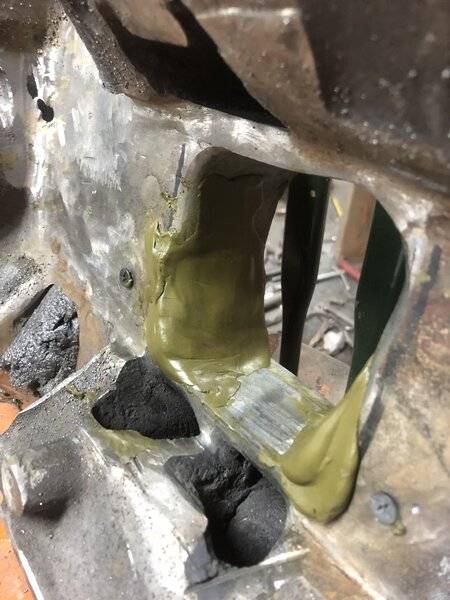

                        Filled in the original upper intake tract.


                      • A56

                        A56 MoParAffliction FABO Gold Member

                        Messages:
                        3,767
                        Likes Received:
                        7236
                        Joined:
                        Jun 24, 2014
                        Location:
                        South of the Mason-Dixon Line
                        Local Time:
                        1:44 AM
                        Wonder what the weight of this will be compared to stock?
