Thermo-Quad Listing:​

ModelApplicationPri.Sec.RodBoreKit
4846SCompetition Series3313416151-1/28
4846SACompetition Series308031166151-1/28
4847SCompetition Series3313416161-1/28
4847SACompetition Series308931166161-1/28
497271 340 MT (3512820)307431256551-3/86
497371 340 AT (3512821)307431256551-3/86
609072 400 AT F (3614139)4095513719371-1/21
613872 340 MT F (3614122)4095513719401-3/81
613972 340 AT F (3614123)4095513719401-3/81
614072 400 MT F (3614138)4095513719391-1/21
614472 340 AT Export4095513719501-3/81
616572 400 MT CA (3614172)4095513719381-1/21
616672 400 AT CA (3614173)4095513719381-1/21
631873 340 MT F (3698327)4098513719621-3/81
631973 340 AT F (3698328)4098513719661-3/81
632073 400 HP MT F (3698332)4098513719651-1/21
632173 400 HP AT F (3698333)4098513719661-1/21
632273 440 & Truck AT F (3698334)4098512519661-1/21
632473 440 HP AT F (3698336)4098512519661-1/21
633973 340 MT CA (3698339)4098513719621-1/21
634073 340 AT CA (3698340)4098513719661-1/21
634173 400 MT CA (3698342)4098513719651-3/81
634273 400 AT CA (3698343)4098513719661-3/81
639472-73 340 AT Export---1-3/81
641073 440 & Truck AT CA (3698319)4098512519661-1/21
641173 440 HP AT CA (3698329)4098512519661-1/21
6446M-440 Chrysler Marine (3698397)---1-1/21
645274 360 HP MT F (3751433)4098514319621-1/21
645374 360 HP AT F (3751434)4098514320051-1/21
645474 360 HP MT CA (3751435)4098514319621-1/21
645574 360 HP AT CA (3751436)4098514320051-1/21
645674 400 HP MT F (3751439)4098514319661-1/21
645774 400 HP AT F (3751440)4098514319661-1/21
645974 400 HP AT CA4098514319661-1/21
646074 440 AT F early (3751443)4098513719661-1/21
646174 440 AT CA early (3751444)4098513720051-1/21
646274 440 HP AT F early (3751445)---1-1/21
646374 440 HP AT CA early (3751446)---1-1/21
648874 360 AT CA early (3751451)4098514319661-1/21
648974 400 AT F early (3751452)---1-1/21
649674 400 AT CA4098514320051-1/21
650374 400 AT Export---1-1/21
6518H-440-3 Chrysler Industrial---1-1/21
654574-77 440-1,-3 Truck F (3751472)4098513720241-1/21
655074 345, 392 AT IHC (448582C91)---1-3/81
655175 345, 392 AT IHC CA (459642C91)---1-3/81
656874 460 AT Ford CA (D4AE-BC)---1-3/87
659074 392 IHC (451872C91)---1-3/81
659274 345, 392 MT IHC (451916C91)---1-3/81
661474 ???4098514319661-3/8-
661574 440-1 Truck AT4098513720241-1/21
661674 440-1 Truck AT CA4098513719661-1/21
900074 318 Export (3751474)---1-3/81
900275-76 360 HP AT F IE (3830529)4095514319981-1/22
900475 360 AT CA IE early (3830531)4095512520861-1/22
900875 400 AT CA IE early (3830535)4098514319651-1/22
900975 440 AT F IE (3830536)4098513721091-1/22
901075 440 AT CA IE (3830537)4098513719651-1/22
901175 440 HP AT F IE (3830538)4099513721031-1/22
901275 440 HP AT CA IE early (3830539)4098514319651-1/22
901374 360 AT CA late (3751420)4098514319661-3/81
901474 400 AT CA late (3751419)4098514320051-1/21
901574 440 HP AT late (3830415)4098513720051-1/21
901674 440 HP AT CA late (3830416)4098513719661-1/21
901774 440-1 Truck AT CA (3830417)4098513719661-1/21
901972-74 ???---1-3/81
902072-74 ???---1-3/81
902274 360 Truck AT CA (3830401)4098514319661-3/81
902374 440 AT F late (3830403)4098513719661-1/21
902474 440 AT CA late (3830404)4098513720051-1/21
902574 440-1 Truck AT F (3830405)4098513719661-1/21
902775 392 IHC F (461280C91)---1-3/81
902875 392 IHC CA (461281C91)---1-3/81
903475 440-1 Truck MT F (3870944)4099514319651-1/21
903575 440-1 Truck MT CA (3870945)4100512521101-1/21
903675-76 440-1 Truck AT CA (3870946)4100512521101-1/21
904675 400 AT F IE early (3830554)4099514319651-1/22
904776 360 AT F CA IE---1-1/22
904974 440 HP AT CA late (3830864)4099514319651-1/22
905075 400 AT Can IE (3830561)4099514319651-1/21
905175 440 AT Can IE (3839562)4095512521441-1/22
905275-76 440 HP AT Can IE(3830568)4095513720241-1/22
905375 400 AT CA IE PDC-SW(3830570)4100514319651-1/22
905475-76 400 HP AT F IE (3830569)4098513720051-1/22
905576 360 AT CA IE (4006624)4096512519621-3/82
905675 400 SW AT CA IE4099514321451-1/22
905776 400 AT Can IE4099514319651-1/22
905876 440 AT F IE (4006631)4099513721091-1/22
905976 440 AT CA IE (4006632)4099513721451-1/22
906276 440 HP AT CA IE4098513721531-1/22
906375 440 AT CA early4099514319651-1/22
906476 400 AT LB4099514319651-1/22
906575-76 ???4098513721091-1/22
906676 440 HP AT F IE4099513721031-1/22
906875 400 AT CA late4099514321451-1/22
906975 440 AT CA late4099514321451-1/22
907275 360 AT CA late4099514319651-1/22
907375 440 AT CA late4098513721451-1/22
907476 400 AT CA (4006642)4099514321451-1/22
907677 360 HP AT CA IE (4027735)4092513719381-3/82
907777 400 HP AT F (4027736)4098514321591-1/22
907877 440 AT F IE (4027737)4098513721591-1/22
908077 440 HP AT F IE (4027739)4098513721791-1/22
908177 440 HP AT CA IE4098513719501-1/22
909377 360 HP AT F CA IE (4027742)4092514321951-3/82
909476 440 HP AT F (4006648)4099513721031-1/22
909576 440 HP AT CA (4006649)4098513721531-1/22
909677 440 Truck AT CA (4041553)4099512521101-1/21
909776 400 AT LB (4006654)4099514320861-1/22
909976 400 AT CA late4099514321451-1/22
910076 400 AT Can late4099514321441-1/22
910177 440 AT CA IE (4027750)4098513722101-1/22
910277 400 HP AT F---1-1/22
910377 400 HP AT F (4027761)4098514322111-1/22
910478 360 AT F IE BV (4041826)4092511019401-3/83
910878 400 AT Can Exp (4041836)4098514321591-1/23
910978 440 AT F IE early (4041830)---1-1/23
911078 440 AT F HA CA IE (4041831)---1-1/23
911178 440 AT Can Exp IE (4041837)---1-1/23
911278 440 HP AT IE (4041832)4098512521791-1/23
911477 440 AT Can4098513721591-1/22
911577 360 AT Alc (4027727)4092513719381-3/82
911678 440 Truck MD IE CA (4095406)4098513719501-1/23
911778 440 Truck HD CA (4095407)4099512521101-1/23
911878 440 Truck HD (4095423)4098512521101-1/23
911977 440 HP AT CA (4027770)4098512519501-1/22
912378 318 Truck MT CA (4095427)4092511019971-3/83
912478 318 Truck AT CA (4095428)4092511019971-3/83
912578 360 Truck MT CA (4095429)4092511019381-3/83
912678 360 Truck AT CA (4095430)4092511019381-3/83
912777 440 AT4098512521791-1/22
912879-80 345 AT IHC---1-3/84
913478 360 AT F HA CA IE (4041856)4092511019961-3/83
913678 360 Mexico---1-3/83
913778 318 AT Can Exp (4041858)4092511019981-3/83
914078 400 AT F (4041861)4092513719971-1/23
914778 318 AT CA (4041865)4092511019961-3/83
914878 440 HP AT CA IE---1-1/23
914978 440 Truck MD AT CA (4095440)---1-1/23
915078 440 Truck HD AT CA (4095441)4099512521101-1/23
915178 440 Truck HD AT (4095442)4098512519981-1/23
915278 318 Truck AT LD Can4092511019971-3/83
915378 440 HP AT CA (4041874)---1-1/23
916178 440 AT Can Exp (4041879)---1-1/23
917279 360 Truck LD MD BV IE---1-3/83
917378-79 360 Truck HD BV---1-3/83
918078 440 AT F (4041881)---1-1/23
918278 400 AT F (4041882)---1-3/83
918378-79 318 Truck BV---1-3/83
918578-79 318 Truck BV---1-3/83
918778-79 318 Truck BV---1-3/83
918878 400 AT Can Exp (4041892)---1-3/83
919078 440 Truck MD AT CA---1-1/23
919378-79 360 Truck HD BV---1-3/83
919478-79 360 Truck HD BV---1-3/83
919579 318 AT CA IE BV (4095934)---1-3/83
919679 360 AT F IE BV (4095935)409551102210?1-3/83
919779 360 AT Can IE BV (4095936)---1-3/83
919879 360 HP AT CA IE BV (4095937)---1-3/83
920279 360 AT CA IE BV (4095939)---1-3/83
920379-80 345 AT IHC (1700004C91)4095511021441-3/84
920579-80 345 AT IHC---1-3/83
920779 360 Truck HD---1-3/83
920878-79 360 Truck HD BV---1-3/83
920979 360 Truck HD---1-3/83
921078-79 360 Truck HD BV---1-3/83
921179 440 Truck HD---1-1/23
921279 440 Truck HD AT CA---1-1/23
921378 440 Truck HD---1-1/23
921478-79 440 Truck BV---1-1/23
921578-79 ??? Truck---1-3/83
921678-79 318 Truck BV---1-3/83
921778-79 360 Truck HD BV---1-3/83
921878-79 360 Truck HD BV---1-3/83
921978-83 ??? Truck---1-3/83
922178 440 Truck HD AT---1-1/23
922378-79 318 Truck BV---1-3/83
922479 360 Truck LD MD BV IE---1-3/83
922579 360 Truck LD MD BV IE---1-3/83
922679 360 Truck LD MD BV IE---1-3/83
922778-79 318 Truck BV---1-3/83
922878-79 318 Truck BV---1-3/83
922978-79 318 Truck BV---1-3/83
923080 318 AT Can Exp BV (4179033)---1-3/83
923280 318 AT Can BV (4179035)---1-3/83
923480 318 AT F BV (4179037)---1-3/83
923680 360 AT Can BV (4179039)---1-3/83
923879-81 ??? Mexico---1-3/83
924079 446 Motor Home AT *---1-1/23
924179 446 Motor Home AT CA BV *---1-1/23
924380 318 AT Can Exp BV (4179043)---1-3/83
924480 360 AT F BV Alc (4179044)---1-3/83
924579 318 AT CA BV (4095495)---1-3/83
924679 360 AT CA BV IE (4095496)---1-3/83
924779 440 Truck AT---1-1/23
924879 440 Truck AT CA---1-1/23
925079 360 AT CA BV (4095978)---1-3/83
925180 360 Truck MD CA---1-3/83
925280 360 Truck MD CA---1-3/83
925480 318 Truck BV---1-3/83
925580-85 360 Truck LD MD F---1-3/83
925679 318 AT F Alc (4095979)---1-3/83
926580 360 Truck LD MD F---1-3/83
926680 360 Truck LD MD F---1-3/83
926879 360 Truck LD MD BV IE---1-3/83
926978-79 318 Truck BV---1-3/83
927078-79 318 Truck BV---1-3/83
927178-79 318 Truck BV---1-3/83
927279 360 Truck LD MD BV IE---1-3/83
927379 360 Truck LD MD BV IE---1-3/83
927578-79 360 Truck HD BV---1-3/83
927678-79 360 Truck HD BV---1-3/83
927779 360 Truck HD---1-3/83
927878 360 Truck HD---1-3/83
927980 318 Truck---1-3/83
928080-85 360 Truck LD MD F---1-3/83
928180 360 Truck HD---1-3/83
928381 318 AT BV F (4179132)---1-3/83
928481 318 AT BV Can Exp (4179133)---1-3/83
928880 318 Truck LD Can---1-3/83
928980 446 Motor Home AT BV *---1-1/23
929180 446 Motor Home AT BV *---1-1/23
929280 360 Truck---1-3/83
929381 318 AT BV F (4179145)---1-3/83
929580 318 AT BV F Alc (4179051)---1-3/83
929680 318 Truck MD HD---1-3/83
929880 360 Truck LD MD F---1-3/83
929980 360 Truck LD MD F---1-3/83
930481-83 ??? Mexico---1-3/8-
930580 360 AT F---1-3/83
930680 318 O2 BV---1-3/83
931181 318 Truck LD---1-3/83
931481 360 Truck LD MD F---1-3/83
932080 318 O2 BV---1-3/83
932581 360 Truck LD Can---1-3/83
932682 360 Truck LD MD F---1-3/83
932783 360 Truck LD MD F---1-3/83
932982 318 Truck LD---1-3/83
933083 318 Truck LD---1-3/83
933182 360 Truck LD MD CA Alc---1-3/83
933283 360 Truck LD MD CA Alc---1-3/83
934083-84 ??? Mexico---1-3/83
934183 318 Truck LD---1-3/83
934282 318 Truck BV (4287013)---1-3/83
935783 318 Truck MD HD---1-3/83
935882 360 Truck HD---1-3/83
935983 360 Truck HD---1-3/83
936481-84 318 AT Can BV O2 (4179177)---1-3/83
936583 318 Truck LD---1-3/83
936684 360 Truck LD MD F---1-3/83
936783 318 Truck LD---1-3/83
936883 318 Truck LD---1-3/83
936984 360 Truck LD MD CA Alc---1-3/83
937084 360 Truck HD---1-3/83
937184 318 Truck MD HD---1-3/83
937281-82 318 AT F BV O2 (4179179)---1-3/83
937381 318 AT CA BV O2 (4179180)---1-3/83
937482-83 318 BV O2---1-3/83
937582 318 Truck BV (4241752)---1-3/83
937682 360 Truck BV CA (4241753)---1-3/83
937983 360 Truck BV F (4287016)---1-3/83
938079-84 ??? Mexico---1-3/8-
938582-83 318 BV O2---1-3/83
938684 360 Truck BV Alc---1-3/83
938784 360 Truck BV---1-3/83
938883 318 AT BV O2---1-3/83
938984 318 AT BV O2 (4300012)---1-3/83
939184 318 AT BV O2 HA (4300019)---1-3/83
98009000 series, GM4095513721101-3/85
98019000 series, Chrysler4095512521101-3/85
98109000 series, GM, EGR4095513721101-3/85
98119000 series, Chrysler, EGR4097512523851-3/85

hopefully a Mod can clean this thread up from time to time. hate to have to delete the thread because its a mess. already becoming a mess.

A mess is 250 posts about...nothing. This is only 9 posts.......

Performance Mods I have heard/seen/read

Remove choke tower for 50 cfm more

Use a TQ with the fuel inlet in the center of the lid, drill out the fuel passages for more fuel

Use of Holley jets

Modify AFB/AVS metering rods to fit
TQ

Insure the secondary air flap is at the correct angle at WOT

Remove the lower primary booster rings

Use of a leather accelerator pump

Increase size of fuel/air bleed ?????

Float levels critical

Cutting a section of the metering rod piston spring for applications with low vacuum


Others ?????

Brooks James said:
Great idea , here ya go

View attachment 1716087202

View attachment 1716087213

View attachment 1716087214

View attachment 1716087215

View attachment 1716087216

View attachment 1716087217

View attachment 1716087218

View attachment 1716087219

View attachment 1716087221
Click to expand...

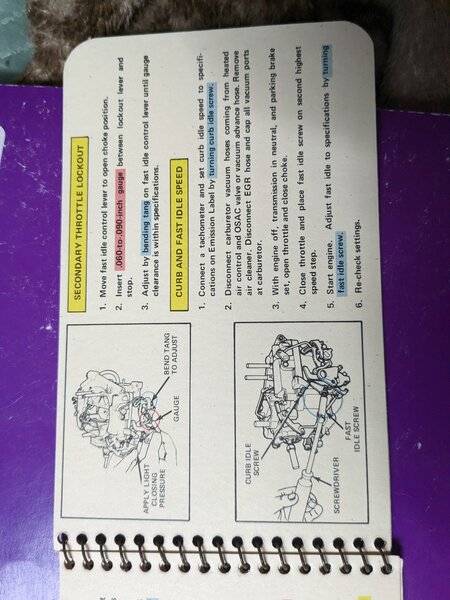

Shoot, if you could remove the spiral binding and put those pages through a scanner we'd be golden. Still perfectly legible as-is although they could be rotated, easy to do for anyone who downloads the images.

One tidbit of info I can add from my limited experience, don't bother with late 1970s-80s ThermoQuads especially ones originally intended for engines with EGR or Lean-Burn! Maybe they can be corrected (???) but the one I messed with ran like garbage. Might have been the carb itself but it had a horrible off-idle stumble along with generally just not making as much power or being as responsive as a garden-variety AFB-style Edelbrock/Carter. Fuel mileage wasn't anything special either even after attempting to lean out the jets/metering rods with ones I took from another TQ core, on a stock roller-cam 318 with dual exhaust off the stock manifolds and a Performer intake. Throttle shafts were tight in the bores too so that wasn't the issue.

[1] The later TQs had larger pri air bleeds....& larger main pri jets to match.
[2] I have never found the float level to be critical.
[3] There is no need to modify the factory side fuel inlet. It is at least 1/4" [ 0.25"] in diam & feeds two 0.093" n/seats. The supply area is 3.5 times the area of the two 0.093" n/seats, so there will not be a fuel starvation issue.

MopaR&D said:
Shoot, if you could remove the spiral binding and put those pages through a scanner we'd be golden. Still perfectly legible as-is although they could be rotated, easy to do for anyone who downloads the images.

One tidbit of info I can add from my limited experience, don't bother with late 1970s-80s ThermoQuads especially ones originally intended for engines with EGR or Lean-Burn! Maybe they can be corrected (???) but the one I messed with ran like garbage. Might have been the carb itself but it had a horrible off-idle stumble along with generally just not making as much power or being as responsive as a garden-variety AFB-style Edelbrock/Carter. Fuel mileage wasn't anything special either even after attempting to lean out the jets/metering rods with ones I took from another TQ core, on a stock roller-cam 318 with dual exhaust off the stock manifolds and a Performer intake. Throttle shafts were tight in the bores too so that wasn't the issue.
Click to expand...
I'm looking at document cameras, I have a lot of Mopar paraphernalia to post here and other threads

Hope this attachment works. I combined the photos that Brooks provided into one pdf file.


Attachments

  • TQUAD Adjustments and Troubleshooting.pdf
    635.6 KB · Views: 54
works but wish the pics were cropped better. :) somehow they lost contrast. some words are really blury. they really need to be scanned properly. thanks for doing it though.

did the best with what I had. True scans with good dpi would have yielded better.

You must log in or register to reply here.
-

Back
Top
