360-1 Indy 245 cnc heads

Small Block Mopar Engine

  1. pittsburghracer

    pittsburghracer FABO Gold Member FABO Gold Member

    Messages:
    3,889
    Likes Received:
    7032
    Joined:
    Apr 20, 2016
    Location:
    Freeport, PA.
    Local Time:
    9:33 AM

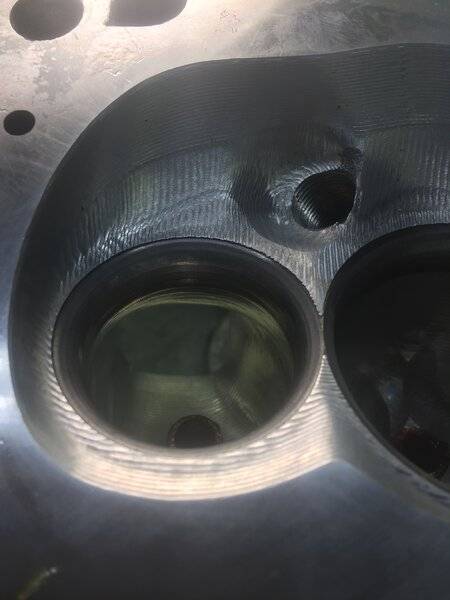

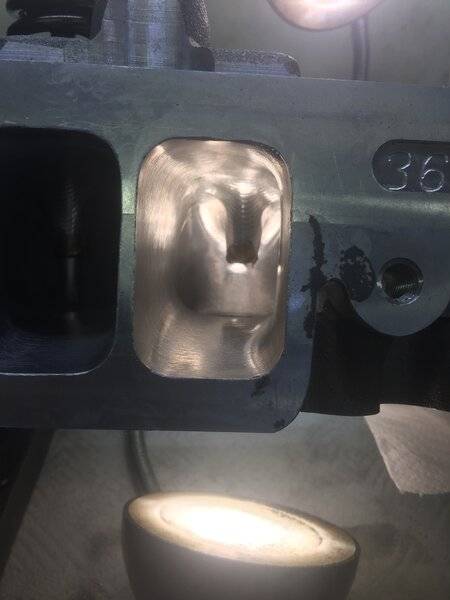

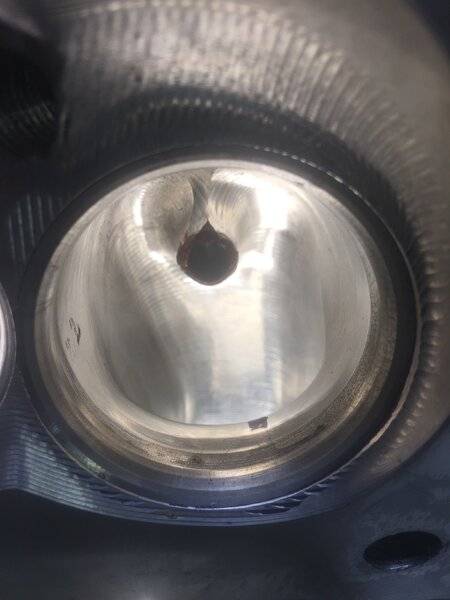

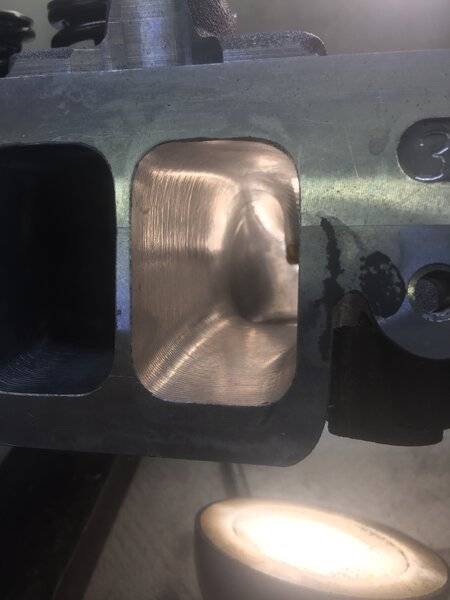

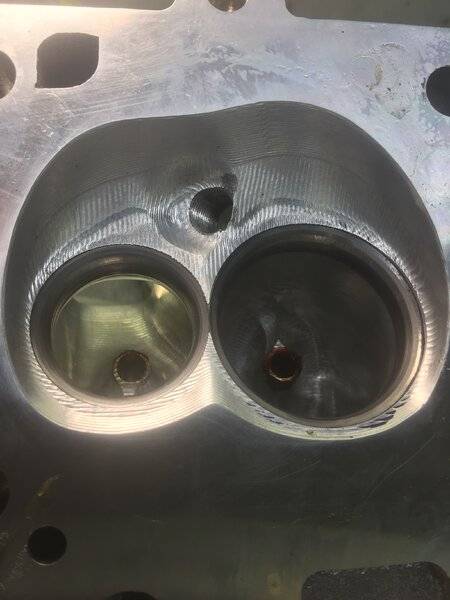

    F000BB17-6F0F-456A-9BB1-AA176FE61AFB.jpeg 7B8FB784-87BF-4063-B090-21F12D17B0C5.jpeg 9AB72FC7-3ACC-4E71-80DA-AD2C458FF3BF.jpeg 8B301B76-992B-453B-B811-BCFE4E2E96EB.jpeg 42CA7D9C-74FC-4DFD-9255-4FB5EC350955.jpeg E58CAFDE-47FA-4A94-B0C6-AFDD96C7A2E0.jpeg 5AF6C0BA-2F0F-4808-84D4-2700865301B2.jpeg well I thought I lost my opportunity to flow test my buddies Indy heads but he dropped it off Thursday for my son to put on his engine. He called me over the weekend and said he would pay me to flow the unmodified 345 cnc’d head. Well after Church today I spent hours flowing not only that head but also the one that was leaking water in an exhaust port and unsuccessfully I tried to have it welded. I also did some air speed testing. I will post the numbers tomorrow but here are some pictures.

    • Thanks! Thanks! x 4
    • Like Like x 3
    • pittsburghracer

      pittsburghracer FABO Gold Member FABO Gold Member

      Messages:
      3,889
      Likes Received:
      7032
      Joined:
      Apr 20, 2016
      Location:
      Freeport, PA.
      Local Time:
      9:33 AM

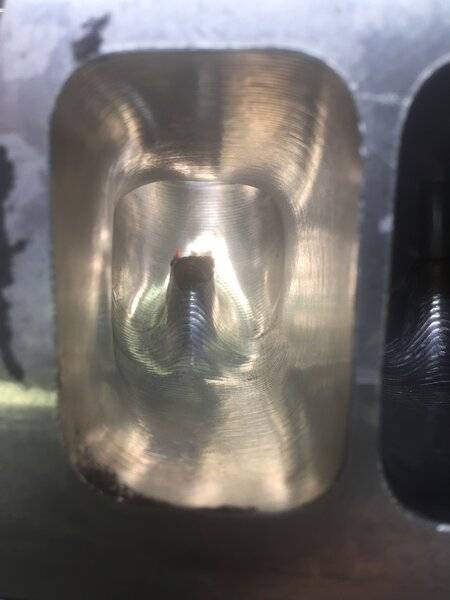

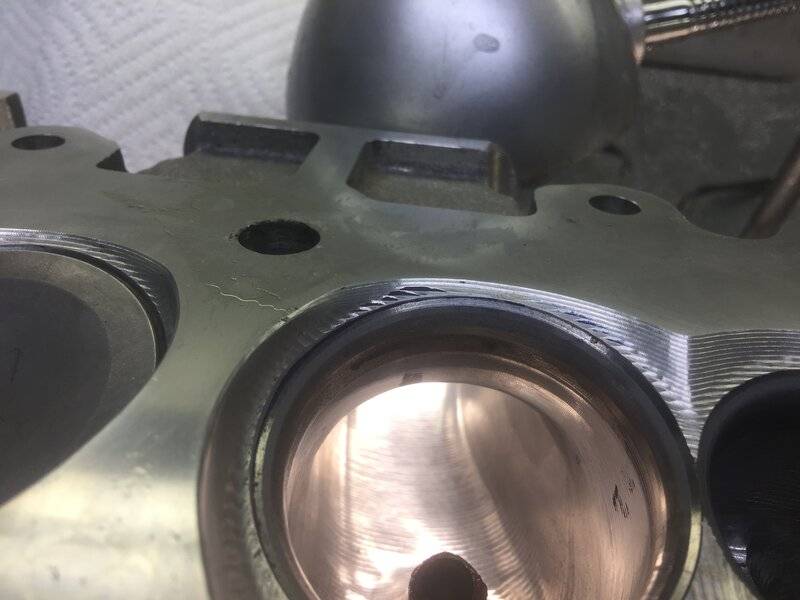

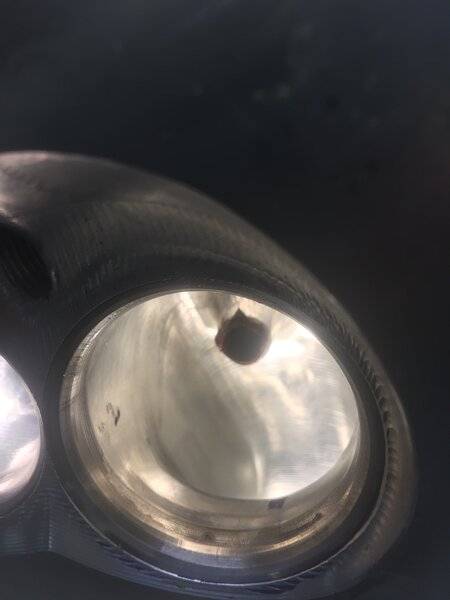

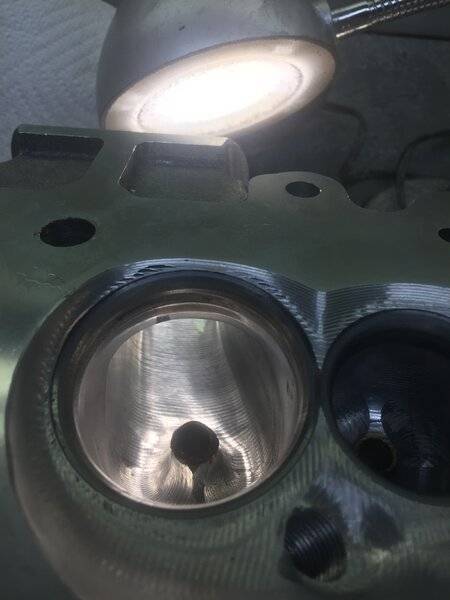

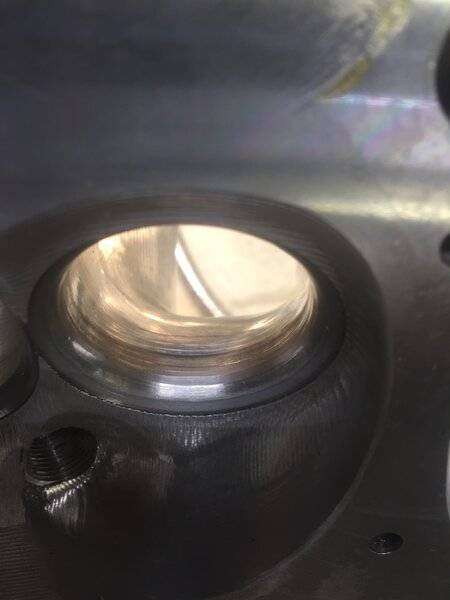

      6C62439B-17DD-4D96-AB28-E60E9FA87030.jpeg 202A49A1-01EC-487C-9916-8510D3D04D7F.jpeg 282CE8EF-3C49-4F0C-9DAE-C52FC328B073.jpeg FBAF0B49-1E9B-45F8-B21D-0207BD394BD9.jpeg 6CF2CE4E-F630-4BDA-B898-3EF93A9C495D.jpeg F4C65BDA-59FB-49D3-952C-B19249EB0E20.jpeg 8C07270A-05A6-4080-A2CD-284819C3F213.jpeg

      • Like Like x 8
      • Agree Agree x 1
      • Jadaharabi

        Jadaharabi FABO Gold Member FABO Gold Member

        Messages:
        7,449
        Likes Received:
        8083
        Joined:
        Jan 8, 2016
        Location:
        Peoria, Illinois
        Local Time:
        8:33 AM
        Are those marks around the valve seats inside the chamber there some kind of speed Secret?

      • famous bob

        famous bob mopar misfit

        Messages:
        17,293
        Likes Received:
        6819
        Joined:
        Aug 14, 2011
        Location:
        okla
        Local Time:
        8:33 AM
        LOOKS LIKE THEY WERE ORIGINALLY CNC`D-------

      • pittsburghracer

        pittsburghracer FABO Gold Member FABO Gold Member

        Messages:
        3,889
        Likes Received:
        7032
        Joined:
        Apr 20, 2016
        Location:
        Freeport, PA.
        Local Time:
        9:33 AM

        Yes this is a stock 245 cnc’d head. The marks you are looking at are probably the few that weren’t touched during the process. I was kinda shocked at how well these things flowed. Would I do more work to it if they were mine? Yes. Would I buy a set? Yes, if I could get heads with untouched exhaust ports. In my eyes the amount of metal they took out I couldn’t “fix” what I feel is done wrong and the airspeed and flow shows me that.

        • Thanks! Thanks! x 1
        • Krooser

          Krooser Reform School Graduate

          Messages:
          2,609
          Likes Received:
          2118
          Joined:
          Jul 19, 2015
          Location:
          Central Wisconsin
          Local Time:
          8:33 AM
          Today's approach to porting does not include smooth ports and chambers. The flow is better when the material is dimpled or otherwise textured... think of a golf ball that flies farther with dimples.

          • Agree Agree x 1
          • gregcon

            gregcon Well-Known Member

            Messages:
            379
            Likes Received:
            287
            Joined:
            Dec 20, 2009
            Local Time:
            8:33 AM
            Probably true, but you also gotta figure those ridges cost money to hand-polish out. Plus, when you hand work them you lose the same-ness of them.

            Especially in the chambers...those ridges must be prone to holding carbon and creating hot spots.

            • Agree Agree x 1
            • jazak5

              jazak5 Well-Known Member

              Messages:
              917
              Likes Received:
              397
              Joined:
              Aug 6, 2015
              Location:
              NY
              Local Time:
              9:33 AM
              cnc was programed for rough/fast speed rate//plus a smoother finish would require more material removal//trade off? hard to do with inconsistencies of a previously cast item being "fine tuned" verses machining a billet block

            • rumblefish360

              rumblefish360 So close, yet so far away FABO Gold Member

              Messages:
              38,745
              Likes Received:
              10352
              Joined:
              Jun 21, 2005
              Location:
              New York, on a Island
              Local Time:
              9:33 AM
              Looking forward to the numbers Pittsburghracer

              • Agree Agree x 2
              • Like Like x 1
              • gregcon

                gregcon Well-Known Member

                Messages:
                379
                Likes Received:
                287
                Joined:
                Dec 20, 2009
                Local Time:
                8:33 AM
                The single reason 'technically' the program would leave a rougher finish is machine time. A smoother finish generally will take longer to produce; you're taking more, smaller passes.

                • Like Like x 1
                • Agree Agree x 1
                • Wyrmrider

                  Wyrmrider FABO Gold Member FABO Gold Member

                  Messages:
                  3,568
                  Likes Received:
                  1705
                  Joined:
                  Sep 5, 2016
                  Location:
                  los angeles
                  Local Time:
                  6:33 AM
                  intake port ok
                  ex and chamber no
                  IMHO prove me wrong
                  I'd be checking

                  • Agree Agree x 2
                  • PRH

                    PRH Well-Known Member

                    Messages:
                    2,545
                    Likes Received:
                    3850
                    Joined:
                    Dec 14, 2018
                    Location:
                    So. Burlington, Vt
                    Local Time:
                    9:33 AM
                    I can’t really tell how those are from the pics, but on their BB CNC heads, sometimes the transition from the valve job into the exhaust bowl can leave a lot to be desired....... and improving it can sometimes result in pretty big increases in flow.

                    One set of SR’s I had here picked up over 30cfm on the exhaust side by recutting the seat and blending it in to the bowl.

                  • rumblefish360

                    rumblefish360 So close, yet so far away FABO Gold Member

                    Messages:
                    38,745
                    Likes Received:
                    10352
                    Joined:
                    Jun 21, 2005
                    Location:
                    New York, on a Island
                    Local Time:
                    9:33 AM
                    So, you have owned a set then?

                  • pittsburghracer

                    pittsburghracer FABO Gold Member FABO Gold Member

                    Messages:
                    3,889
                    Likes Received:
                    7032
                    Joined:
                    Apr 20, 2016
                    Location:
                    Freeport, PA.
                    Local Time:
                    9:33 AM
                    After my 2.2 mile walk today I made three stops for my son trying to find some starter wire anchors for a car he is working on for a Friend with the heads I flow tested. Couldn’t find any so I grabbed my Harbor Freight list I always have nearby and set off on the 45 mile round trip and they had them. 170.00 later I set off for home. I didn’t get a chance to organize the flow sheets so hopefully tomorrow. I will say I love my flowbench and digital electronics but where a fluid manometer can’t react fast enough to catch “jumpy” numbers a digital bench will. I don’t have or use a button to set my number so I usually list the high and low at a given lift. To guys that play with flowbenches they will understand easier what I’m trying to say. When I port heads I always try to calm that jumpiness and the used head shows that somewhat. The bolt bulge is pushed over “not enough” and the cnc Ridge was removed from the shortside. Not worth the 1400.00 charges but that’s another story. Hope that included porting the intake. I didn’t even really look at it or I would have probably had it on my porting bench. I didn’t reread all of this so I hope it makes sense. Lol

                  • mini

                    mini Small Bore Long Stroke

                    Messages:
                    483
                    Likes Received:
                    262
                    Joined:
                    Jun 1, 2009
                    Location:
                    Chatham Ontario
                    Local Time:
                    8:33 AM
                    Busy weekend but don't forget flow numbers ;-)

                  • pittsburghracer

                    pittsburghracer FABO Gold Member FABO Gold Member

                    Messages:
                    3,889
                    Likes Received:
                    7032
                    Joined:
                    Apr 20, 2016
                    Location:
                    Freeport, PA.
                    Local Time:
                    9:33 AM
                    Ok now some flow numbers. To help stop confusion the head listed as NEW is a 360-1 Indy 245 CNC'd head. The one listed as old is ALSO a 360-1 Indy 345 CNC'd head but reworked by Ryan (Shadydale) and another head porter in Pa. This is the one that has a hole in the exhaust port that I tried getting welded for him with little success so he is putting the one NEW head on.


                    New head Intake
                    .100-----55 cfm
                    .200----138
                    .300----191
                    .400----248
                    .450----273
                    .500----295----380-400--- fast but not to fast
                    .550----312-320--jumpy---air speed pegged at 401 PLUS across short-turn
                    .600----345-350
                    .650----351-358
                    .700----325-330----noisy----air jumping short-side. You can hear this with your ears with muffs on.
                    .750----328-334
                    .800----332-342
                    .850----322-338

                    New head Exhaust
                    .200---103
                    .300----135
                    .400----162
                    .500----185
                    .600----197
                    .700----210
                    .800----223

                    I totally HATE the way they went about doing this exhaust port and as much as I like what the intake side could be with very little work there is to much metal removed on the exhaust side to do what I would want to do. Airspeed on the exhaust should be at least 325 FPS. I had to really search to find 275 FPS. Old head numbers coming.

                    • Thanks! Thanks! x 3
                    • Like Like x 1
                    • PRH

                      PRH Well-Known Member

                      Messages:
                      2,545
                      Likes Received:
                      3850
                      Joined:
                      Dec 14, 2018
                      Location:
                      So. Burlington, Vt
                      Local Time:
                      9:33 AM
                      350 on the intake...... that’s a pretty nice number.

                      210@.700, 223@.800 on the exhaust...... not great.
                      How does the exhaust “sound”?

                      2.10 and 1.65 valves?
                      45* seats?

                      • Thanks! Thanks! x 1
                      • mini

                        mini Small Bore Long Stroke

                        Messages:
                        483
                        Likes Received:
                        262
                        Joined:
                        Jun 1, 2009
                        Location:
                        Chatham Ontario
                        Local Time:
                        8:33 AM
                        Those exhaust numbers are good but worse then my Edelbrock heads..

                      • pittsburghracer

                        pittsburghracer FABO Gold Member FABO Gold Member

                        Messages:
                        3,889
                        Likes Received:
                        7032
                        Joined:
                        Apr 20, 2016
                        Location:
                        Freeport, PA.
                        Local Time:
                        9:33 AM

                        The exhaust wasn’t really noisy but believe it or not the Speedmaster Head was much quieter. Not sure what valve angles but since they were out of the box I’m betting you are right. The seats were lightly rusted and I cleaned them up with transmission fluid and gray fiber cloth. The other shop north of me assembled the heads, blued them, and lapped them in. To me the exhaust were pathetic and even the intake ports were to jumpy and wouldn’t go on my engine that way.

                        • Thanks! Thanks! x 1
                        • pittsburghracer

                          pittsburghracer FABO Gold Member FABO Gold Member

                          Messages:
                          3,889
                          Likes Received:
                          7032
                          Joined:
                          Apr 20, 2016
                          Location:
                          Freeport, PA.
                          Local Time:
                          9:33 AM
                          The heads will have him in the low 10’s easily in his Duster on his 408 pump gas engine.

                          • Like Like x 1
                          • yellow rose

                            yellow rose Master Of Insanity

                            Messages:
                            23,959
                            Likes Received:
                            19972
                            Joined:
                            Jun 19, 2015
                            Location:
                            Walking a crooked mile
                            Local Time:
                            6:33 AM
                            Pay attention readers...PBR is giving free lessons on why flow numbers are NOT the do all, be all everything to die for numbers.

                            THANKS PBR.

                            • Agree Agree x 3
                            • Like Like x 1
                            • pittsburghracer

                              pittsburghracer FABO Gold Member FABO Gold Member

                              Messages:
                              3,889
                              Likes Received:
                              7032
                              Joined:
                              Apr 20, 2016
                              Location:
                              Freeport, PA.
                              Local Time:
                              9:33 AM

                              Thank you. Sir

                            • ValiantRacing

                              ValiantRacing Well-Known Member

                              Messages:
                              415
                              Likes Received:
                              293
                              Joined:
                              Jun 12, 2009
                              Location:
                              El Dorado Ca.
                              Local Time:
                              6:33 AM
                              :thumbsup:

                            • Krooser

                              Krooser Reform School Graduate

                              Messages:
                              2,609
                              Likes Received:
                              2118
                              Joined:
                              Jul 19, 2015
                              Location:
                              Central Wisconsin
                              Local Time:
                              8:33 AM
                              They are designed to be that way...a smooth finish is going backwards.

                            • pittsburghracer

                              pittsburghracer FABO Gold Member FABO Gold Member

                              Messages:
                              3,889
                              Likes Received:
                              7032
                              Joined:
                              Apr 20, 2016
                              Location:
                              Freeport, PA.
                              Local Time:
                              9:33 AM

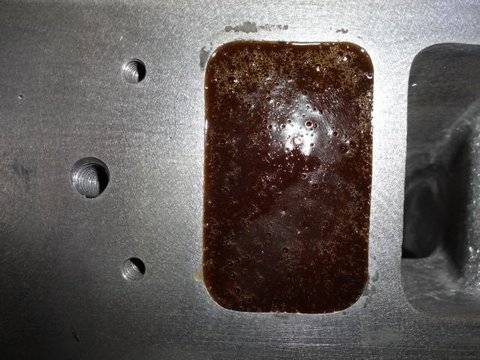

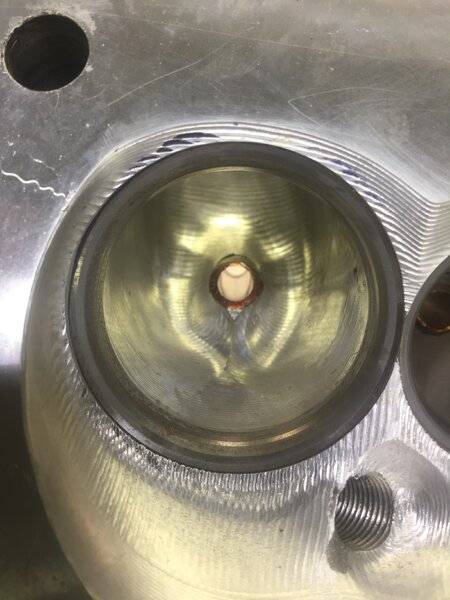

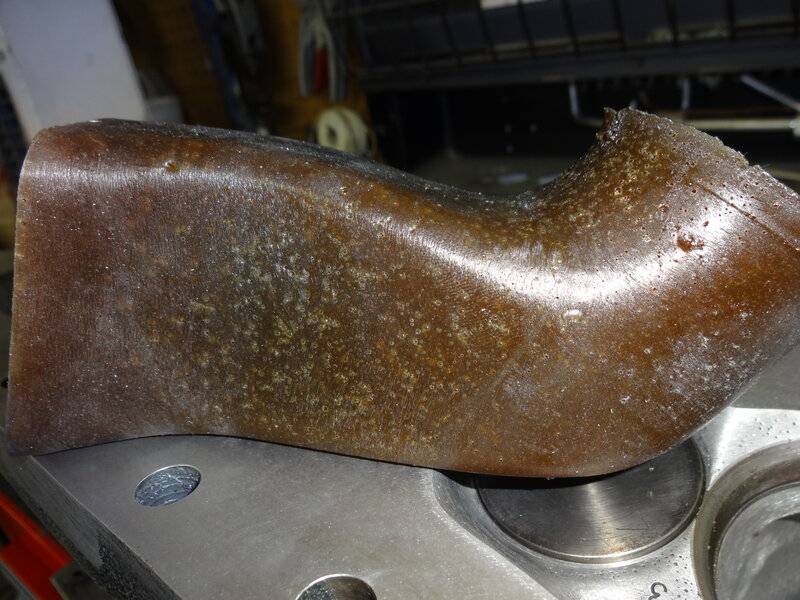

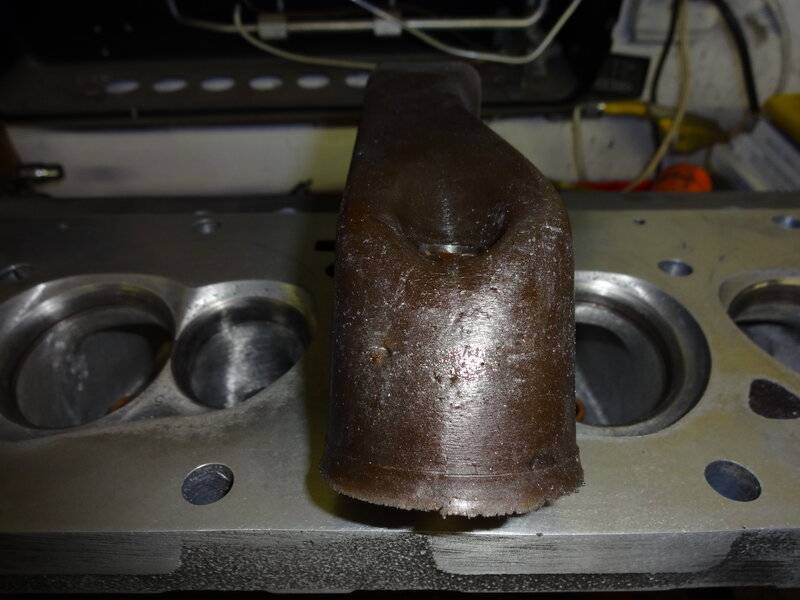

                              BDEF05CA-0BF3-4E27-8539-F8DEDD647C33.jpeg 3AFF9FB7-0753-4962-B790-F9F0120E4443.jpeg 2841D7B4-0084-4BA8-9303-F77A979327B9.jpeg 972D84C4-E858-4242-ADD4-D113736DBE81.jpeg I will be pouring a port with mold compound for future knowledge like I did on my B1 heads. Intake side only of course

                              • Like Like x 5
