Found a Source for 10” rear drums with 1-3/4” shoe

Brakes for your Classic Mopar

  1. CUDACOX

    CUDACOX Well-Known Member

    Messages:
    4,169
    Likes Received:
    104
    Joined:
    Jun 28, 2009
    Location:
    Innisfil, Ontario, Canada
    Local Time:
    11:23 PM
    * Don helped me out big time!
    Picked them up at the storage place this morning.
    Thanks again Don!

  2. sparksfly121

    sparksfly121 67 Dart GT Conv

    Messages:
    79
    Likes Received:
    0
    Joined:
    Mar 23, 2014
    Location:
    Nashville, TN
    Local Time:
    11:23 PM
    I have done a search for this part number on a few websites..
    Some say it's compatible with a '67 Dodge Dart, others say it's not.
    I've verified with my mechanic that it's a 10" drum, but other than that, can anyone verify that it fits a '67 Dart Convertible?
    Need brakes soon. :)

  3. chryslerfat

    chryslerfat Well-Known Member

    Messages:
    12,221
    Likes Received:
    4401
    Joined:
    Aug 23, 2008
    Location:
    Monroe,Michigan
    Local Time:
    12:23 AM
    Yes if you have original small bolt then these are the correct ones for you.

  4. buck351

    buck351 Well-Known Member

    Messages:
    425
    Likes Received:
    57
    Joined:
    Apr 22, 2010
    Location:
    Campton Hills, IL
    Local Time:
    11:23 PM
    I talked to the technical group at Centric to verify this number, 123.63044, was correct for the 10" x 1 3/4" drum with 4" bolt circle. The guy said yes and the specs on the web page were incorrect. So I ordered a set from the local parts place after telling him I checked. I just went to pick them up and check the size on them. NOPE 2 1/8" wide drums. They have that exact number stamped on the drum. I will be calling Centric again.

  5. g413

    g413 Well-Known Member

    Messages:
    491
    Likes Received:
    111
    Joined:
    Aug 26, 2014
    Location:
    Fresno, CA
    Local Time:
    11:23 PM
    I've got good news for you. You have the right drums.

    I went out to check my drums just to verify. The "friction surface" on my drum is 2-1/8" wide. The friction surface on the drum has to be a little wider than the brake shoe width of 1-3/4". In this case, you have 3/16" clear on each side.

    You're good to go -- or stop, as the case may be.

    • Like Like x 1
    • buck351

      buck351 Well-Known Member

      Messages:
      425
      Likes Received:
      57
      Joined:
      Apr 22, 2010
      Location:
      Campton Hills, IL
      Local Time:
      11:23 PM
      Well I took the drums home to try one and it fits! Guess the different design thru me off. Great. Thanks for the info and checking.

    • bluefish1967

      bluefish1967 Well-Known Member

      Messages:
      127
      Likes Received:
      42
      Joined:
      Apr 8, 2007
      Location:
      ohio
      Local Time:
      11:23 PM
      I just started to find all of the parts for my 8 3/4 build. Tried to locate the rear 10 inch drums, but could not find them anywhere including Rock Auto. Finally, asked the parts guy at O 'Reillys. The web site I checked did not show 10 SBP drums, but he located them easily and had them shipped in the next day. They look good, but won't know for sure on the fit until I go to the shop on Saturday. The measurements look good.
      He told me to pass the word along about the availabilty of these drums. So if anyone is interested, they can get them for $ 49.00 each under Best Brake Select brand , part # BBR 2932d6s. Larry

    • 65Val

      65Val Average Length Member

      Messages:
      4,982
      Likes Received:
      961
      Joined:
      Oct 14, 2005
      Location:
      Victoria, BC, Canada, EH!
      Local Time:
      9:23 PM
      OK, as of today, I've checked out availability of the C-Tek drums and the Best Brakes drums....no go on both, so where can I get new brake drums for my 8 3/4 rear, 10 x 1.75" brakes now?

    • g413

      g413 Well-Known Member

      Messages:
      491
      Likes Received:
      111
      Joined:
      Aug 26, 2014
      Location:
      Fresno, CA
      Local Time:
      11:23 PM
      It is still interesting that many parts houses don't clearly list this drum. First of all remember that the C-Tek number is for a SBP. So if you have SBP drums, call Centric directly and ask them for a retailer in your area that they ship to. Centric's phone number is in the original post.

      I just noticed you're from Canada, I'd still call Centric directly. However, many people have got these drums from RockAuto. You could call RockAuto and insist on that number, regardless of what is posted on their Website.

      If you still have trouble, contact me and I'll do some checking on my end. Good luck.

    • tarvin890

      tarvin890 tarvin890

      Messages:
      1,096
      Likes Received:
      344
      Joined:
      Jul 7, 2014
      Location:
      Mopar Land
      Local Time:
      12:23 AM
      THANKS VERY MUCH FOR THIS POST!!!! rock auto is out today no replen date... did scoop 2 off ebay.... i think i may get a 20ft container load for future sales....and stock em up...

    • tarvin890

      tarvin890 tarvin890

      Messages:
      1,096
      Likes Received:
      344
      Joined:
      Jul 7, 2014
      Location:
      Mopar Land
      Local Time:
      12:23 AM
      type the part number in on ebay.... a guy in jersey has maybe 1 or 2 left... rock was out so i scooped up two before they were gone on ebay one from a guy in arizona and the other from jersey..... maybe we can get enough peeps together to order a small shipping container direct....20 foot container not the 40 or 53... thoughts? these would be an asset for the future

    • tarvin890

      tarvin890 tarvin890

      Messages:
      1,096
      Likes Received:
      344
      Joined:
      Jul 7, 2014
      Location:
      Mopar Land
      Local Time:
      12:23 AM
    • tarvin890

      tarvin890 tarvin890

      Messages:
      1,096
      Likes Received:
      344
      Joined:
      Jul 7, 2014
      Location:
      Mopar Land
      Local Time:
      12:23 AM
      my old drums have that cool angle ridge that make them look aerospaceship looking..

    • Abodybomber

      Abodybomber Breaking street machines , since 1983.....:) Legendary Member

      Messages:
      31,707
      Likes Received:
      10467
      Joined:
      May 21, 2011
      Location:
      Arroyo grande ca
      Local Time:
      9:23 PM
      On the Western Coastline, Fast Undercar auto parts chain . Their primary brake supplier is Centric, might try them as well.

    • g413

      g413 Well-Known Member

      Messages:
      491
      Likes Received:
      111
      Joined:
      Aug 26, 2014
      Location:
      Fresno, CA
      Local Time:
      11:23 PM
      I called Centric today and the lady confirmed that they do NOT have any in inventory at this time. She did say that more of these drums have been ordered, but there is no firm shipping date. Try again at the end of June.

    • krazykuda

      krazykuda Well-Known Member FABO Gold Member How-To Section Editor

      Messages:
      51,082
      Likes Received:
      15838
      Joined:
      Aug 20, 2007
      Location:
      Orland Park, IL
      Local Time:
      11:23 PM
    • Daves69

      Daves69 FABO Gold Member FABO Gold Member

      Messages:
      4,588
      Likes Received:
      2706
      Joined:
      Feb 20, 2011
      Location:
      WestOfChi
      Local Time:
      11:23 PM
      Supposed to get a pair in Friday from Rockauto. I'll let ya' know.

    • tarvin890

      tarvin890 tarvin890

      Messages:
      1,096
      Likes Received:
      344
      Joined:
      Jul 7, 2014
      Location:
      Mopar Land
      Local Time:
      12:23 AM
      Centric 123.63044 10 inch rear 5x4 bp are plentifull on ebay again and i am guessing rock auto also, better stock up if you missed last round of stock!!!!!!!!!! they are on ebay for @ 43 total per..... rock auto may have them also....

    • tarvin890

      tarvin890 tarvin890

      Messages:
      1,096
      Likes Received:
      344
      Joined:
      Jul 7, 2014
      Location:
      Mopar Land
      Local Time:
      12:23 AM
    • Daves69

      Daves69 FABO Gold Member FABO Gold Member

      Messages:
      4,588
      Likes Received:
      2706
      Joined:
      Feb 20, 2011
      Location:
      WestOfChi
      Local Time:
      11:23 PM
      Got them in from RockAuto this afternoon. Should work fine when I add some holes.

      New is about .060" thinner than the old.
      Inside casting surface is rough.
      Register is tight on an old driver side axle.


      Attached Files:

    • 340duster340

      340duster340 Well-Known Member

      Messages:
      1,152
      Likes Received:
      53
      Joined:
      Jun 20, 2004
      Location:
      long island NY
      Local Time:
      5:23 AM
      this thread is a life saver. i see they are up to $53 bucks now on ebay, but still a good deal.

      added to watch list, i may need to get a pair.

    • Rapid Robert

      Rapid Robert Well-Known Member

      Messages:
      1,042
      Likes Received:
      116
      Joined:
      Aug 6, 2006
      Location:
      Lincoln Nebraska
      Local Time:
      11:23 PM
      Just ordered (2) from O'reillys. Yes 49 ea + tax no shipping charges. on the part # the (6) is actually a (g)

    • 340fourspeedDuster

      340fourspeedDuster Well-Known Member

      Messages:
      298
      Likes Received:
      68
      Joined:
      Aug 17, 2004
      Location:
      Sunspot AZ
      Local Time:
      10:23 PM
      Just received 2 drums from RockAuto yesterday 12/24. The drums were $30/ea with $8 for shipping. Dang things were scheduled to come in 12/28, but showed up 4 days earlier.
      Amazing during the Christmas season. Now to get the 4.5" hole pattern drilled. I have a pair of the the factory 10" "Darth Vader" looking drums. Wanted to get them turned to clean them up. After going to 5 shops including Sun Devil Auto, Greulichs, O'reillys, no one could turn them with the the current shop equipment, or their equipment was broken. Buy new for $30 each, or pay $20 each to turn them.....Hmmm

    • AlV

      AlV Crabs in a barrel

      Messages:
      1,733
      Likes Received:
      263
      Joined:
      Sep 24, 2012
      Location:
      new jersey
      Local Time:
      12:23 AM
      How are you planning to drill those for the 4.5 pattern?

    • 340fourspeedDuster

      340fourspeedDuster Well-Known Member

      Messages:
      298
      Likes Received:
      68
      Joined:
      Aug 17, 2004
      Location:
      Sunspot AZ
      Local Time:
      10:23 PM

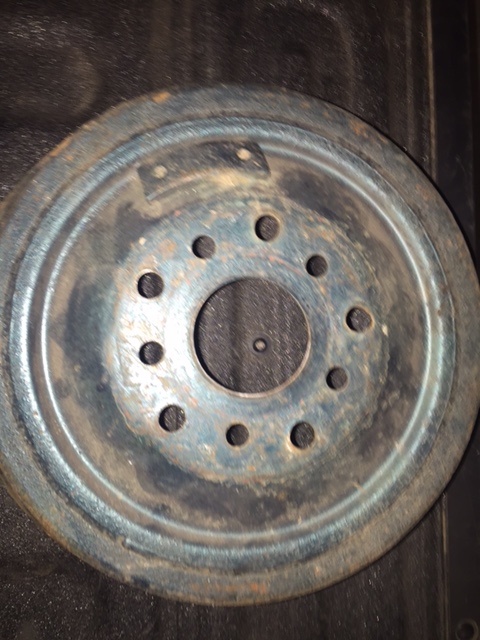

      I have a 10" drum with the 4.5" pattern from a B body. Invert the B body drum over the 4" pattern drum, center the middle hole. The 4.5" B body drum with a larger center hole, easy to have the center holes concentric, and have the new stud holes 1/2 way between the 4" holes. Hole pattern will look like this.


      Attached Files:
