post # 5 Windage Tray Height Location



[273]

I was unaware of any of your videos. Where can people find your content? When you say equipment--Do you mean video equipment or machine shop equipment? Inquiring minds....J.Rob

Bob Mopar



[skrews]

Some pics of my tray and scaper setup. Its a milodon screen for a SB Chevy thats been modified, and a I J scaper.



[Newbomb Turk]

Some pics of my tray and scaper setup. Its a milodon unit for a SB Chevy thats been modified.

View attachment 1716385594

View attachment 1716385595

View attachment 1716385596

View attachment 1716385597

View attachment 1716385598

That’s closer to what I’m going to do. Anywhere the rod throws are covered by the tray I’m going to screen it.



[skrews]

That’s closer to what I’m going to do. Anywhere the rod throws are covered by the tray I’m going to screen it.

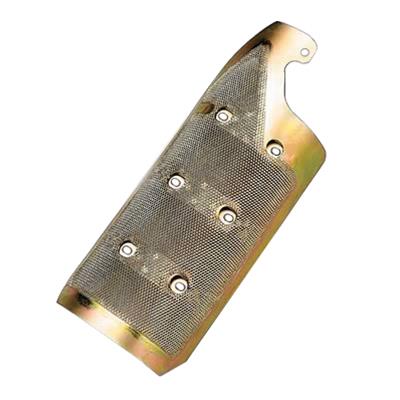

That screen started off as a 32255 Milodon.

Milodon 32255 Milodon Diamond Stripper Windage Trays | Summit Racing

Free Shipping - Milodon Diamond Stripper Windage Trays with qualifying orders of $109. Shop Windage Trays at Summit Racing.

www.summitracing.com



[NCmtnDWELLER]

Since everyone loves pictures!

View attachment 1716379955

View attachment 1716379956

View attachment 1716379957

Looking good HOSS



[ValiantRacing]

Here is one i did about 10 years ago



[NC Engine Builder]

So got a little more done, all the machine work is complete, got it final washed and ready for assembly. @Earlie A is supposed to buy this thing when we are done, so per his request I shot it with Chrysler red, although it shows up more orange in the pictures.



[NC Engine Builder]

Knocked some core plugs in her, and got the cam bearings installed with my hydraulic cam bearing installation tool. This tool was crazy expensive, but it makes bearing installation a breeze. No more hammering them in the old way!



[PRH]

Were you planning on checking the torque to turn the rotating assy?

What’s the ring pack on the pistons?



[Brian Hafliger]

So got a little more done, all the machine work is complete, got it final washed and ready for assembly. @Earlie A is supposed to buy this thing when we are done, so per his request I shot it with Chrysler red, although it shows up more orange in the pictures.

View attachment 1716386486

I love the Chrysler Red!!



[NC Engine Builder]

Were you planning on checking the torque to turn the rotating assy?

What’s the ring pack on the pistons?

I probably will. This one just has icons with the 1/16 1/16 3/16 ring package.



[NC Engine Builder]

I love the Chrysler Red!!

It looks pretty nice in person. I'm honestly almost tired of painting hemi orange. I like when people ask for something different



[Garrett Ellison]

Hey @Earlie A , I apologize if I've already asked, but what are you thinking about dropping that into ? I'd liked to have had that in my '76 Warlock I had "once upon a time..."



[Earlie A]

Hey @Earlie A , I apologize if I've already asked, but what are you thinking about dropping that into ? I'd liked to have had that in my '76 Warlock I had "once upon a time..."

65 Dart



[NC Engine Builder]

65 Dart

Dress her up to look like a lil old 273...



[Dart Frog]

That block sure looks like Street hemi orange to me?



[NC Engine Builder]

That block sure looks like Street hemi orange to me?

It's not, its red. Phones and computers distort colors



[33IMP]

That block sure looks like Street hemi orange to me?

Come on! That's clearly Chevrolet orange!






Lol.



[Newbomb Turk]

I love the Chrysler Red!!

It’s my favorite Chrysler engine color



[Bodyperson]

Pretty sure it's a Volvo color.



[Newbomb Turk]

Pretty sure it's a Volvo color.

That's just MEAN lol



[gzig5]

That block sure looks like Street hemi orange to me?

I saw it in person today, and it’s definitely red.



[NC Engine Builder]

More boring work, file fit and debured the rings, hung the pistons on the rods and verified deck height. Coming along none the less.



[NC Engine Builder]

Shooting for zero deck, always a relief when you can hit it dead on.
