    Anybody done these yet? Thinking the Sandin compact A/C compressor low on the drivers side with a compact P/S pump above it. I done several B/RB and Hemi component assemblies like this but not any small blocks.

    Before the cocktail napkins come out, I thought i would see what is out there. Not wanting to do a one-off if someone is already producing them.

    this style pump...
    https://www.speedwaymotors.com/Aluminum-Power-Steering-Pumps-w-Reservoir,12707.html

  2. hemi446

    hemi446 Well-Known Member

    Messages:
    711
    Likes Received:
    231
    Joined:
    Aug 3, 2013
    Location:
    Ellicott City MD
    Local Time:
    8:21 PM

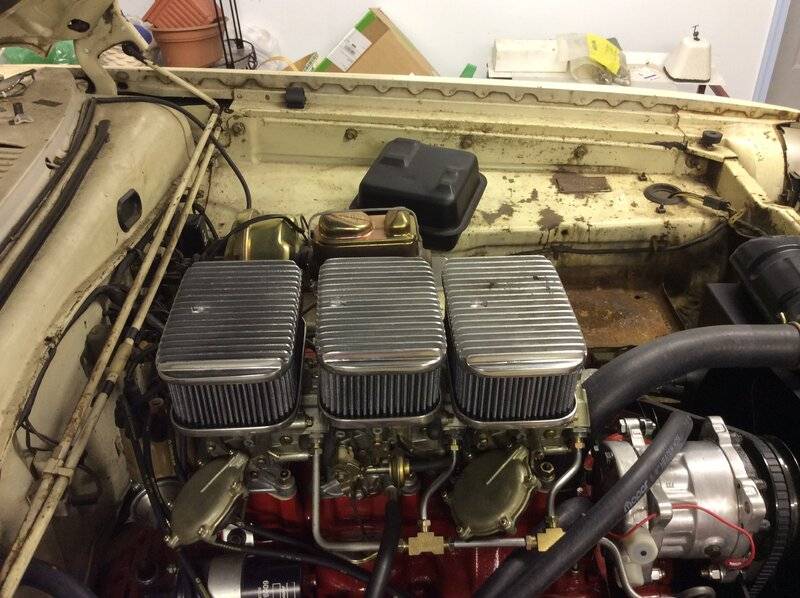

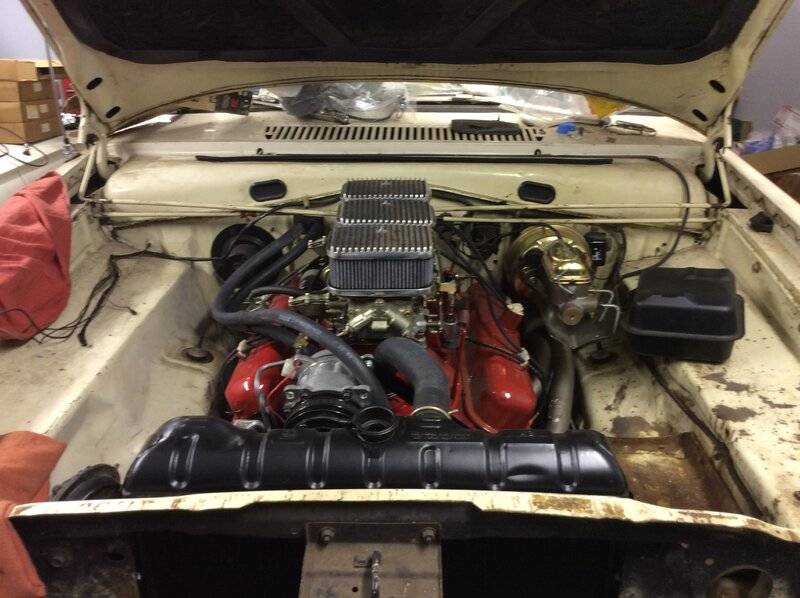

    I put this on my 379 small block. These are the mock up pictures.




  3. kursplat

    kursplat FABO Gold Member FABO Gold Member

    Messages:
    3,613
    Likes Received:
    2478
    Joined:
    Aug 24, 2010
    Location:
    so cal
    Local Time:
    5:21 PM
    Bouchillon. brackets worked great on my 74'

    but now that i re-read this i see how you were thinking low drivers side. when i was looking a couple years ago i didn't see anyone doing that for small block

    Last edited: May 27, 2020
  4. BWDart

    BWDart FABO Gold Member FABO Gold Member

    Messages:
    1,314
    Likes Received:
    373
    Joined:
    May 25, 2005
    Location:
    New Braunfels TX
    Local Time:
    7:21 PM
  5. hemi446

    hemi446 Well-Known Member

    Messages:
    711
    Likes Received:
    231
    Joined:
    Aug 3, 2013
    Location:
    Ellicott City MD
    Local Time:
    8:21 PM
    It’s probably the same kit. I’m running p/s but you can’t see it in those pictures and the water pump outlet is on the other side for 69 and earlier. I need something that would work one the six pack intake. But it all fits. Now We are going to try to but it on a Str-12 intake with fuel injection on a 426 small block

  6. voodoo340

    voodoo340 Active Member

    Messages:
    38
    Likes Received:
    43
    Joined:
    Jul 14, 2008
    Location:
    SC
    Local Time:
    8:21 PM
    Hemi446,
    Which p/n Sanden compressor is that you have? I've been looking for a compact model like that to use on my turbo setup where I've moved the alternator to drivers side. I hear of compressor models like "peanut" and "shorty" but a part number would sure be nice. I appreciate it!

  7. hemi446

    hemi446 Well-Known Member

    Messages:
    711
    Likes Received:
    231
    Joined:
    Aug 3, 2013
    Location:
    Ellicott City MD
    Local Time:
    8:21 PM
    • Like Like x 1
    • Demonracer

      Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

      Messages:
      3,922
      Likes Received:
      1842
      Joined:
      Jan 31, 2010
      Location:
      Cleveland, Texas
      Local Time:
      7:21 PM
      Denny, have you tried Classic Auto Air, or Vintage Air?

    • voodoo340

      voodoo340 Active Member

      Messages:
      38
      Likes Received:
      43
      Joined:
      Jul 14, 2008
      Location:
      SC
      Local Time:
      8:21 PM
    • Needswork

      Needswork Well-Known Member

      Messages:
      65
      Likes Received:
      19
      Joined:
      Oct 20, 2015
      Location:
      Northern CA
      Local Time:
      5:21 PM
      I've heard the reference to a "peanut" compressor as well and came to the conclusion it applies to the Sanden SD-7B10. It's the shortest compressor I could find. I purchased one sold by Vintage Air. It's in their catalog (near the end) and shows dimensions.

      I was also interested in the lower driver side mount position. I didn't find anyone that sells a kit or brackets for this. I'm putting mine on a 340 in a '67 Dart. I ended up modifying a smog pump bracket that I found on a '78 Aspen in the wrecking yard. The smog pump was on the lower driver side underneath the PS pump. The car is not together yet, so I still need to do the plumbing.

    • HemiDenny

      HemiDenny HDK Suspension FABO Gold Member

      Messages:
      8,022
      Likes Received:
      1571
      Joined:
      May 31, 2006
      Location:
      NW Ohio
      Local Time:
      7:21 PM
      I got this with leftover brackets from the similar configuration of the B/ RB / Hemi set up......I'll do the proto-types next week see what you guys think.

    • JDMopar

      JDMopar Well-Known Member

      Messages:
      3,443
      Likes Received:
      2334
      Joined:
      Jan 19, 2012
      Location:
      Candler, NC/Myrtle Beach, SC
      Local Time:
      8:21 PM
      :thumbsup: If you can get it to work, you'll be curing a lot of ills surrounding SBM AC brackets. I used Classic Air brackets on a 360 in a Challenger several years ago. They were ok, but required an idler pulley.....which sucked. Mounting a Sanden pump up top gets in the way of hose routing more times than not. Bouchillon brackets are functional, but :eek: ! Thanks for doing this.....I know they will turn out great!

    • 512Stroker

      512Stroker We are all here because we are not all there.

      Messages:
      1,862
      Likes Received:
      1316
      Joined:
      May 30, 2016
      Location:
      Freedom, MO
      Local Time:
      7:21 PM
      Subscribed

    • RedFish

      RedFish Well-Known Member

      Messages:
      24,596
      Likes Received:
      3082
      Joined:
      Sep 5, 2007
      Local Time:
      8:21 PM
      I know modern vehicles have the a/c compressor mounted very low but... they have a lot of shrouding too. I worry that this configuration in our classics would subject the a/c clutch to too much water, sand, etc...
      I would prefer the compressor where the alternator is (refrigerant hoses on that side after all) but the battery tray is in the way of moving the alternator over there.

    • HemiDenny

      HemiDenny HDK Suspension FABO Gold Member

      Messages:
      8,022
      Likes Received:
      1571
      Joined:
      May 31, 2006
      Location:
      NW Ohio
      Local Time:
      7:21 PM
      [QUOTE="RedFish, post: 197

      I would prefer the compressor where the alternator is (refrigerant hoses on that side after all) but the battery tray is in the way of moving the alternator over there.[/QUOTE]

      I understand,....then I need to mark you down as a no
      :)

    • pomonamissel

      pomonamissel Well-Known Member

      Messages:
      1,937
      Likes Received:
      967
      Joined:
      May 21, 2015
      Location:
      san jose , ca
      Local Time:
      7:21 PM

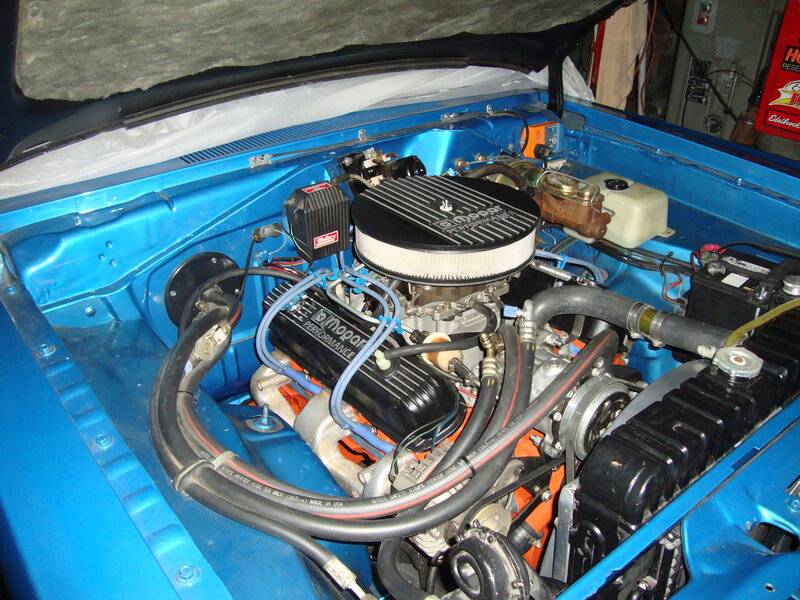

      this was classic or vintage i've forgotten . it came as a kit . just bolted up although the lines n fittings were old tech for r12 , no good for 134 . so i used a12 duracool . works great , blows 55 temp at idle . no ps here . DSC08613.JPG DSC08615.JPG DSC08616.JPG DSC08621.JPG DSC08622.JPG

    • HemiDenny

      HemiDenny HDK Suspension FABO Gold Member

      Messages:
      8,022
      Likes Received:
      1571
      Joined:
      May 31, 2006
      Location:
      NW Ohio
      Local Time:
      7:21 PM
      Just not a fan of the compressor in the factory location. Might be a good place for it, but I want it incognito, My hot rods are more like coffee getters anyways, not your daily driver, go to work car. With the battery almost always mounted in the trunk, low drivers side location works for me. The elements are not a factor to me either, I get caught in the rain every now and then, a shit-storm when my wife gets her nose open.....but never a sand storm.

      • Like Like x 1
      • pomonamissel

        pomonamissel Well-Known Member

        Messages:
        1,937
        Likes Received:
        967
        Joined:
        May 21, 2015
        Location:
        san jose , ca
        Local Time:
        7:21 PM
        that duster build was a stockish driver . and thats what he delivered to me to install . now he wants me to build him a model a or duce coupe with ac ps pb pw cruz with mopar running gear . trying to talk him into a late hemi package , so that should be fun to build , i've done other pre war cars and he liked what i had done on them . i'm a hotrodder at heart . and a big mopar fan , so it will be a mopar or no car builds for me at this point in my life . for a cleaner look the alt and ps , air cond could all be tucked away from view , and for a non driver it works for most . i've never been a showy guy , built showy stuff for others . just like jewelry you take it out polish it up , go show it off and then back in the box . i guess its fine , just not my idea of a great time . i've done my shear of polish'n n wax'n . here is a couple pitt racers we built . candy apple red one is a buddy's and that candy orangy one is mine . we drag them out with my 63 sfgc mw car . Fury.png DSC00238.JPG DSC00239.JPG DSC04698.JPG DSC04694.JPG

        • Like Like x 3
        • HemiDenny

          HemiDenny HDK Suspension FABO Gold Member

          Messages:
          8,022
          Likes Received:
          1571
          Joined:
          May 31, 2006
          Location:
          NW Ohio
          Local Time:
          7:21 PM
          here is what I have in mind.....used the HDK B/RB/Hemi brackets and need to re-map the block mounting hole before cutting new brackets.

          20200602_160706 (1).jpg



          • Like Like x 6
          • Demonracer

            Demonracer 71 Demon 00 Ram 16 Chrysler 300S 05 Caravan FABO Gold Member

            Messages:
            3,922
            Likes Received:
            1842
            Joined:
            Jan 31, 2010
            Location:
            Cleveland, Texas
            Local Time:
            7:21 PM
            Dang, you do some very nice work!

          • pomonamissel

            pomonamissel Well-Known Member

            Messages:
            1,937
            Likes Received:
            967
            Joined:
            May 21, 2015
            Location:
            san jose , ca
            Local Time:
            7:21 PM
            i always like to have at least one belt pulling straight down to the crank from the water pump , for a positive pull and very little slippage . that said looks cool there . if you dumped the mech fuel pump it could be on the passenger side low mount . isn't this ride going efi carb style ? with the pump in the tank ?

          • str12-340

            str12-340 FABO Gold Member FABO Gold Member

            Messages:
            1,285
            Likes Received:
            698
            Joined:
            Dec 26, 2012
            Location:
            Vashon, WA
            Local Time:
            5:21 PM
            Last year at Carlisle there was a Duster with a Hemi in it that had the compressor and the ps pump in just that general location. It was neat and pretty and didn't dominate the engine compartment. Call the tech line at Classic Air and ask them for pictures - they made custom hoses for the owner and are really proud of the results. They might even be able to put you in touch with the owner.

          • 512Stroker

            512Stroker We are all here because we are not all there.

            Messages:
            1,862
            Likes Received:
            1316
            Joined:
            May 30, 2016
            Location:
            Freedom, MO
            Local Time:
            7:21 PM
            • Like Like x 1
            • HemiDenny

              HemiDenny HDK Suspension FABO Gold Member

              Messages:
              8,022
              Likes Received:
              1571
              Joined:
              May 31, 2006
              Location:
              NW Ohio
              Local Time:
              7:21 PM
              no on the efi, I dropped the entire package out as you see it and it is going back in that way. no pump in the tank. There are pluses....and minus's of the pump in the tank, not even taking into the consideration of unnecessary and additional $$$$ for this build.

              Another PIA of the low passenger side is routing the hoses. Remember, the evaporator hose connection from the compressor is on the drivers side.....IMO, it makes sense and is much cleaner to have the compressor not too far away or on the other side of the engine.

              Since I have already done several Hemi versions with this location, I already have a good handle on the hoses.

              Last edited: Jun 3, 2020
              • Agree Agree x 1
              • HemiDenny

                HemiDenny HDK Suspension FABO Gold Member

                Messages:
                8,022
                Likes Received:
                1571
                Joined:
                May 31, 2006
                Location:
                NW Ohio
                Local Time:
                7:21 PM
                could have been either Big Jims butterscotch HemiDemon, ....or HemiMarks black HemiDemon. I did both and they were designed / installed using the same version of brackets used for the small block mock-up pictured above.

                Last edited: Jun 3, 2020
                • Like Like x 3
