Battery draining overnight

Electrical and Ignition

  1. 67Dart273

    67Dart273 Well-Known Member

    Messages:
    40,297
    Likes Received:
    7953
    Joined:
    Oct 14, 2010
    Location:
    Idaho
    Local Time:
    5:35 AM
    Did not see your post, ^^THIS^^

  2. Craig Burriss

    Craig Burriss Well-Known Member

    Messages:
    149
    Likes Received:
    69
    Joined:
    Aug 30, 2017
    Location:
    Statesboro Georgia
    Local Time:
    8:35 AM
    I’ve been reading the MadElectric article and I’m still a little confused. What I’ve been able to understand is this,
    1. Disconnect everything from the ammeter.
    2. Splice the two wires together that were on the ammeter.
    3. Run an 8gauge wire from the alt to the starter relay. (Do I fuse this?)
    4. Drill a hole in the big firewall harness plug thing where the red wire goes through.
    5. Splice the red wire with fusible link into the wire it would’ve plugged into on the firewall connector.

    Does this sound right? I’m trying to do this the best way possible while I’m in there because there’s nothing I hate more than wiring problems. Any input or pictures/diagrams will be greatly appreciated.

  3. Craig Burriss

    Craig Burriss Well-Known Member

    Messages:
    149
    Likes Received:
    69
    Joined:
    Aug 30, 2017
    Location:
    Statesboro Georgia
    Local Time:
    8:35 AM
    This is a one wire alternator and the voltage regulator is no longer in the car

  4. Mattax

    Mattax Just the facts, ma'am FABO Gold Member

    Messages:
    7,736
    Likes Received:
    4471
    Joined:
    Feb 7, 2013
    Location:
    Phila. Pa
    Local Time:
    8:35 AM
    Because they're a little confused. They think the alternator's main job is to supply the battery, and then the battery supplies everything else. shake_head-gif.gif
    :BangHead:
    Sorry, but when you have a problem and only post a portion of the information its very frustrating.
    What year, model, engine and options were on the car to begin with?
    What modifications, new electric items (fans, amplifier, EFI or whatever) have been done?
    IMO, the best wiring scheme for a non-modified '70-'74 with a higher capacity alternator is a the optional factory 60/65 amp alternator wiring I posted earlier in this thread. To that, add a headlight relay wire harness connected to the alternator. '66-69 would be similar.
    But I also only see disadvantages to using a single wire internally regulated alternator, except for specific applications - like a tractor.

    • Like Like x 1
    • Craig Burriss

      Craig Burriss Well-Known Member

      Messages:
      149
      Likes Received:
      69
      Joined:
      Aug 30, 2017
      Location:
      Statesboro Georgia
      Local Time:
      8:35 AM
      This car is a clustertruck of everything. When I got it, it was just a half rolling shell. It’s a 1970 318 Duster with a 71 wiring harness with a carbureted 440 and a single wire alternator and electronic distributor. It has electric fans but they’re on a relay so they draw straight from the battery. Currently it has no electric devices inside other than the headlight and wiper switches. I plan on adding a nice stereo system later on. The headlights are not on a relay yet

    • 67Dart273

      67Dart273 Well-Known Member

      Messages:
      40,297
      Likes Received:
      7953
      Joined:
      Oct 14, 2010
      Location:
      Idaho
      Local Time:
      5:35 AM
      You have a one-wire. You should be able to run a jumper direct from the alternator output to the battery ---with a fuse/ fuse link/ breaker for protection, and IT SHOULD NOT drain the battery. If that is a one wire, and disconnecting the alternator stopped the problem, then THAT ALTERNATOR IS DEFECTIVE

      And as I said earlier, the people at wherever you bought it from should have known that

      • Like Like x 1
      • Agree Agree x 1
      • Mike69cuda

        Mike69cuda 64 is the new 17 FABO Gold Member

        Messages:
        934
        Likes Received:
        636
        Joined:
        Jan 2, 2018
        Location:
        Overland Park Kansas
        Local Time:
        7:35 AM
        My favorite way to troubleshoot battery drains is to use a small bulb like a dash light. Get one with leads. Unhook your positive battery cable and put one wire on the unhooked battery cable and the other one to the positive battery post.

        If you have a drain, the battery will light up. Unhook stuff till the light goes out.

        • Like Like x 3
        • 67Dart273

          67Dart273 Well-Known Member

          Messages:
          40,297
          Likes Received:
          7953
          Joined:
          Oct 14, 2010
          Location:
          Idaho
          Local Time:
          5:35 AM
          To add to this.......sometimes there are other things "on" or a large enough draw that the small dash lamp is very bright. Or the opposite, not enough to even light it.

          So.........what to do?

          Along with the dash lamp, also "rig" an old tail/ stop bulb and socket. This gives you several combinations. You can wire the two filaments in parallel (twist the tail/ stop wires together and use the lamp shell) for a large wattage test bulb

          Use the lamp shell and the stop filament for a slightly lower wattage,,

          Use the lamp shell and the tail filament for less yet,

          Or use the two wires and leave the shell unconnected, which pust the two filaments in series, for a 'smallest' wattage.

          AFTER you get the drain down to the dash lamp, or a "glowing" dash lamp, you can if you like, put your multimeter current (ammeter) in series with the ground, and find out how large the draw is.

          • Like Like x 2
          • Craig Burriss

            Craig Burriss Well-Known Member

            Messages:
            149
            Likes Received:
            69
            Joined:
            Aug 30, 2017
            Location:
            Statesboro Georgia
            Local Time:
            8:35 AM

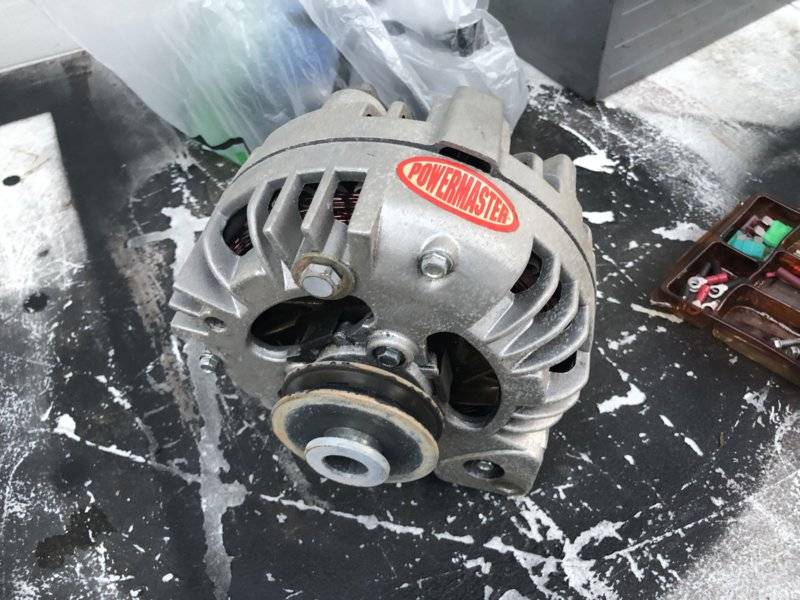

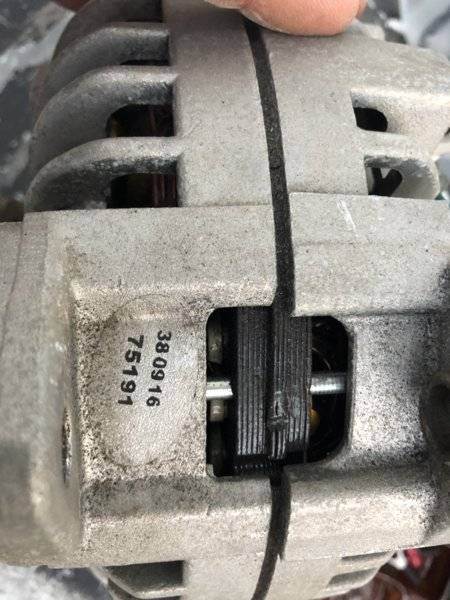

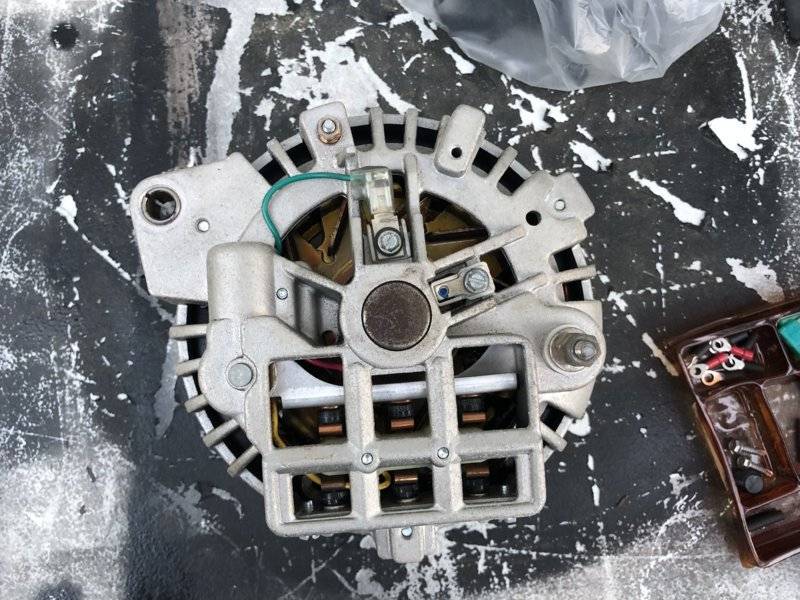

            Here’s my alternator. I’m trying to decide if I want to follow the guide that was previously posted on this thread or just send it in. The guy at Powermaster said if I sent it in they’d look over it and repair anything on it and just charge me for the parts. I tested it with an ohmmeter and it has continuity between the stud and case. If I were to open it up I don’t know what I’d do after that point.
            FFB46C87-AC8F-44E6-9F01-89CB91170AE7.jpeg AE709F27-B74E-4A8F-AB8F-F6B3071078FD.jpeg 8EF2DA19-AA93-4028-971C-5455AF0BDE3B.jpeg

          • Craig Burriss

            Craig Burriss Well-Known Member

            Messages:
            149
            Likes Received:
            69
            Joined:
            Aug 30, 2017
            Location:
            Statesboro Georgia
            Local Time:
            8:35 AM
            I tried this when my alternator was hooked up and it was glowing bright. When I disconnected the alt, it went out completely

          • Mike69cuda

            Mike69cuda 64 is the new 17 FABO Gold Member

            Messages:
            934
            Likes Received:
            636
            Joined:
            Jan 2, 2018
            Location:
            Overland Park Kansas
            Local Time:
            7:35 AM
            Looks like you found your problem.

          • 65Val

            65Val Average Length Member

            Messages:
            4,869
            Likes Received:
            867
            Joined:
            Oct 14, 2005
            Location:
            Victoria, BC, Canada, EH!
            Local Time:
            5:35 AM
            Hooking the 2 ammeter wires together will not fix your drain...all that does is take the ammeter out of the circuit, so you wouldn't have got the discharge indication on the ammeter at all.

            • Agree Agree x 2
            • Craig Burriss

              Craig Burriss Well-Known Member

              Messages:
              149
              Likes Received:
              69
              Joined:
              Aug 30, 2017
              Location:
              Statesboro Georgia
              Local Time:
              8:35 AM
              I know this now. Thanks

            • Mattax

              Mattax Just the facts, ma'am FABO Gold Member

              Messages:
              7,736
              Likes Received:
              4471
              Joined:
              Feb 7, 2013
              Location:
              Phila. Pa
              Local Time:
              8:35 AM
              Only when the engine is off.
              Understanding this^^^ will be key to setting up trouble free circuitry.

              Depending on how/when the fans will be running, may want to connect their power wire to a terminal stud from the alternator output.*
              Whether to use a stock or aftermarket ammeter in the battery feed/charge circuit depends on how frequently and how long electrical accessories will be run on battery. If the battery is going to be deep cycled, then neither the factory circuit or a regular automotive starting battery is going to be happy for long. I'm describing describing long periods of discharging (running fans or an amp with engine off) and then resulting recharge cycles where the battery is sucking over 20 amps for a minute or more.


              *Gray arrow pointing to a terminal stud used as a power distribution point.
              Notice the alternator, ammeter and 6 gage wires are by a 10 gage fusible link at the first terminal stud.
              Then the 10 gage and smaller wires and connections are protected by a 16 gage link (same as in a standard option wiring).
              If other circuits with smaller wires were added to that same stud, then they too need protection.

              This is the other important point in your circuit design.
              Protect the wiring with fuses, breakers, or fusible link based on the smallest wire or weakest link in the circuit.
              Use a link where short term, higher current loads are to be expected, but protection against a battery short to ground is needed.

              • Like Like x 1
              • Mattax

                Mattax Just the facts, ma'am FABO Gold Member

                Messages:
                7,736
                Likes Received:
                4471
                Joined:
                Feb 7, 2013
                Location:
                Phila. Pa
                Local Time:
                8:35 AM
                If not see the middle of this post
                Voltmeter low reading issue

              • dartfreak75

                dartfreak75 Restore it, Dont part it! FABO Gold Member

                Messages:
                5,534
                Likes Received:
                3742
                Joined:
                Aug 10, 2011
                Location:
                Virginia
                Local Time:
                8:35 AM
                Without reading all the comments here is my advice and I may get a bunch of disagrees but i dont care it happened to me in my dart. Check your trunk light. I kept getting dead batteries and I changed everything batteries alt coil etc nothing helped I finally got a battery disconnect switch and turned it off at night. It was a solution but never fixed the problem. One day I had been driving around and went to the store I had some bags in the trunk, when I got home I reached in to get my bags and the light burnt my arm! I was thinking why is that light so hot how could it be hot in 2 seconds that the trunk was open then it hit me. It was staying on all the time the little switch was stuck I replaced it and never had a dead battery again.

                • Like Like x 2
                • toolmanmike

                  toolmanmike FABO Staff Staff Member FABO Gold Member

                  Messages:
                  42,964
                  Likes Received:
                  26015
                  Joined:
                  Jan 18, 2006
                  Location:
                  Iowa
                  Local Time:
                  7:35 AM
                  Trunk and glove box lights were a problem when I worked at the Buick dealer back in the 80's. Good call

                  • Thanks! Thanks! x 1
                  • Craig Burriss

                    Craig Burriss Well-Known Member

                    Messages:
                    149
                    Likes Received:
                    69
                    Joined:
                    Aug 30, 2017
                    Location:
                    Statesboro Georgia
                    Local Time:
                    8:35 AM
                    My Duster isn’t fancy enough to have a trunk light. But I did have basically the same issue on one of my Miatas

                    • Like Like x 2
                    • Craig Burriss

                      Craig Burriss Well-Known Member

                      Messages:
                      149
                      Likes Received:
                      69
                      Joined:
                      Aug 30, 2017
                      Location:
                      Statesboro Georgia
                      Local Time:
                      8:35 AM
                      I think I’ve finally got my head wrapped around how the wiring works in these cars now. I went ahead and did the MAD bypass because of the horror stories I’ve read lately about the bulkhead connectors and factory ammeter melting (was able to neaten other wires in the process). I’ll just get an aftermarket ammeter when I make my new gauge cluster. Now that I have disconnected the alternator and done the bypass, everything is working and the battery no longer drains itself. Once I figure out what to do with my alternator I should be good to go.
                      Huge thanks to everyone that had input on this mess.

                    • Craig Burriss

                      Craig Burriss Well-Known Member

                      Messages:
                      149
                      Likes Received:
                      69
                      Joined:
                      Aug 30, 2017
                      Location:
                      Statesboro Georgia
                      Local Time:
                      8:35 AM
                      What I should’ve said is that the fans are connected to the large stud on the starter relay (this is where my alternator wire goes) and will only turn on when the key is to the on position and engine is up to 185. So as you have taught me, they draw from the alternator.

                    • Craig Burriss

                      Craig Burriss Well-Known Member

                      Messages:
                      149
                      Likes Received:
                      69
                      Joined:
                      Aug 30, 2017
                      Location:
                      Statesboro Georgia
                      Local Time:
                      8:35 AM
                      I just got my alternator back from Powermaster earlier today. I bolted it on the car and hooked it up, all of my battery draining issues are GONE.
                      Huge thanks to Powermaster because they repaired and updated my alternator. They didn’t charge me a dime, not even for the return shipping. And it was 2 years out of warranty!
                      And they included stickers!

                    • 65Val

                      65Val Average Length Member

                      Messages:
                      4,869
                      Likes Received:
                      867
                      Joined:
                      Oct 14, 2005
                      Location:
                      Victoria, BC, Canada, EH!
                      Local Time:
                      5:35 AM
                      Wow...great service!

                      • Agree Agree x 1
