    It depends on where it's set at. Factory spec is a little negative. Most people run as much positive as the control arms will allow. You need to start somewhere. A good alignment shop might be the best place. They might get it on the rack and look it over and decide it needs to go to the body shop for some frame machine time. You may not get charged much for an initial check.

  2. kursplat

    kursplat FABO Gold Member FABO Gold Member

    Messages:
    3,751
    Likes Received:
    2637
    Joined:
    Aug 24, 2010
    Location:
    so cal
    Local Time:
    7:07 PM
    so something may have loosened up. need to remeasure everything

  3. Dana67Dart

    Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

    Messages:
    5,605
    Likes Received:
    3589
    Joined:
    Jul 16, 2017
    Location:
    Northern Colorado
    Local Time:
    8:07 PM
    In your photo on post 34 it looks like the outside of the tire is flush with the outside of the lip. In my photo post 55 my tire is like 2 + inches inboard.

    • Agree Agree x 1
    • MRGTX

      MRGTX Well-Known Member

      Messages:
      1,904
      Likes Received:
      738
      Joined:
      Sep 24, 2007
      Location:
      CT, USA
      Local Time:
      9:07 PM
      First...this car is gorgeous. It’s worth any trouble that it will take to get it right...and this IS fixable.

      Second, I would focus on making it drivable just to get it to an alignment shop. That is going answer all of your questions.

      Assuming the whole car isn’t bent, the factors affecting your fender clearance are going to be wheel offset (too negative), tire height, and caster adjustment.

      Before you mess with any of that, check to make sure your fender brace is adjusted all the way out. There’s a slotted hole at one end of that rod that may give you a little more clearance.

      If that doesn’t do the job, pull some caster out of it. The means of adjusting that are detailed on the forums but it might be just one degree too much on one side that is causing the contact.

      What are the specs on your wheels, by the way? I’m almost certain that (as others have said) you may need more offset/less backspace. The fact that it fits on the driver’s side may actually be evidence of a problem on that side...maybe you have some screwed up negative camber over there?

      IIRC, your particular body style is one of the most restrictive in terms of fender clearance on that front corner. Look up @autoxcuda . He knows his stuff and has done some good work on making his car run some aggressive tires...but he had to trim that corner to make that happen. Your stock-ish front tires shouldn’t require that kind of mod but he may be able to help.

      Last edited: Jul 2, 2020
      • Like Like x 1
      • autoxcuda

        autoxcuda Well-Known Member

        Messages:
        6,715
        Likes Received:
        952
        Joined:
        Apr 6, 2007
        Local Time:
        7:07 PM

        67-69 Barracuda’s don’t have a fender stabilizing rod in front of the tire bottom of front fender lip. Mopars with front valences typically don’t get those. Because the valence supports the fender.

        67-69 darts, Duster’s, 73-up Dart sports, Valiants, 73-Darts all don’t have front lower valences.

        I wouldn’t get too alarmed over side to side difference in clearance he showed in those pictures. Especially if the cars not aligned yet.

        Reason is, theres so many variables that can cause that. Mostly a common fender bender.

        And, if the car is not aligned yet, you really have to attempt that and ask for as much caster as possible. Go to a place that aligns older cars.

        Those older aftermarket one piece rims typically push the tire out compared to stock rims. That really kills things.

        Things that could move the tires back:

        1) Offset upper control arm bushings Moog 7103 installed for most caster. If you have stock UCA’s and non offset bushings currently. This will push the UCA back.

        2) One poly strut rod bushing per side In rear position. Thicker than rubber bushing and will push the LCA back. If you put a poly bushing in front position you may not be able to get the safety cotter pin installed.

        2a) OR adjustable lower strut rods

        3) As much caster as possible

        4) same width rims with 1/2” or greater backspace than now.

        IMHO, I’d do 1-3 first if you really like those rims.

        Last edited: Jul 2, 2020
        • Like Like x 2
        • ratvon

          ratvon Well-Known Member

          Messages:
          364
          Likes Received:
          42
          Joined:
          Aug 21, 2010
          Location:
          central ohio
          Local Time:
          10:07 PM
          The car was already aligned this all started when the driver side flubbed the top of the fender so I thought I would crank the lower controll arms up to get it away drive it in have it aligned the the passenger side caught!
          I think the easiest fix would to just run something like a 235/60/14 on the front
          My rims are 14x6 with 3.5 back space that should be plenty.

        • autoxcuda

          autoxcuda Well-Known Member

          Messages:
          6,715
          Likes Received:
          952
          Joined:
          Apr 6, 2007
          Local Time:
          7:07 PM
          Yes.

          Those are tractor inter-tubes up front.

          • Like Like x 1
          • ratvon

            ratvon Well-Known Member

            Messages:
            364
            Likes Received:
            42
            Joined:
            Aug 21, 2010
            Location:
            central ohio
            Local Time:
            10:07 PM
            Tractor inner tubes?

          • autoxcuda

            autoxcuda Well-Known Member

            Messages:
            6,715
            Likes Received:
            952
            Joined:
            Apr 6, 2007
            Local Time:
            7:07 PM
            Inner tubes

            Just teasing... they have a lot of side wall.

          • ratvon

            ratvon Well-Known Member

            Messages:
            364
            Likes Received:
            42
            Joined:
            Aug 21, 2010
            Location:
            central ohio
            Local Time:
            10:07 PM
            Think something like that would look odd?

          • autoxcuda

            autoxcuda Well-Known Member

            Messages:
            6,715
            Likes Received:
            952
            Joined:
            Apr 6, 2007
            Local Time:
            7:07 PM
            When I look at the tire comparator the 235 adds .7” to width and takes .8” off diameter.

            So split those two in half and the tire moves back .4 and out .35. And you are hitting the tire turned at an angle. So going back near the same as out cancels each other out .

            Something like 215/65/14 or 225/60/14 AND something else.

            IMHO moving the tire away 1/2” more than now is not enough to protect a new paint job like that.

            What was the caster spec from the alignment you got?

            What strut rod bushings do you have?

          • autoxcuda

            autoxcuda Well-Known Member

            Messages:
            6,715
            Likes Received:
            952
            Joined:
            Apr 6, 2007
            Local Time:
            7:07 PM
            No.

            If you are worried about the tire being too small to fill the wheel well, paint the inside well area black.

            Right now it looks deceiving the gap between the fender lip and tire is big. The factory always painted the wells black. It helps visually.

            • Like Like x 1
            • ratvon

              ratvon Well-Known Member

              Messages:
              364
              Likes Received:
              42
              Joined:
              Aug 21, 2010
              Location:
              central ohio
              Local Time:
              10:07 PM
              Never got anything from the alignment shop , they've been doing my cars for year and I never questioned it . The bushings were the poly bushings. What kind of clearance should there be up front like 2 inches?
              205 /60/14 looks better ,I used the poly bushings, didnt get anything from the alignment shop, with what I've ,I did in the past the caster isn't going to give you a whole lot. When I had the k frame out I replaced every bushing, and adjustable strut rods only give you an 1/8 th inch. There's no slop in the k frame holes like b bodies have. Every thing looks good nothing bent , I'm overlooking something it's just a matter of stepping back having patience and go through everything
              To me that's the key, process of elimination, check and recheck and patience not giving up. I dont like to just change parts I gotta know exactly why and I use all resources and input from everyone. That's what's great about these forums that we didn't have 30 years ago

            • autoxcuda

              autoxcuda Well-Known Member

              Messages:
              6,715
              Likes Received:
              952
              Joined:
              Apr 6, 2007
              Local Time:
              7:07 PM

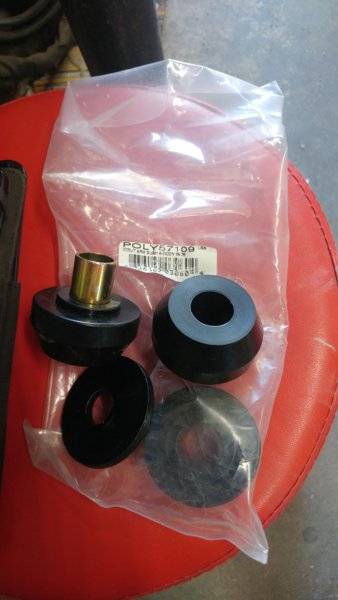

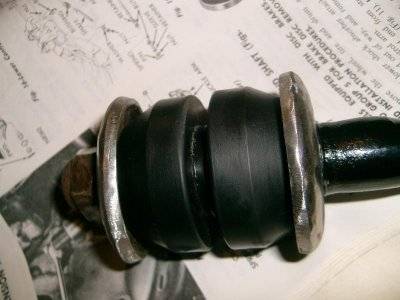

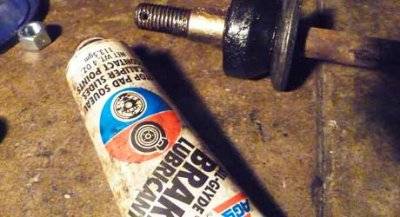

              The poly strut bushings like these push the lower control arm back a little vs the stock rubber ones.




              I think stock 14x6 backspacing is 4”. So your 3.5 is pushing the tire out .5” toward fender

              You need to get an alignment printout for every alignment you pay for.

              Would have to see alignment sheet and pics of each UCA cam bolt to see if there’s any more adjustment left.


              • Agree Agree x 1
              • diymirage

                diymirage HP@idle > hondaHP@redline

                Messages:
                22,172
                Likes Received:
                17844
                Joined:
                Oct 12, 2012
                Location:
                michigan
                Local Time:
                10:07 PM
                did I read you converted to discs up front?
                that might add to your track, and change the amount of ideal backspacing

              • Dana67Dart

                Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

                Messages:
                5,605
                Likes Received:
                3589
                Joined:
                Jul 16, 2017
                Location:
                Northern Colorado
                Local Time:
                8:07 PM
                IIRC front disc (KH 4 piston) adds 1/2 inch to each side outward.

                This is the back spacing of stock 5.5 x 14 steel wheels.


                Back space measured both ways.(same wheel)

                IMG_20200703_185345.jpg IMG_20200703_185312.jpg IMG_20200703_185356.jpg IMG_20200703_185327.jpg

              • pomonamissel

                pomonamissel Well-Known Member

                Messages:
                1,965
                Likes Received:
                997
                Joined:
                May 21, 2015
                Location:
                san jose , ca
                Local Time:
                9:07 PM
                i made the fender braces longer to flare the bottom of the fender wheel opening a bit . helped that issue on my a bodies . those are 225/70-14's on the nose and butt . its kh disc's as well . 5.5 steels . they didn't rub or grab . DCP01191.JPG

              • pomonamissel

                pomonamissel Well-Known Member

                Messages:
                1,965
                Likes Received:
                997
                Joined:
                May 21, 2015
                Location:
                san jose , ca
                Local Time:
                9:07 PM
                this duster was 205/70-14 on a 7's with ssbc disc's . DSC00370.JPG

              • Dana67Dart

                Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

                Messages:
                5,605
                Likes Received:
                3589
                Joined:
                Jul 16, 2017
                Location:
                Northern Colorado
                Local Time:
                8:07 PM
                Your photo looks like the outside of the widest part of the tire is outside of the wheel well, which makes me go back to too little back spacing.

                Post a photo with the wheels pointing straight ahead, put a straight edge on the widest part of the tire up and down and show the gap between the top of the fender lip and the straight edge.

              • MerlinsMopar

                MerlinsMopar FABO Gold Member FABO Gold Member

                Messages:
                368
                Likes Received:
                394
                Joined:
                Jun 6, 2014
                Location:
                Middletown Pa
                Local Time:
                10:07 PM
                Too big! Period. Backspace is wrong. Rims need to be right. Cut the fenders and it'll work fine .lol..
                All the input will make it right!

              • autoxcuda

                autoxcuda Well-Known Member

                Messages:
                6,715
                Likes Received:
                952
                Joined:
                Apr 6, 2007
                Local Time:
                7:07 PM
                Your Dart and Duster have braces at the bottom of the front fender dogleg. Without them the dogleg would flap around down the front.

                Barracuda and 70-72 Dart have lower front valences that the front fender dog leg bolts to. 2 bolts on a 67-69 Barracuda. That keeps the front fender lip from being pushed out easily.

              • autoxcuda

                autoxcuda Well-Known Member

                Messages:
                6,715
                Likes Received:
                952
                Joined:
                Apr 6, 2007
                Local Time:
                7:07 PM
                Thank you for the rim measurement.

                He’s running 6” wide rims with what seems like same backspacing. So the tire edge will be pushed out a little more. Like 1/4”.

                I thought the big bolt 73-76 disk setup pushed the rims out. Not sure it’s 1/2”, but pushes them out.

                Somethings gotta change to get more clearance: alignment, tires, rim...

              • my68barracuda

                my68barracuda Well-Known Member

                Messages:
                1,545
                Likes Received:
                1236
                Joined:
                Dec 6, 2009
                Location:
                Indianapolis IN
                Local Time:
                10:07 PM
                I don’t know if it would help this situation but a person could put a washer between the valence and lower fender dog leg and that would push the lower front fender lip out. The washer would cause the seam to open slightly.

              • autoxcuda

                autoxcuda Well-Known Member

                Messages:
                6,715
                Likes Received:
                952
                Joined:
                Apr 6, 2007
                Local Time:
                7:07 PM
                Could be a little gain. Would have to try it.

              • Dana67Dart

                Dana67Dart Like a fine wine, only getting better with age! FABO Gold Member

                Messages:
                5,605
                Likes Received:
                3589
                Joined:
                Jul 16, 2017
                Location:
                Northern Colorado
                Local Time:
                8:07 PM
                Something just doesn't look right. My 205s on stock 5.5 wheels buldge slot. His tires look like they don't buldge at all, but his tire looks like it is way farther out. Like the back spacing is 2 to 3 vs 3 to 4.

                There are many ways to measure back spacing (BS) so i wonder if his measured BS is actually smaller than reported.

                If the tire was inboard more it would miss the fender easy

                I would like to see photos of the wheel / tire to the upper controler arm.

                • Agree Agree x 1
